Built-in Fan Version
Embedded Outdoor Advertising Display 49 Inch 2500 Nits IP65 for Public Information
Sensors:Light sensor,temperature sensor Temperature Control System:Precise air conditioner Front Panel:Toughened glass or acrylic,High transparency Protection Glass:6mm AR safe glass
Specifications
- SKU
- ZXTLCD-OUTFHE490P
49 Inch Embedded Outdoor Advertising Display for Compact Exterior Information Points
A 49-inch screen fills the space between small service displays and large architectural media walls. This 49 Inch Embedded Outdoor Advertising Display can be built into an exterior cabinet, wall or custom information structure where viewers approach at close range.
The image shows a beige horizontal surround and a wide display area. Its comparatively restrained size is useful when the screen must share the wall with signage, doors or architectural features.
49 Inch Outdoor landscape embedded digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | ELED |
Display size(mm) | 1074*604 | |
Display ratio | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 1500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤400W | |

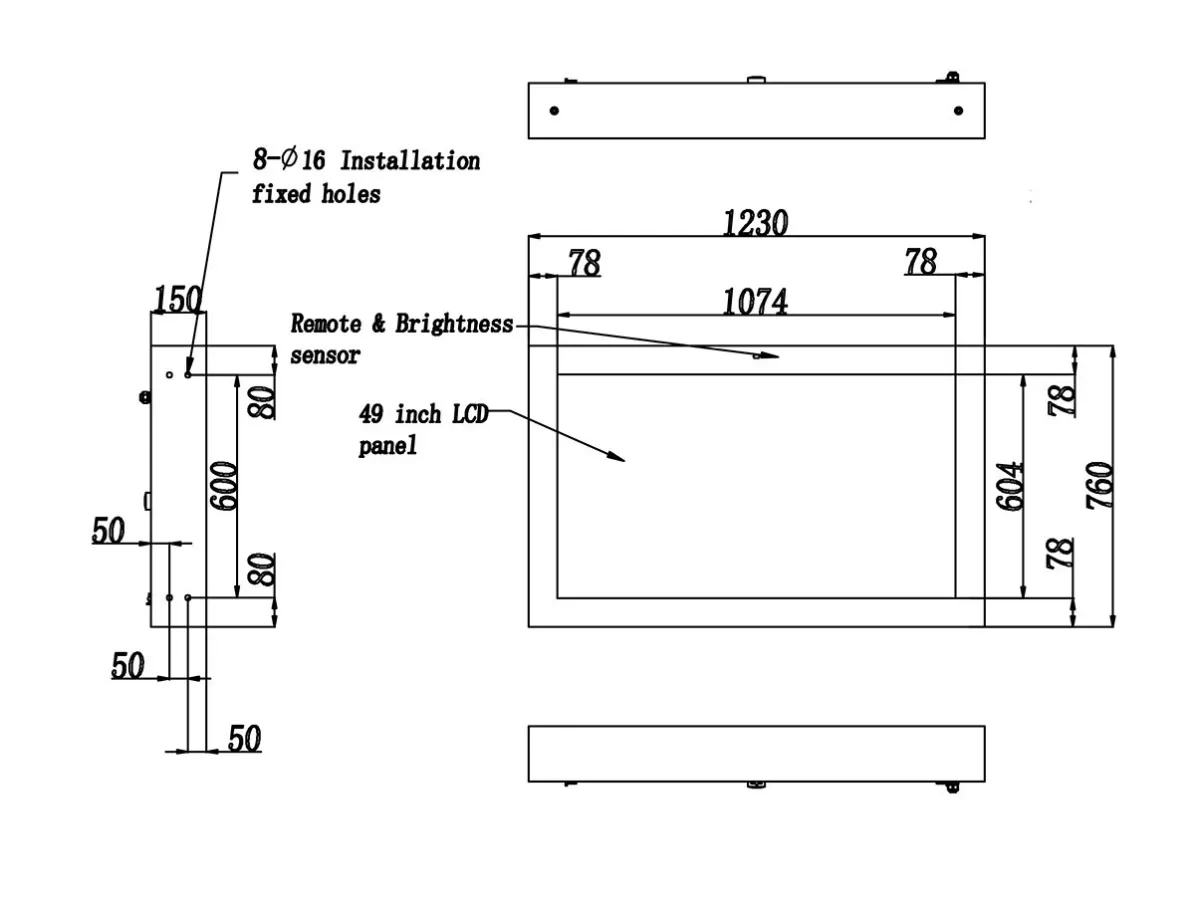

Mechanical Para | Machine seize H*W*D(mm) | 760*1230*150 |
Net weight(Kg) | 70 | |
Package size H*W*D(mm) | 960*1530*300 | |
Gross weight(Kg) | 100 | |
Content for a Focused Viewing Point
This format is well suited to one clearly defined location:
- Entrance information
- Outdoor reception instructions
- Local public announcements
- Visitor maps
- Opening hours
- Event schedules
The screen should answer the questions people are likely to ask at that exact position. General promotional content can be included, but it should not hide practical information.
Check Viewing Height Before Fabrication
The 49 Inch Embedded Outdoor Advertising Display may be installed too high if the opening is planned only from an elevation drawing. The contractor should mark the proposed screen area on site and review it from normal pedestrian distance.
If maps or QR codes are used, viewers must be able to approach closely without standing in a vehicle lane or blocking an entrance.
Fan Cooling Inside a Host Structure
This product combines 2500-nit brightness, IP65 protection and built-in fan cooling. The host enclosure must provide sufficient clearance for airflow and maintenance.
Cable connections should remain inside the protected installation area. Exposed adapters or ordinary indoor sockets can compromise an otherwise suitable outdoor installation.
The 49 Inch Embedded Outdoor Advertising Display is a practical choice when a project needs a durable digital information point but does not have the scale or viewing distance required for a much larger display.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
