Built-in Fan Version
High Brightness Outdoor LCD Display 43 Inch Embedded for Retail Windows
Surface:Spraying,frosted aluminum Control method:IR controller, Android Windows OS Sensors:Light sensor,temperature sensor Temperature Control System:Precise air conditioner
Specifications
- SKU
- ZXTLCD-OUTFHE430O
43 Inch Embedded Outdoor LCD Display for Street-Facing Retail Windows
A display integrated into the storefront can look more intentional than a separate kiosk placed on the pavement. This 43 Inch Embedded Outdoor LCD Display is designed for retailers that want digital campaign content incorporated into an exterior window surround, wall panel or pickup-area fixture.

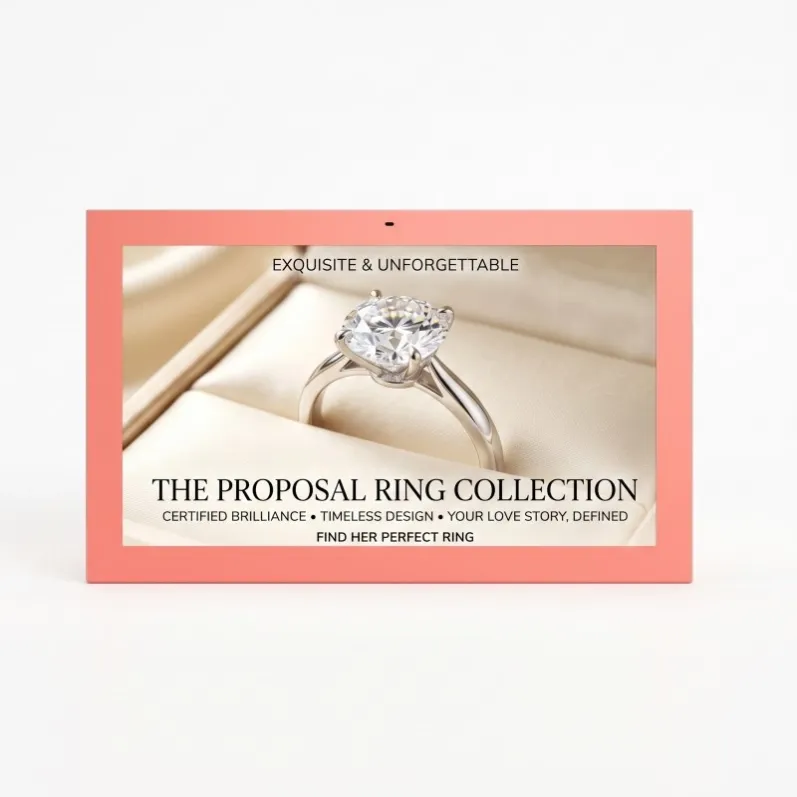

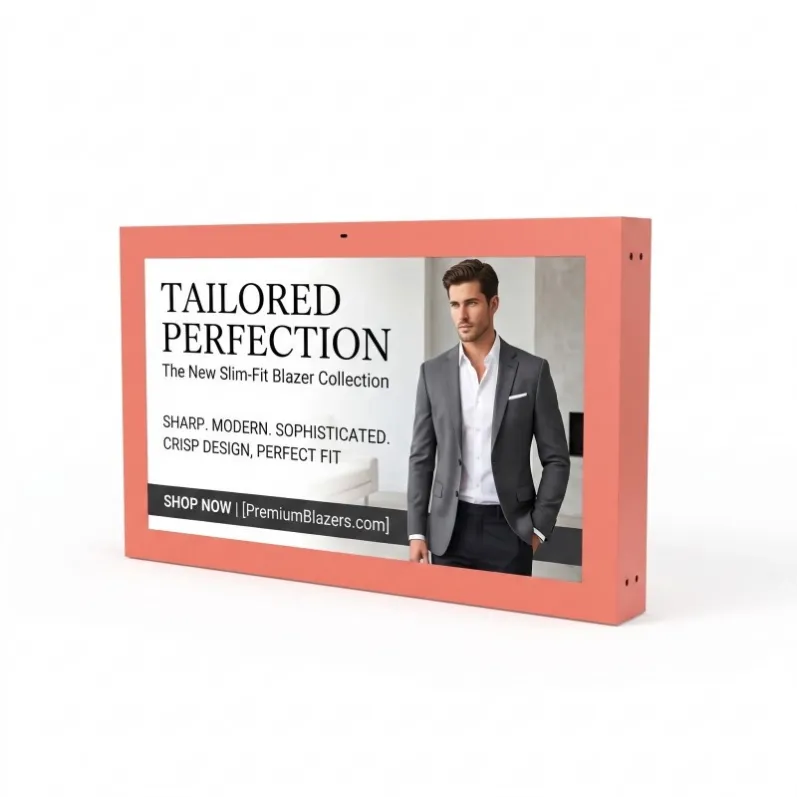

The product image shows a slim landscape display with a pale frame and red detailing. The light exterior can blend into a retail façade more easily than a large black advertising cabinet.
43 Inch Outdoor landscape embedded digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | ELED |
Display size(mm) | 941*530 | |
Display ratio | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 1500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||

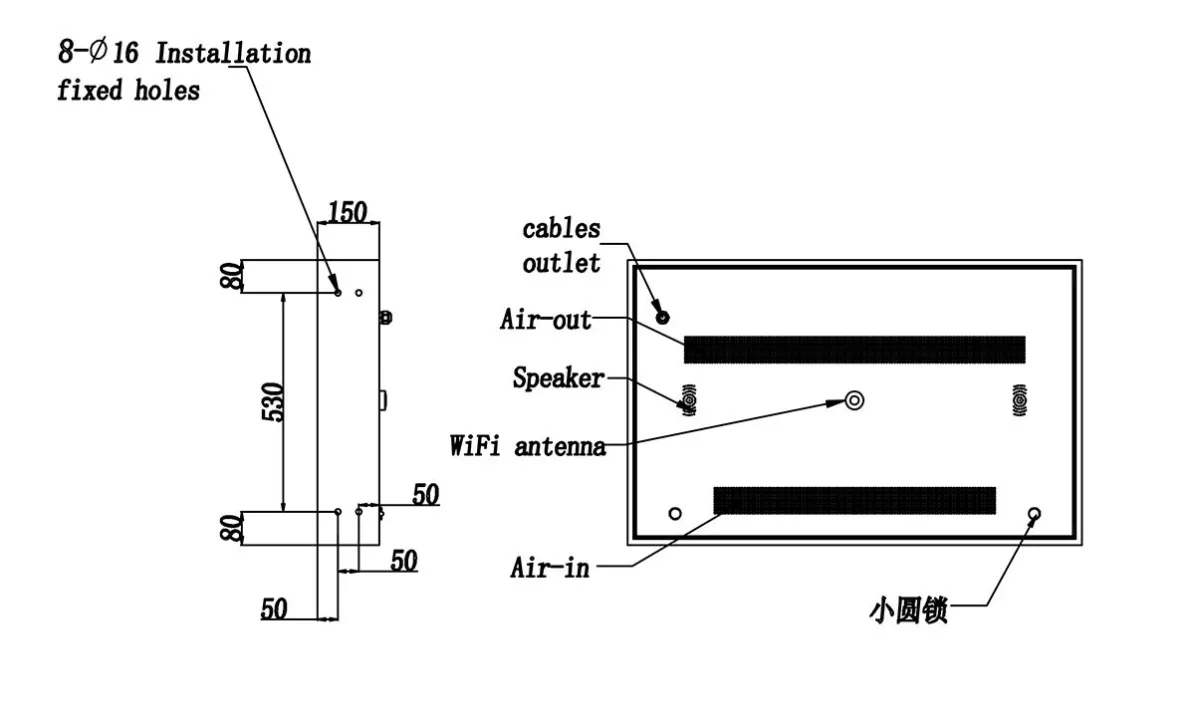

Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤300W | |

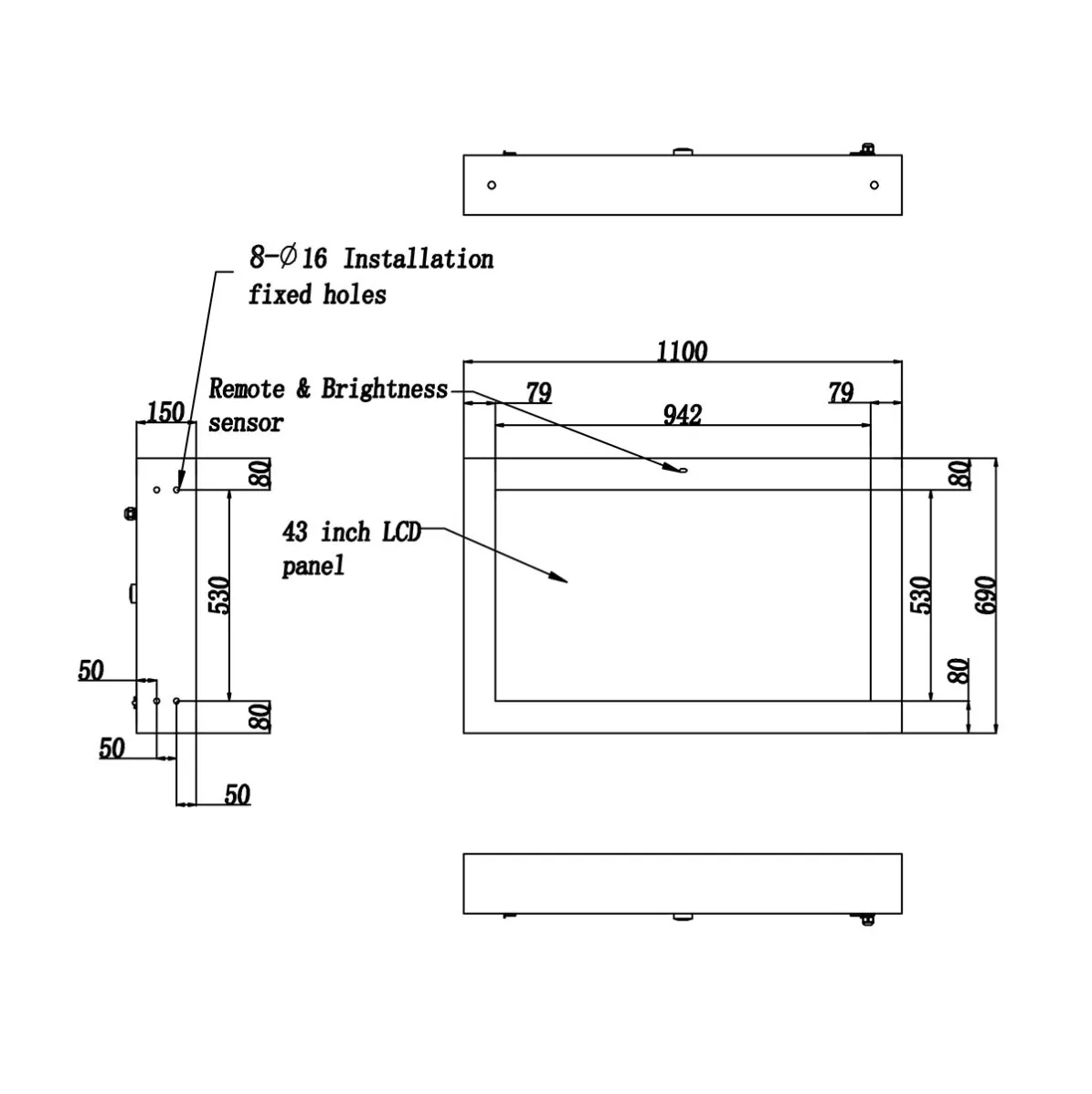

Mechanical Para | Machine seize H*W*D(mm) | 690*1100*150 |
Net weight(Kg) | 65 | |
Package size H*W*D(mm) | 890*1400*300 | |
Gross weight(Kg) | 90 | |
Use the Screen Near the Product or Service
The display may introduce merchandise presented in the adjacent window, explain an outdoor collection process or promote an offer available immediately inside the store.
Good applications include:
- Product launch highlights
- Click-and-collect instructions
- Restaurant pickup information
- Store opening hours
- Seasonal retail offers
- Directions to another entrance
The 43 Inch Embedded Outdoor LCD Display is intended for relatively close viewing, so campaigns can include slightly more detail than a large roadside screen. Text still needs to remain clear under daylight.
Match the Screen to the Storefront Finish
The trim, mounting depth and surrounding materials affect the final appearance. Before production, retailers should confirm cabinet colour and visible frame dimensions using actual colour references.
The screen opening should align with surrounding panels and leave no uneven gaps where dirt and water can accumulate.
Maintenance Without Disassembling the Storefront
High brightness, IP65 protection and fan cooling support outdoor operation. However, the installation must provide access to internal components and ventilation areas.
The 43 Inch Embedded Outdoor LCD Display should be removable without dismantling a large section of finished cladding. That requirement belongs in the storefront drawings before fabrication begins.
