Weatherproof Digital Signage 75 Inch Vertical Air Conditioning for Retail Windows
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Air Conditioner
Specifications
- SKU
- ZXTLCD-OUTAV750W
75 Inch Air Conditioned Vertical Weatherproof Digital Signage for Exterior Retail Windows
The product image shows a light cyan freestanding cabinet with a tall portrait screen and a restrained perimeter. Its appearance is suited to full-height campaign graphics rather than compact service information.
This 75 Inch Air Conditioned Vertical Weatherproof Digital Signage model is listed with 2500-nit brightness, IP65 protection and built-in air conditioning.
75 Inch Outdoor Wall-Mounted Vertical Digital Signage with Air Conditioning specification | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | Direct LED type |
Display dimension | 1651*929mm | |
Display ration | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Life time | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||

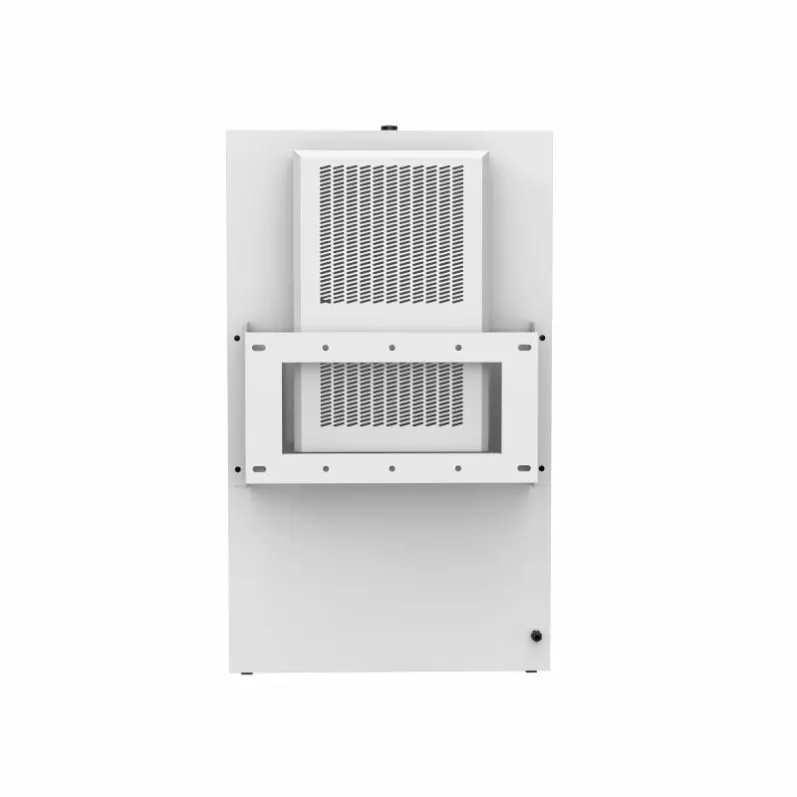

Built-in Air conditioner for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust internal temperature |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | -40℃～55℃ |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | 1320W | |

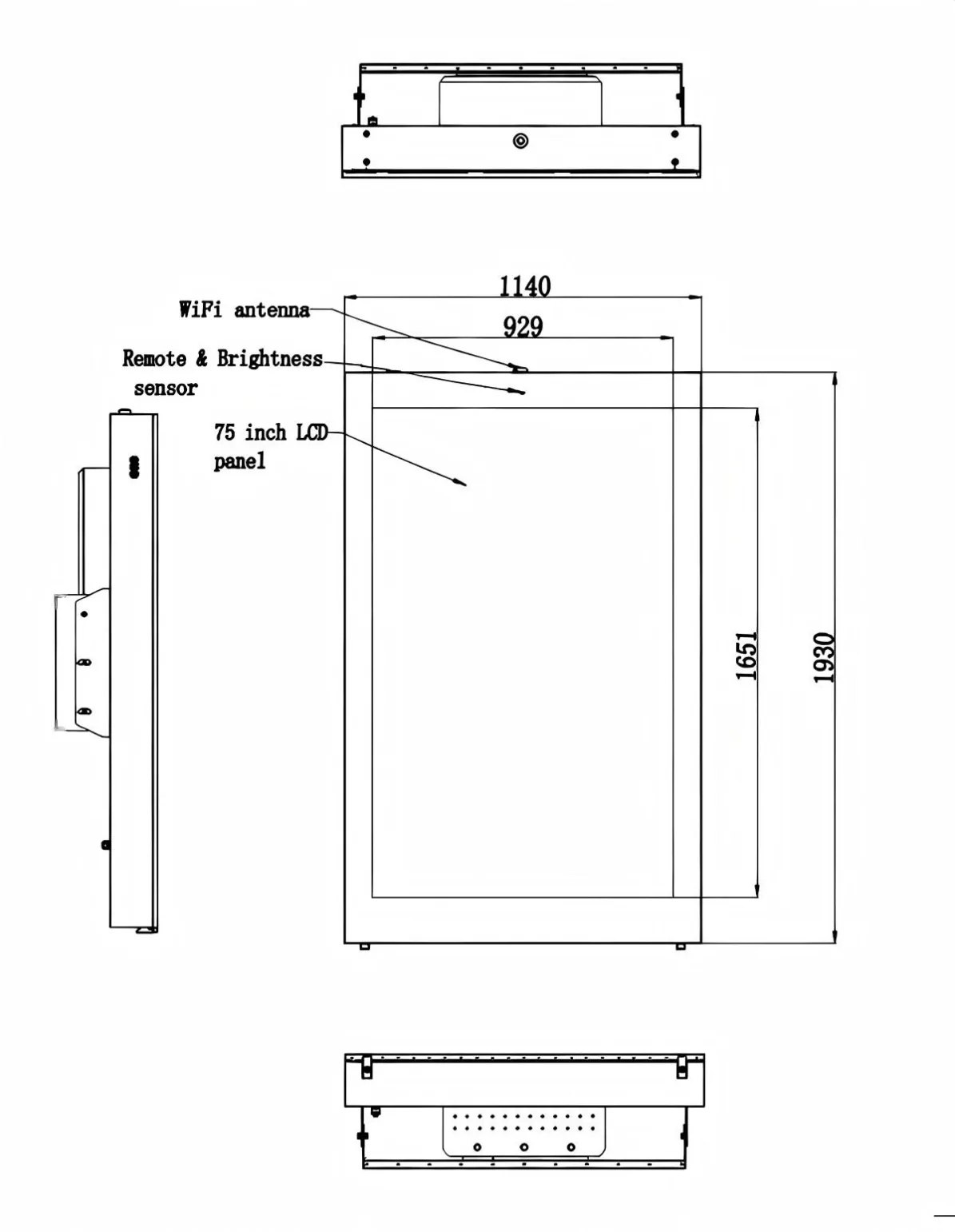

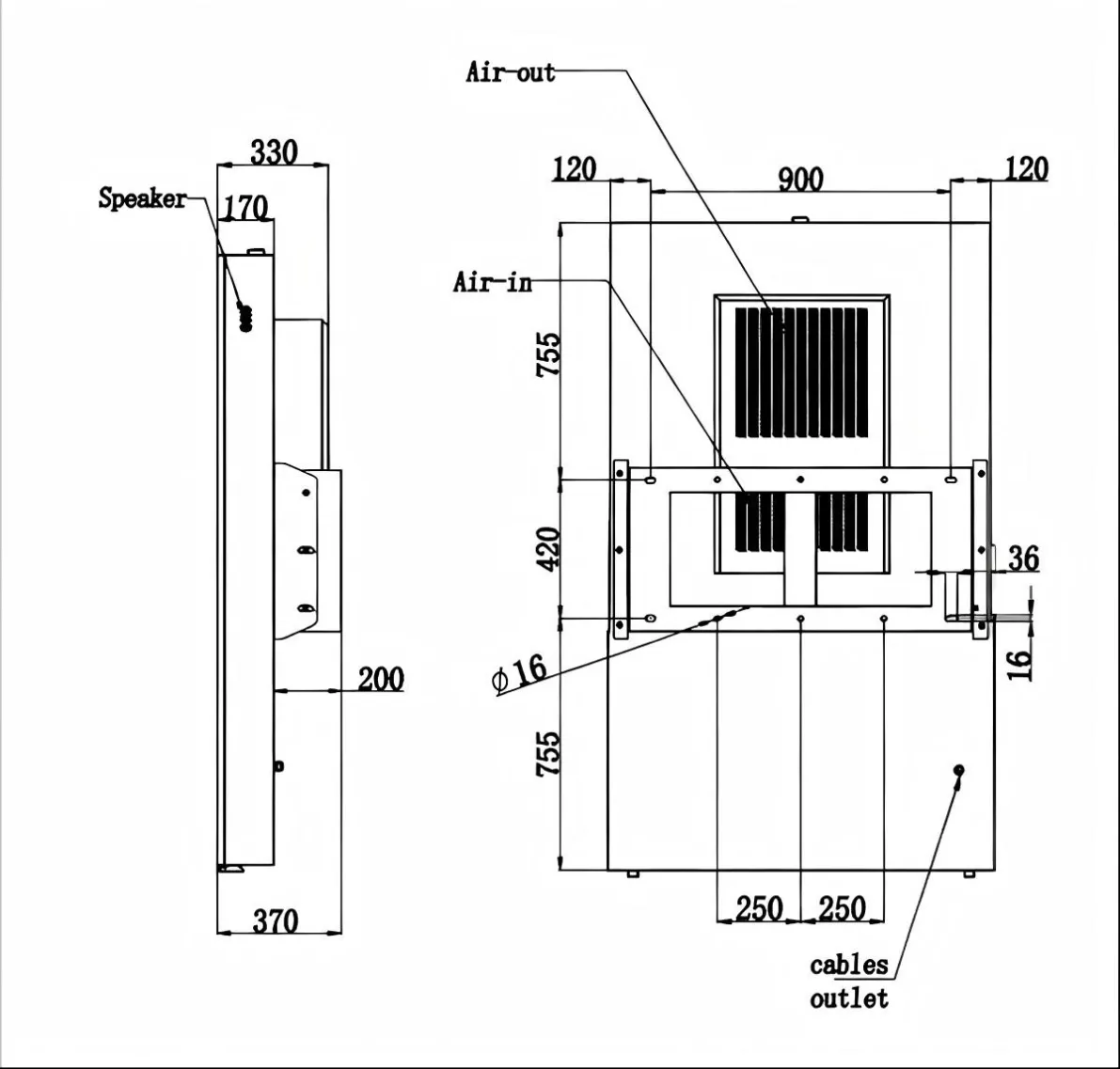

Mechanical parameters | Whole device dimension H*W*D | 1930*1140*170mm |
Whole device net.weight | 210kg | |
Package dimension H*W*D | 2160*1290*520mm | |
Gross packing | 250kg | |
Building a Campaign Around Height
The portrait screen can show fashion photography, product launches, entertainment promotions and directions to an outdoor-facing store.
Large content should remain simple. One strong image, a short headline and one action normally perform better than several small offers.
Light Cabinet, Large Physical Presence
The pale cyan body shown in the image can reduce the visual heaviness of a tall cabinet near glass storefronts or open-air retail architecture.
The cabinet still requires a prepared foundation, structural anchoring and maintenance clearance. Color and coating must be confirmed using the production specification.
Managing Heat Near Retail Glass
Exterior glazing can increase reflections and local heat around the display. The built-in air conditioner actively manages internal cabinet temperature, but its final capacity and operating limits should be verified.
The 2500-nit screen supports daylight visibility. IP65 protection helps defend against dust and water jets.
The 75 Inch Air Conditioned Vertical Weatherproof Digital Signage format is designed for outdoor retail sites that need large portrait campaigns and more active internal thermal control.
