Built-in Air conditioner
High Brightness Outdoor Advertising Display 32 Inch Wall Mounted for Retail Windows
Sensors:Light sensor,temperature sensor Temperature Control System:Precise air conditioner Front Panel:Toughened glass or acrylic,High transparency Protection Glass:6mm AR safe glass
Specifications
- SKU
- ZXTLCD-OUTAHW320B
32 Inch Wall Mounted Outdoor Advertising Display for Retail Storefronts
Some storefront messages only need to reach people standing a few steps from the entrance. Opening hours, collection instructions and a single promotional offer do not require a large floor-standing kiosk. This 32 Inch Wall Mounted Outdoor Advertising Display provides a compact exterior communication point while keeping the pavement and doorway clear.
The product image shows a small landscape screen in a neutral, light-coloured frame. Its restrained rectangular appearance can integrate beside a retail entrance, exterior service counter or street-facing window without hiding the physical merchandise display.
32 Inch Outdoor horizontal wall-mounted display with air-cooling specification | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size(mm) | 697*392 | |
Display ratio | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||

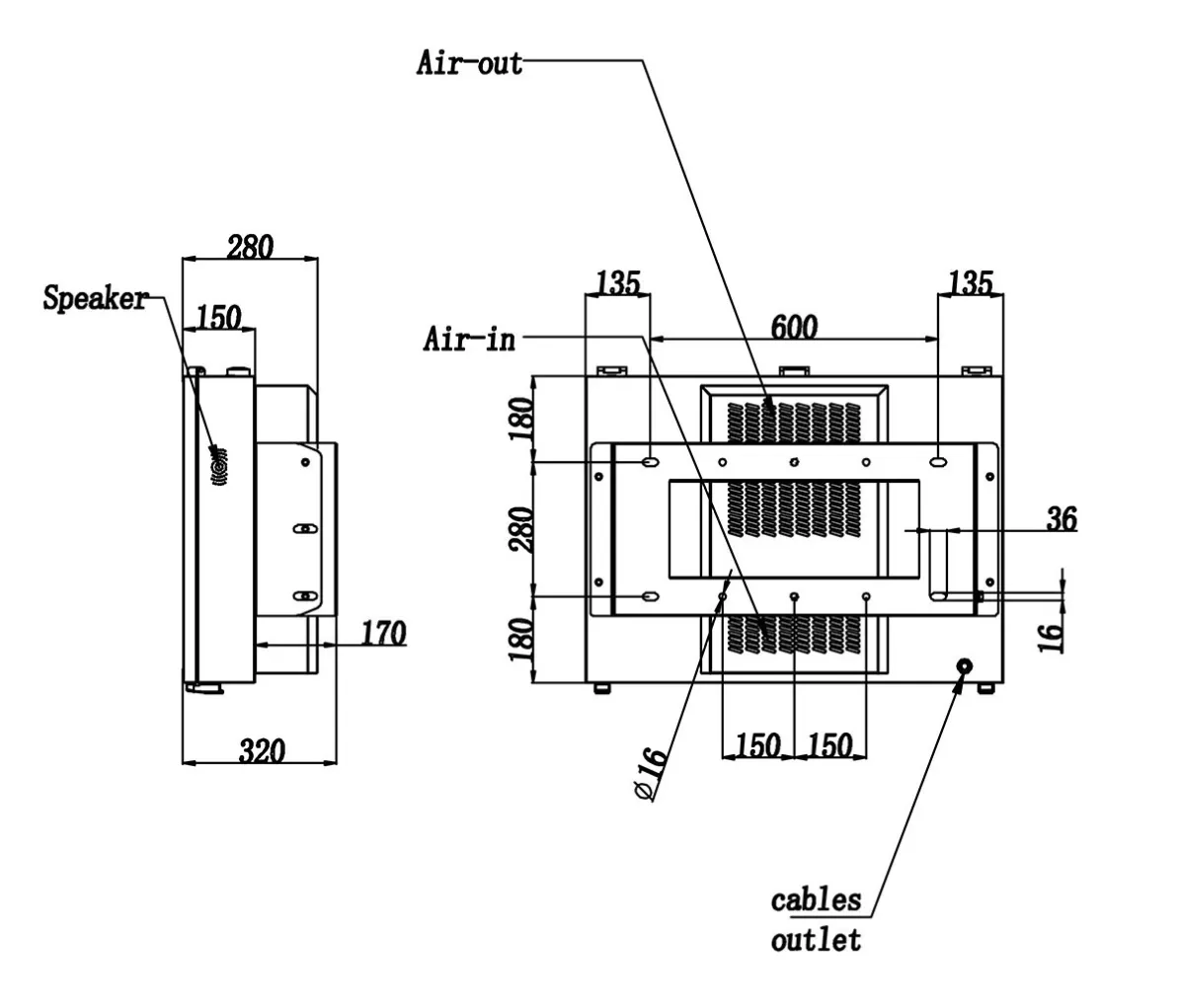

Built-in Air conditioner for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust internal temperature |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤230W | |

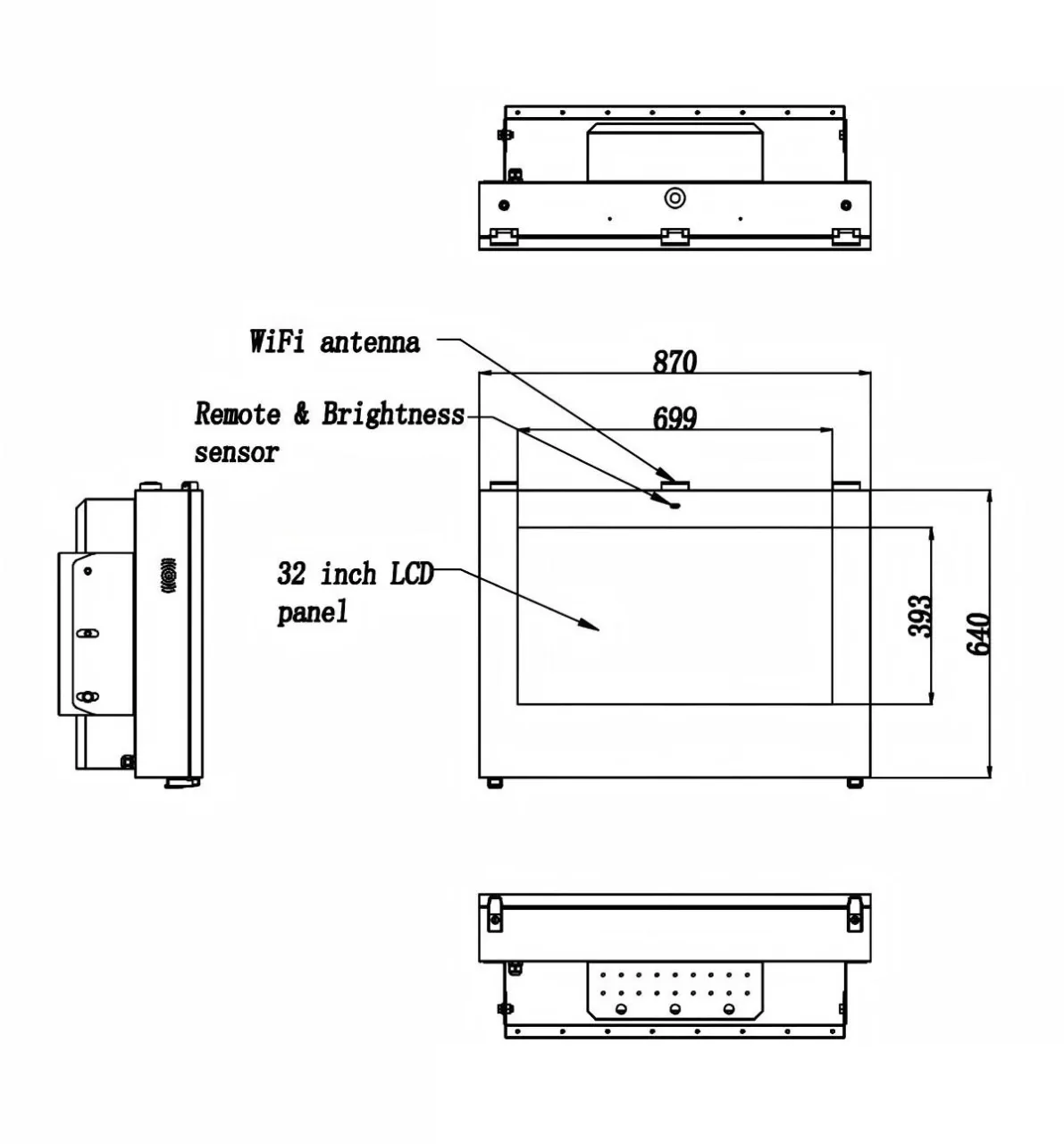

Mechanical Para | Machine seize H*W*D(mm) | 870*560*150 |
Net weight(Kg) | 45 | |
Package size H*W*D(mm) | 830*1210*300 | |
Gross weight(Kg) | 65 | |
Begin with the Position, Not the Screen Size
A 32-inch screen works best where customers naturally slow down. Suitable positions include:
- Beside the main store entrance
- Near an outdoor pickup window
- Above an exterior service counter
- Between two sections of window merchandising
- On a wall facing a short pedestrian approach
- Near a restaurant takeaway point
It is less suitable for advertising that must be read across a car park or from a moving vehicle. In those environments, a larger screen and longer sightline would be needed.
One Screen Should Complete One Retail Task
The 32 Inch Wall Mounted Outdoor Advertising Display should carry focused content rather than a compressed product catalogue.
A practical daily playlist could include:
Before opening
Store hours, opening countdown or collection instructions.
During trading
One featured product, current campaign or in-store event.
Near closing
Next-day opening time, online ordering or membership information.
Each page should contain one main image and a short message. Small descriptions, multiple prices and several unrelated products will be difficult to read outdoors.
Coordinate the Screen with the Physical Window
Digital content should introduce or extend the nearby window presentation. If the window contains a new product collection, the screen can show the campaign name, launch date or one key product benefit.
The screen should not be mounted directly over the most valuable physical display area simply because electrical access is convenient. Customer approach direction, sightline and the relationship between digital and physical merchandising should be reviewed together.
Preparing the Wall Installation
Before purchasing the 32 Inch Wall Mounted Outdoor Advertising Display, the site contractor should check:
- Wall material and structural strength
- Anchor and bracket specification
- Cabinet depth and service clearance
- Power and network cable route
- Drainage from the wall or canopy above
- Normal customer viewing height
- Screen angle relative to sunlight
Decorative cladding may need reinforcement behind the finished surface. The mounting system should transfer the product weight to an appropriate structural layer.
Content Management for One Store or Many
A single store may update content through a local media player. Retail chains will benefit from remote scheduling, location groups and approval permissions.
Central control can distribute the main campaign while allowing individual stores to add local opening hours or pickup instructions. This prevents each location from creating unrelated layouts while keeping essential information accurate.
The 32 Inch Wall Mounted Outdoor Advertising Display is not intended to compete with large-format outdoor billboards. Its strength is delivering current, relevant information at the final point before a customer enters or collects an order.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
