Wall Mounted Weatherproof Digital Signage 43 Inch 2500 Nits IP65 for Public Information
Front Panel:Toughened glass or acrylic,High transparency Protection Glass:6mm AR safe glass Installation:Floor standing or customized
Specifications
- SKU
- ZXTLCD-OUTAHW430BL
43 Inch Wall Mounted Outdoor Information Display for Public Entrances
Public buildings often need to publish changing information beside an entrance but do not have enough pavement space for a kiosk. This 43 Inch Wall Mounted Outdoor Information Display creates a compact digital notice point on an existing exterior wall.

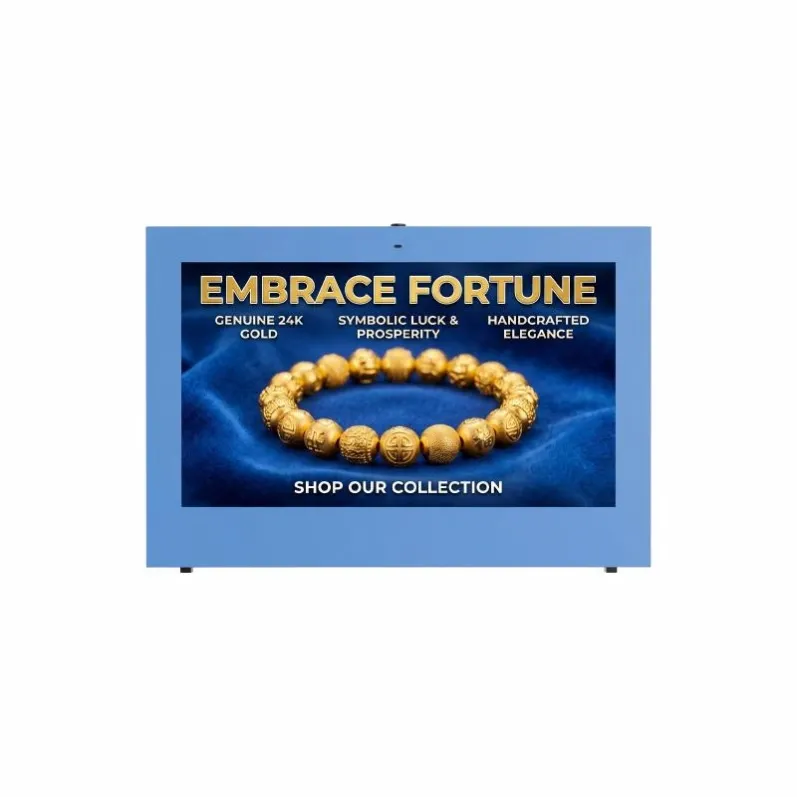

The product image shows a light blue landscape enclosure. Its restrained appearance can suit libraries, clinics, community centres and municipal-service entrances.
43 Inch Outdoor horizontal wall-mounted display with air-cooling specification | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | ELED |
Display size(mm) | 941*530 | |
Display ratio | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 1500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Air conditioner for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust internal temperature |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤300W | |
Mechanical Para | Machine seize H*W*D(mm) | 1150*740*150 |
Net weight(Kg) | 70 | |
Package size H*W*D(mm) | 1010*1300*300 | |
Gross weight(Kg) | 95 | |
Replace the Notice That Changes Most Often
The screen does not need to digitize every sign around the building. Begin with information that requires frequent replacement:
- Opening and closing times
- Appointment instructions
- Temporary entrance changes
- Public-event notices
- Service interruptions
- Emergency contacts
Long policies can remain on the website and be linked through a QR code.
Installation Review
The 43 Inch Wall Mounted Outdoor Information Display requires a structural mounting surface and a safe viewing position. The screen should not force visitors to stand in front of an opening door or vehicle route.

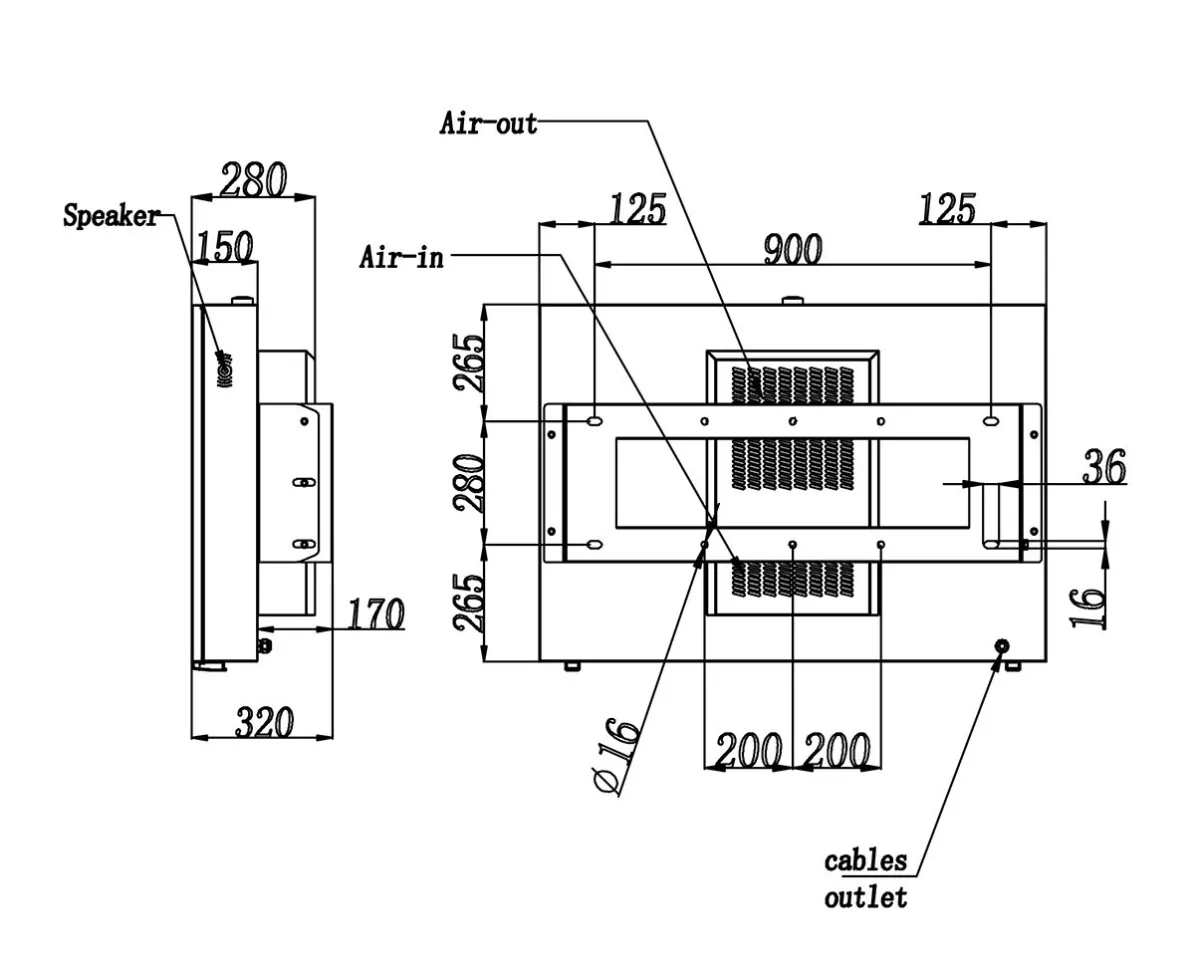

The project drawing must show cable entry, bracket fixing, service clearance and water drainage above the enclosure.
Active Cabinet Cooling
The backend lists this product as a built-in air-conditioner version. The system must remain accessible for filter inspection and technical service.
The 43 Inch Wall Mounted Outdoor Information Display is a practical choice when information changes frequently but the site cannot accommodate another freestanding outdoor structure.
