Wall Mounted Weatherproof Digital Signage 65 Inch 2500 Nits IP65 for EV Charging Ads
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Air Conditioner
Specifications
- SKU
- ZXTLCD-OUTAVW650R
65 Inch Air Conditioned Wall Mounted Weatherproof Digital Signage for EV Sites
The product image shows a dark vertical screen with a red perimeter and no ground-standing base. Its cabinet is intended to be carried by an exterior wall or engineered support rather than anchored as a freestanding kiosk.
This 65 Inch Air Conditioned Wall Mounted Weatherproof Digital Signage model is classified in the backend as a built-in air-conditioner version. It is also listed with 2500-nit brightness and IP65 protection.
65 Inch Outdoor Wall-Mounted Vertical Digital Signage with Air Conditioning specification | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | Direct LED type |
Display dimension | 1429*804mm | |
Display ration | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Life time | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |

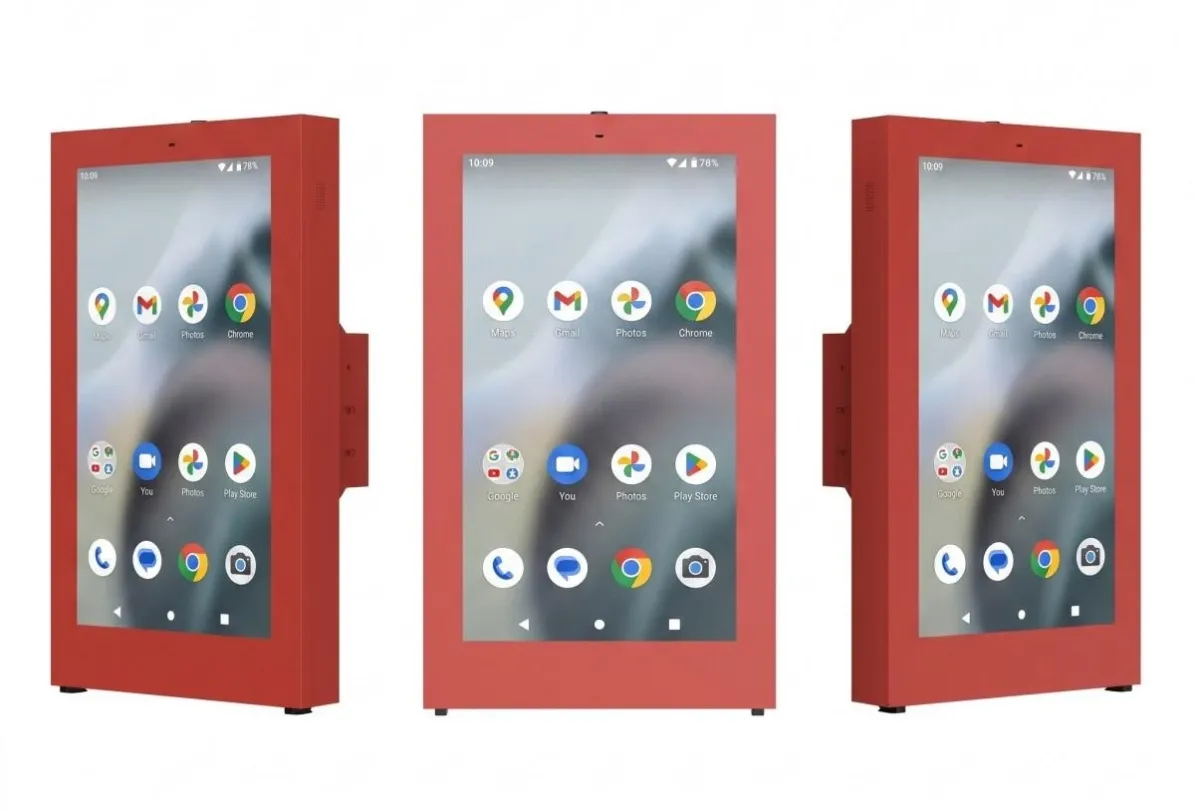

Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |

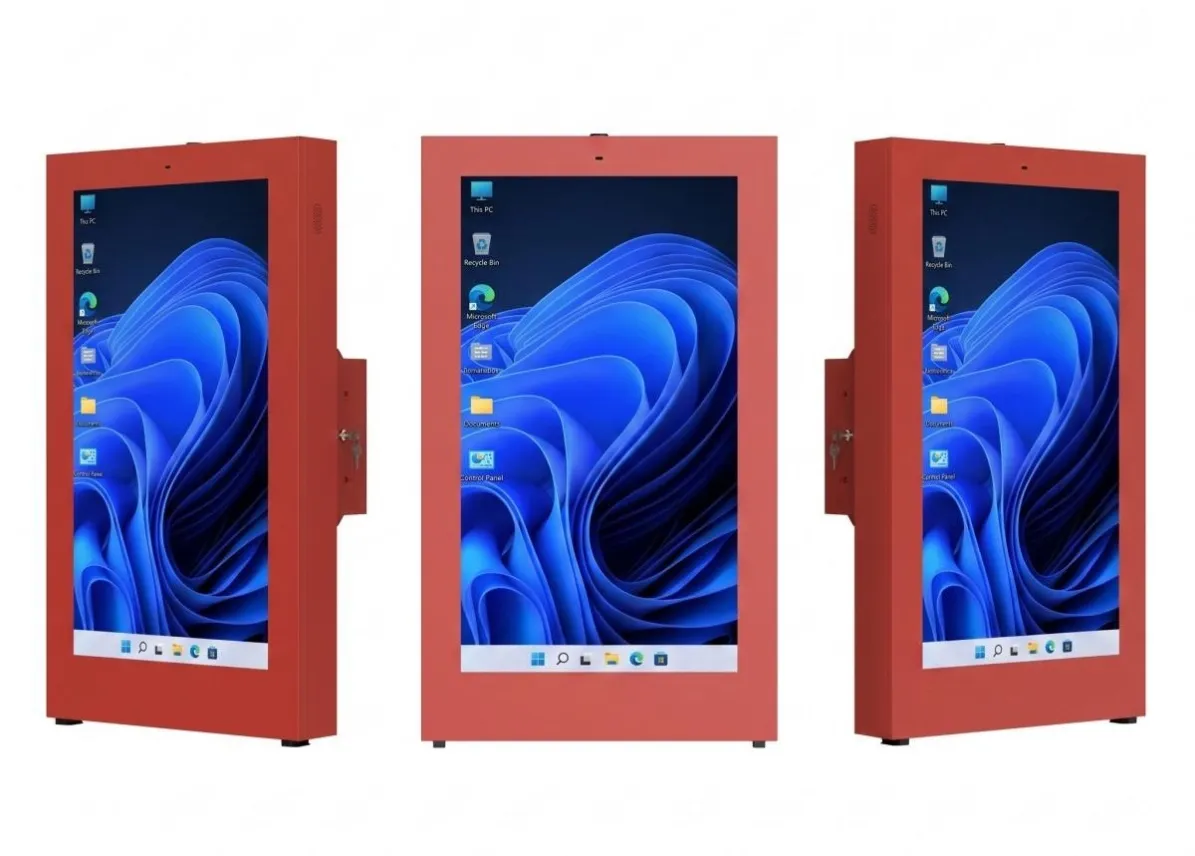

Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||

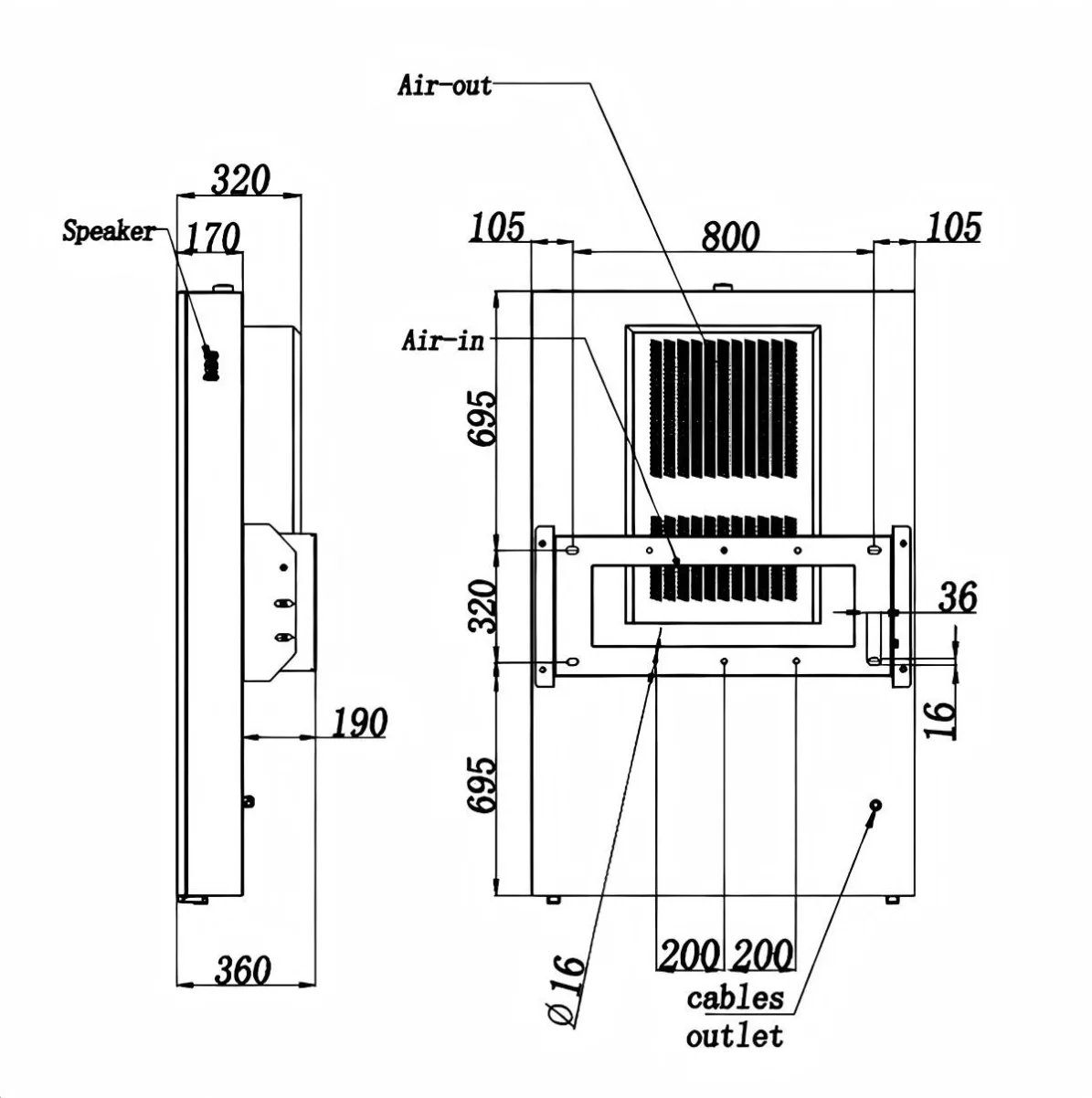

Built-in Air conditioner for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust internal temperature |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | -40℃～55℃ |
Working humidity | 5%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | 1130W | |

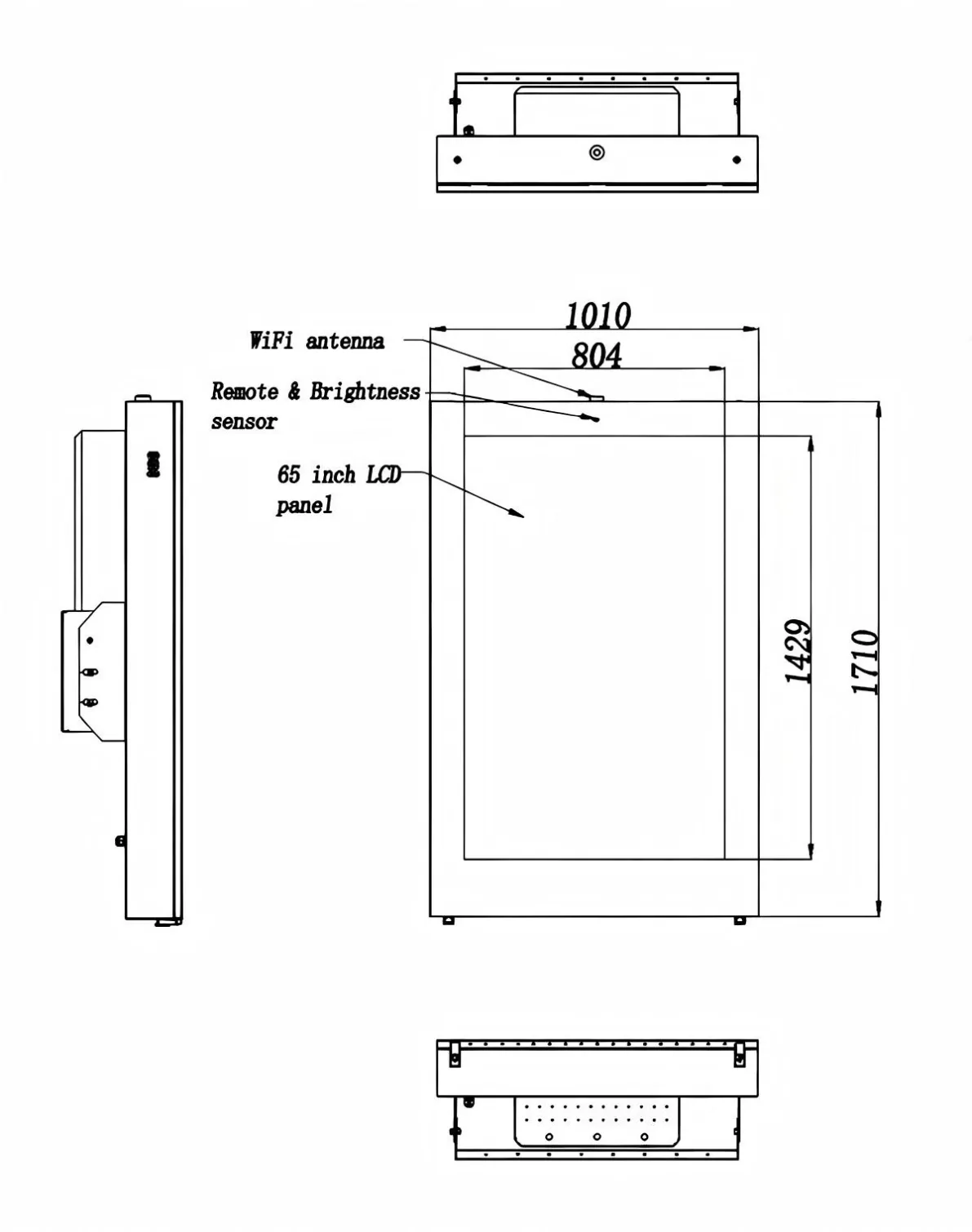

Mechanical parameters | Whole device dimension H*W*D | 1710*1010*170mm |
Whole device net.weight | 140kg | |
Package dimension H*W*D | 1940*1160*510mm | |
Gross packing | 175kg | |
Preserving Ground Space Around Charging Bays
Outdoor EV sites require clear areas for vehicles, cables and accessible movement. Wall mounting can place advertising and site information above or beside the charging area without adding another cabinet to the pavement.
Suitable mounting structures may include an exterior service-building wall, an engineered charging canopy or a purpose-built outdoor media frame.
The screen should not be attached directly to decorative cladding without structural verification.
Cabinet Appearance and Site Identity
The image shows a narrow red border around a dark display face. This may coordinate with an EV network or retail brand while keeping visual focus on the content.
Final cabinet color and coating must be confirmed. The red edge should not be confused with emergency or prohibited-area markings used at the site.
Active Cabinet Cooling
The built-in air conditioner provides more active internal temperature management than a standard circulation fan. Exact cooling capacity, supported ambient-temperature range and service intervals should be obtained from the final specification.
The mounting design needs to preserve air paths and allow technicians to access the cooling system safely.
Appropriate Content
The screen can show nearby outdoor services, support information, safety notices and advertising. Live charging data requires compatible software and charger integration.
The 65 Inch Air Conditioned Wall Mounted Weatherproof Digital Signage unit is intended for projects that need medium-to-large outdoor visibility without sacrificing ground space around charging equipment.
