Built-in Fan Version
Outdoor LCD Display 43 Inch Vertical Fan Cooling for Bus Station Wayfinding
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTVE430LP
43 Inch Vertical Outdoor LCD Display for Outdoor Bus Wayfinding
The product image shows a slim pink freestanding cabinet with a narrow vertical screen. Its compact body is visually lighter than the large 75- and 98-inch transport displays and is better suited to passenger information viewed from a short distance.
This 43 Inch Vertical Outdoor LCD Display is specified with 2500-nit brightness, IP65 protection and built-in fan cooling.
43 Inch Outdoor portrait displays embedded digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | ELED |
Display size(mm) | 941*530 | |
Display ratio | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 1500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |

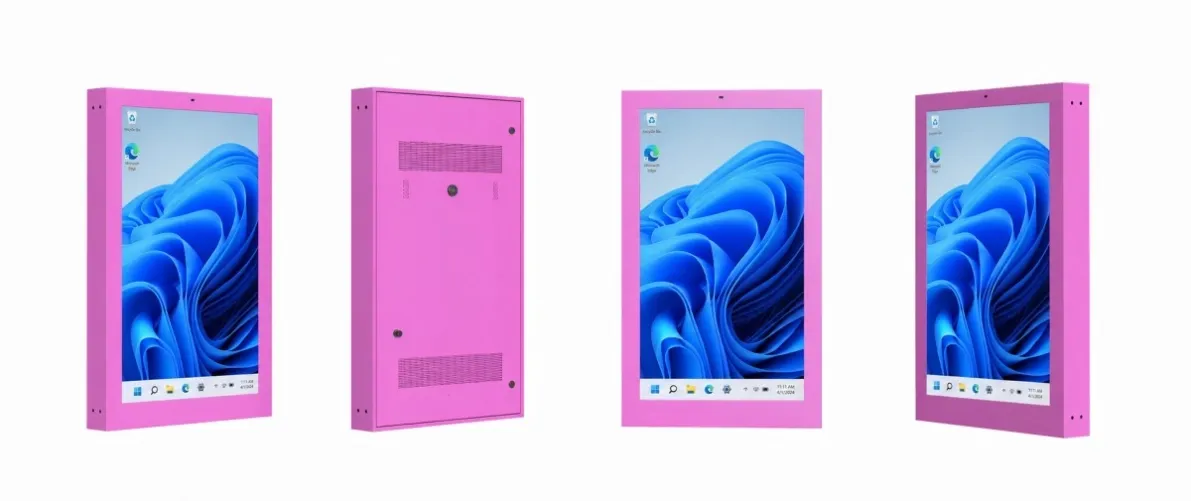

Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||

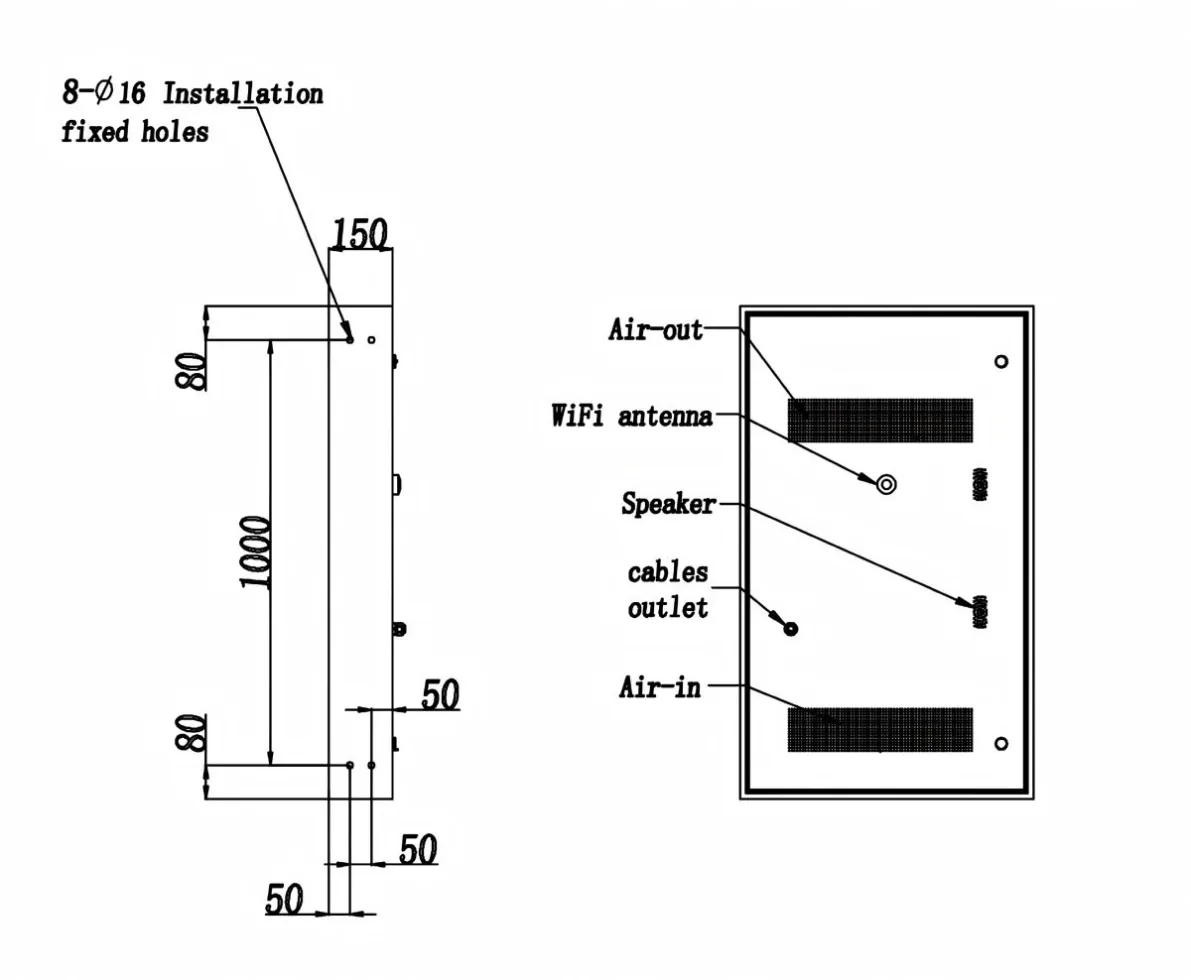

Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤300W | |

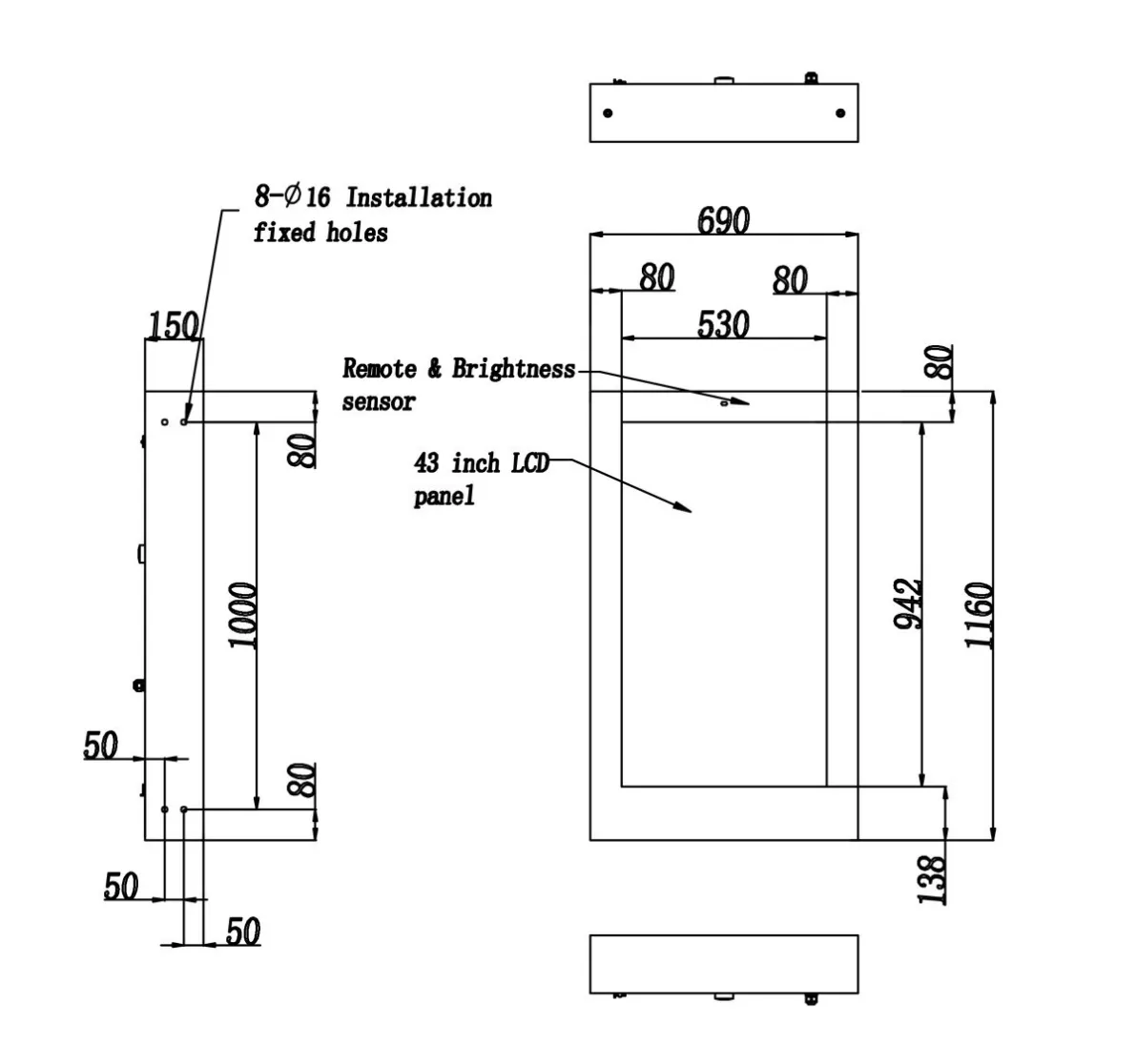

Mechanical Para | Machine seize H*W*D(mm) | 690*1100*150 |
Net weight(Kg) | 65 | |
Package size H*W*D(mm) | 890*1400*300 | |
Gross weight(Kg) | 90 | |
Where a Compact Outdoor Screen Works
The display can be placed near an open-air station entrance, outdoor bus bay, roadside transfer point or pedestrian decision area.
It should not be expected to provide long-distance visibility across a large terminal. Its strength is presenting simple information to passengers who naturally pass close to the screen.
Useful content includes:
- Directional arrows
- Stop or bay numbers
- Short service notices
- Outdoor station maps
- Walking connections
- Local-area advertising
A Distinctive Slim Cabinet

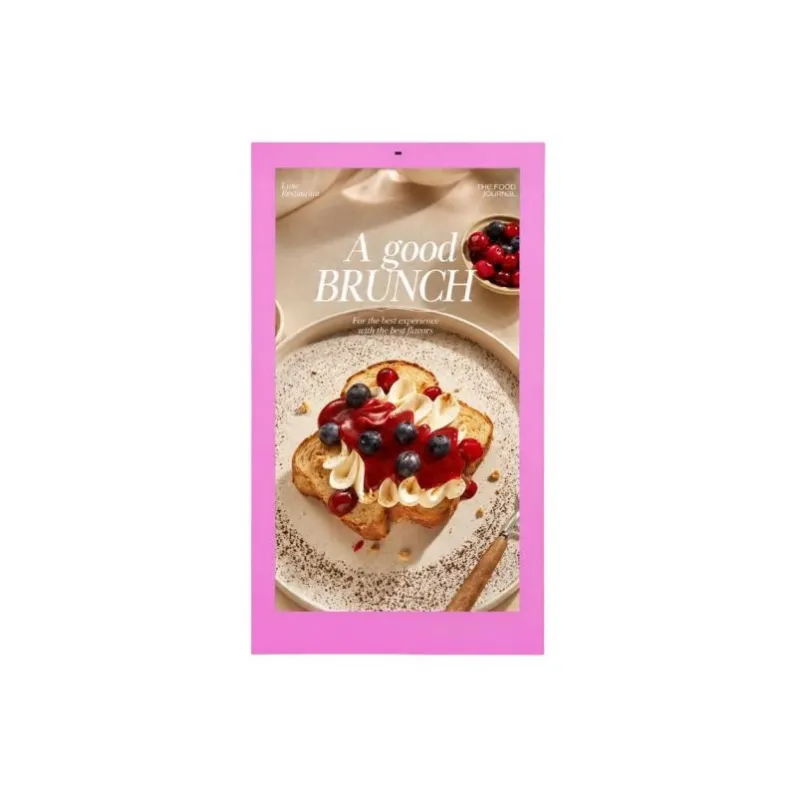

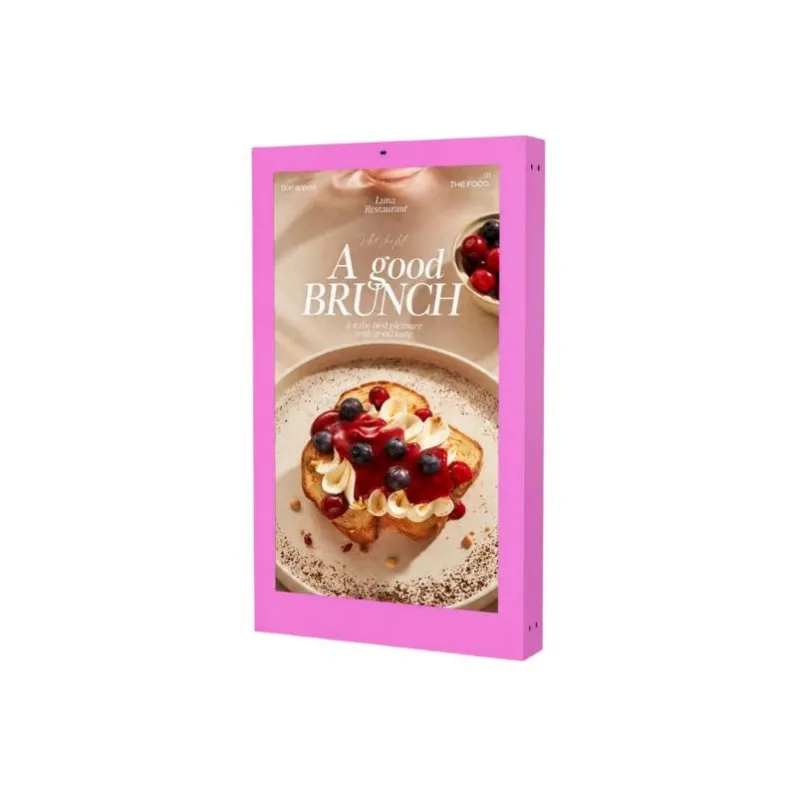

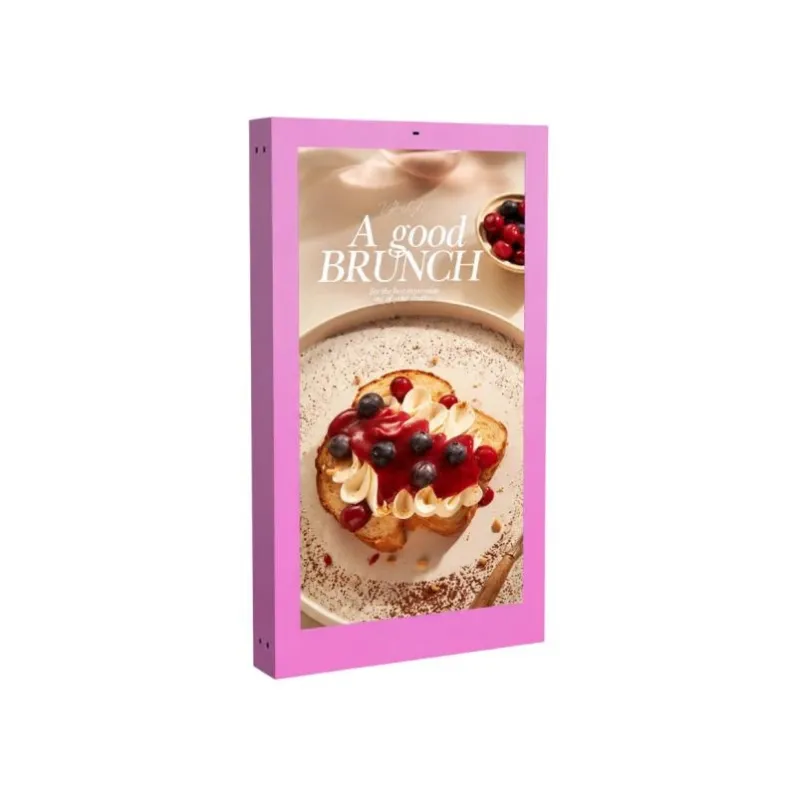

The image shows a pink enclosure with a simple upright form. This can make the display easy to identify within an outdoor passenger area or support a color-coded route system.
Color should never be the only wayfinding method. Text, route numbers and symbols must remain clear for all passengers.
The image does not confirm standard color availability. Cabinet finish and outdoor coating should be specified before production.
Daylight and Transport Exposure
The 2500-nit panel supports viewing in outdoor ambient light. Both daytime sun and nighttime glare should be assessed.
IP65 protection helps protect against dust and water jets. Roadside dust can affect fan-cooling air paths, so routine inspection should be planned.
The cabinet must remain outside vehicle sightlines, accessible routes and emergency movement areas.
The 43 Inch Vertical Outdoor LCD Display provides a compact wayfinding point for outdoor bus facilities where passengers view information from relatively close range.
