Built-in Fan Version
Outdoor Digital Signage for 65 Inch Smart City Media, 2500 Nits IP65 Fan Cooling
Installation:Floor standing or customized Network:WIFI / LAN / 3G / 4G Optional Resolution:1920*1080 / 3840*2160 Operating system:Android / Windows os
Specifications
- SKU
- ZXTLCD-OUTFHE650R
65 Inch Outdoor Smart City Display for Location-Specific Communication

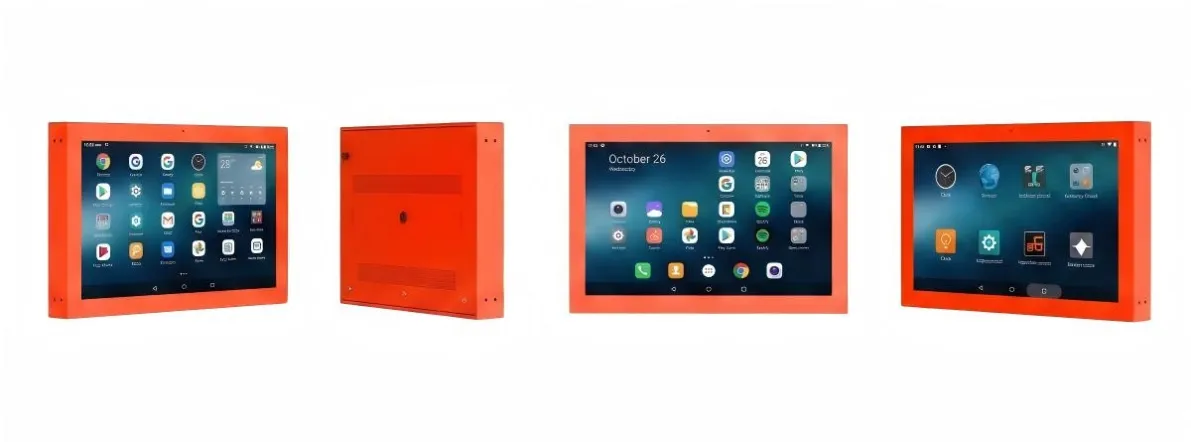

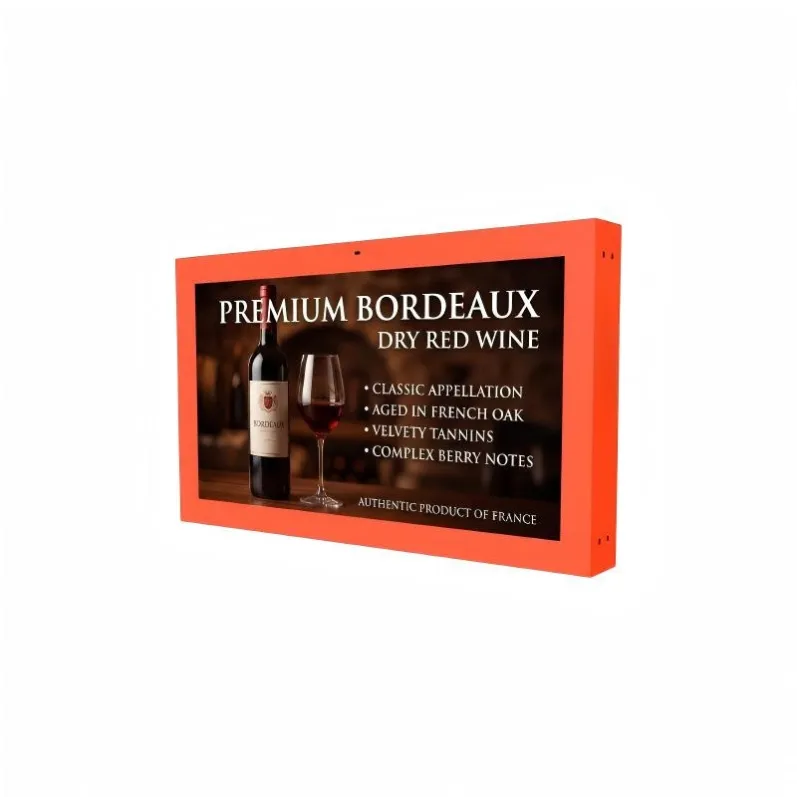

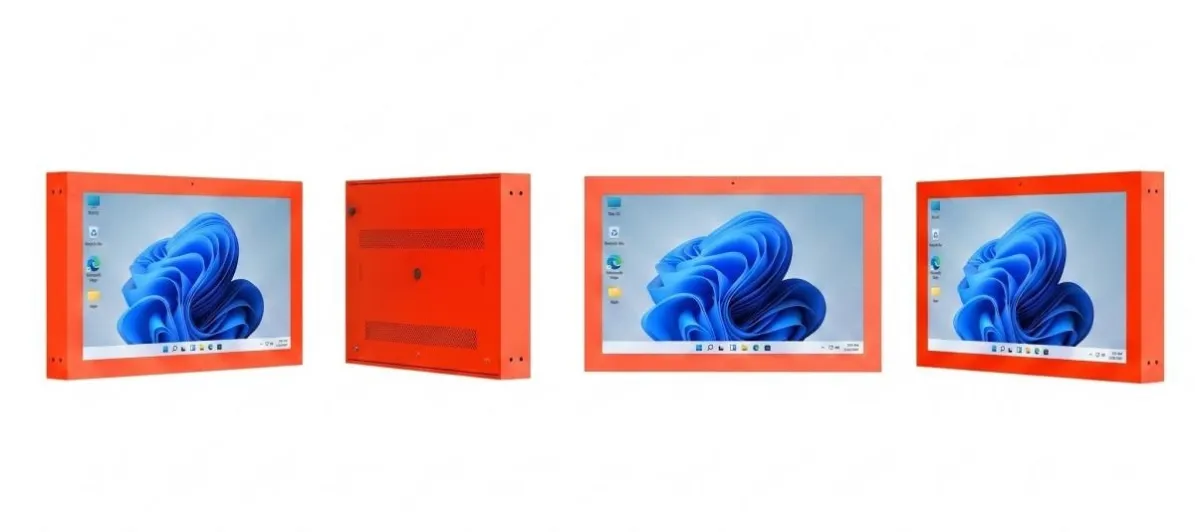

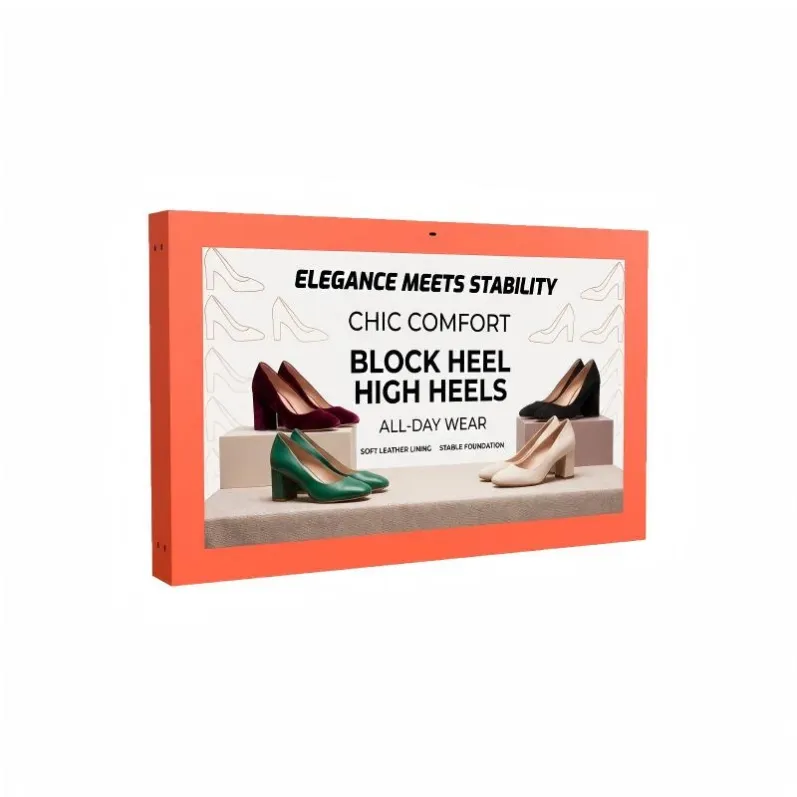

The wide orange-and-black cabinet shown in the product image gives this 65 Inch Outdoor Smart City Display a lower, more architectural appearance than a typical portrait information kiosk. It is suited to maps, city-development information and outdoor public content that benefits from a landscape format.
Its installation may be freestanding or adapted to a project-specific structure, subject to the final engineering design.
65 Inch Outdoor landscape embedded digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size(mm) | 1429*804 | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||

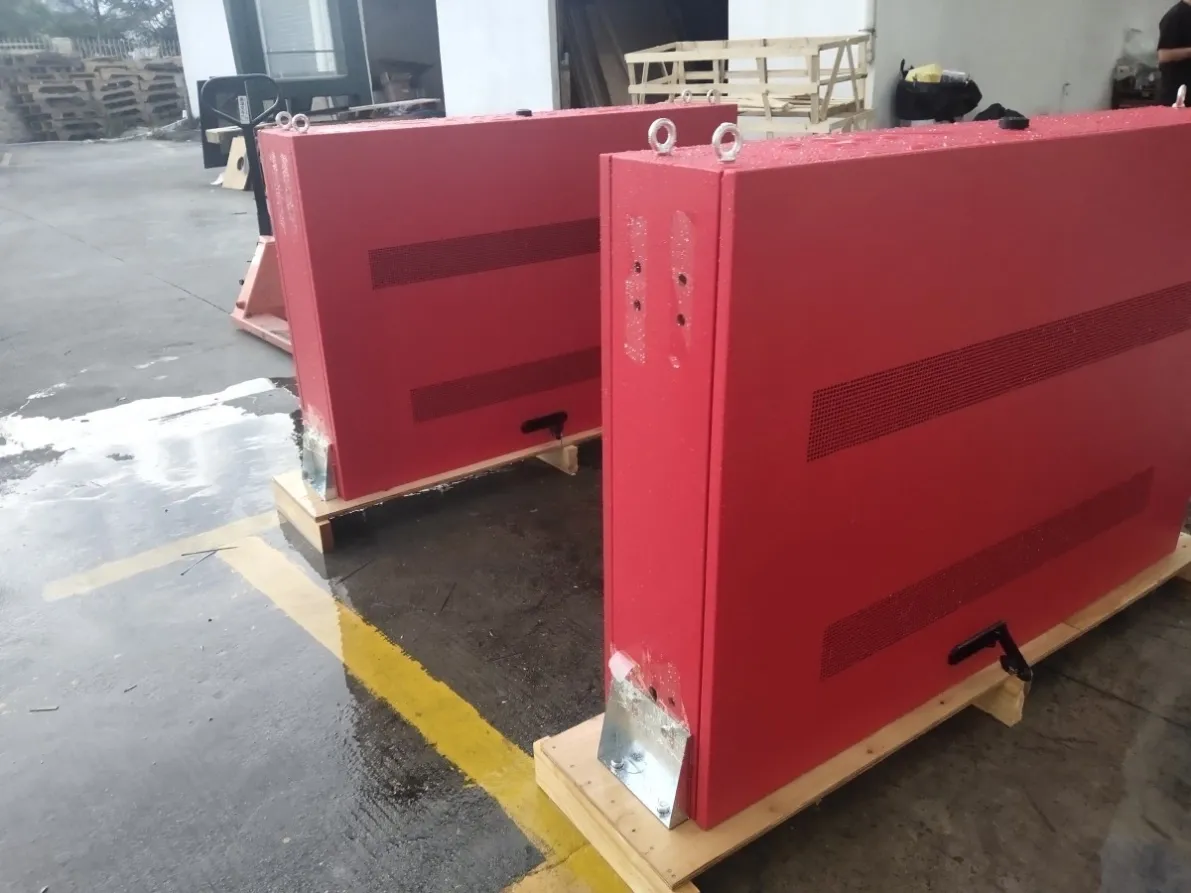

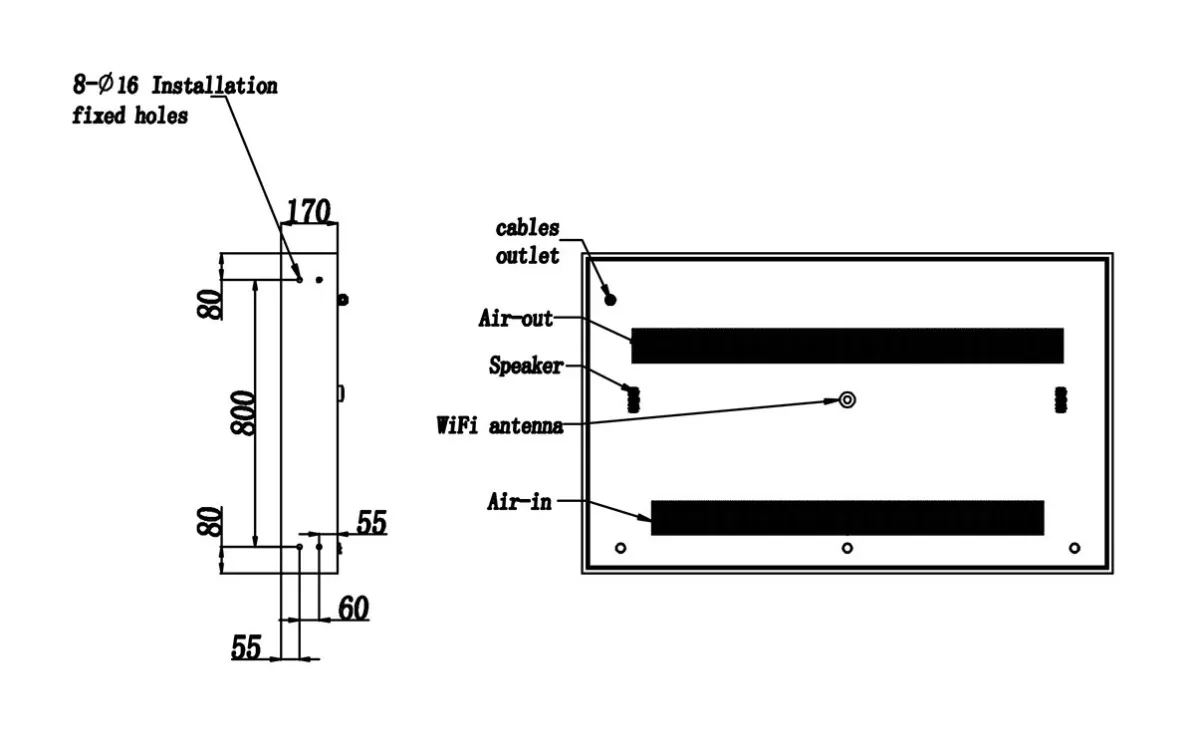

Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤700W | |

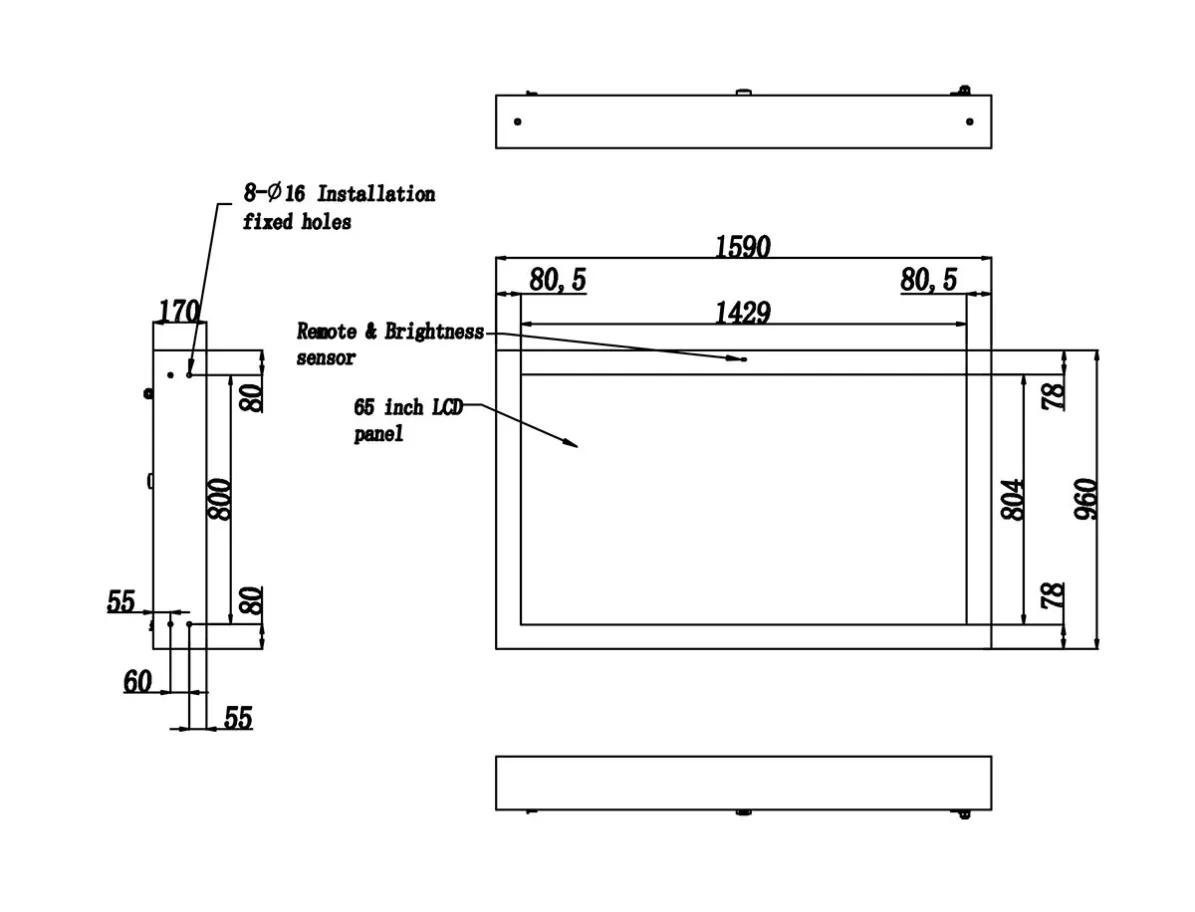

Mechanical Para | Machine seize H*W*D(mm) | 960*1590*170 |
Net weight(Kg) | 95 | |
Package size H*W*D(mm) | 1160*1890*320 | |
Gross weight(Kg) | 135 | |
Make Every Location Page Different
A citywide network should not show identical general information everywhere. The screen near a transport interchange should emphasize routes and connections. A display beside a park may prioritize walking paths, facilities and event notices.
Location-specific content can include:
- District maps
- Nearby public services
- Transport connections
- Road or pathway changes
- Local cultural events
- Environmental information
The 65 Inch Outdoor Smart City Display becomes more useful when each unit explains its immediate surroundings.
Plan a Clear Editorial Hierarchy
Municipal content, emergency information and commercial sponsorship may share the same screen. Publishing rules should establish which material has priority and how quickly urgent notices can replace normal content.
Playback records and device-status reporting help the operator verify that every location is displaying current information.
Outdoor Hardware Still Needs Site Engineering
The unit provides 2500-nit brightness, IP65 protection and built-in fan cooling. Screen orientation should account for sun direction, reflections and evening glare.
Foundation design, sealed cable routing and service clearance must be completed for the specific installation. Cabinet colour should also be coordinated with street furniture and local visual standards.
A 65 Inch Outdoor Smart City Display should be judged by information availability and daily usefulness—not simply by whether a screen has been installed.
