Built-in Fan Version
Outdoor Advertising Display 75 Inch Vertical Fan Cooling for Retail Windows
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTVE750R
75 Inch Vertical Outdoor Advertising Display for Exterior Storefronts
The product image shows a tall portrait cabinet with a bright cyan-colored side and a full-height advertising image. Its narrow upright form is designed to use vertical campaign artwork rather than horizontal video layouts.
This 75 Inch Vertical Outdoor Advertising Display is specified with 2500-nit brightness, IP65 protection and built-in fan cooling.
It can be placed outside retail windows, near exterior mall entrances or along open-air shopping streets where campaign content must compete with daylight.
75 Inch Outdoor portrait displays embedded digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size(mm) | 1651*929 | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |

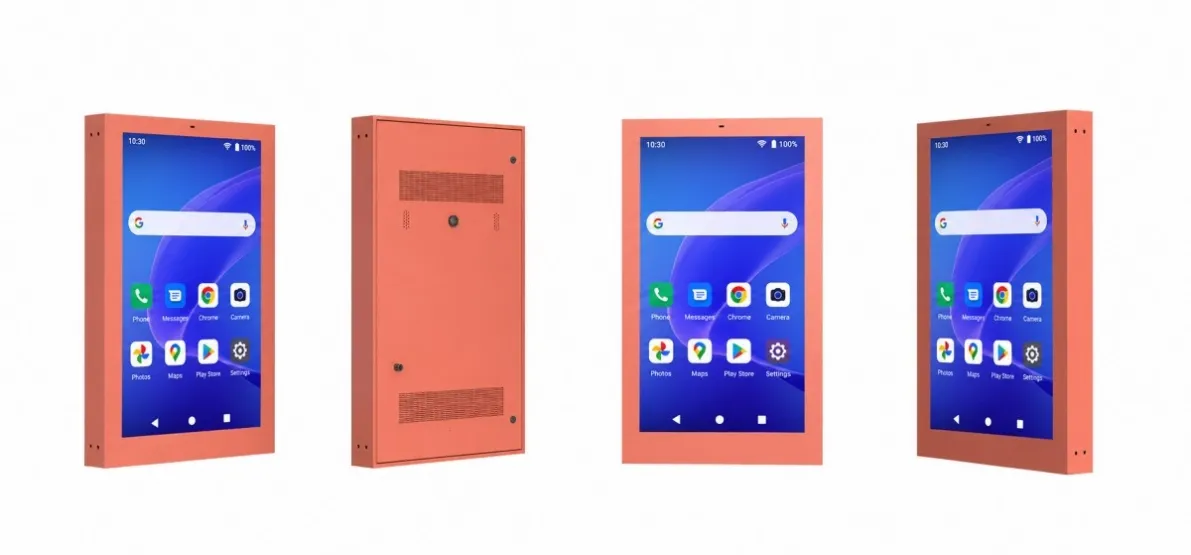

Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |

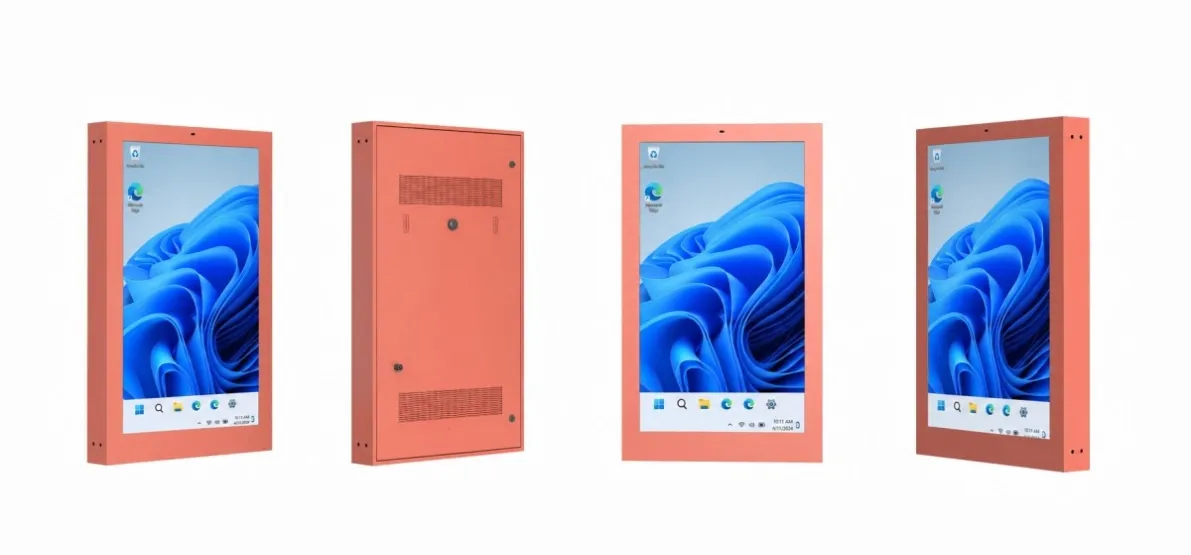

Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤860W | |

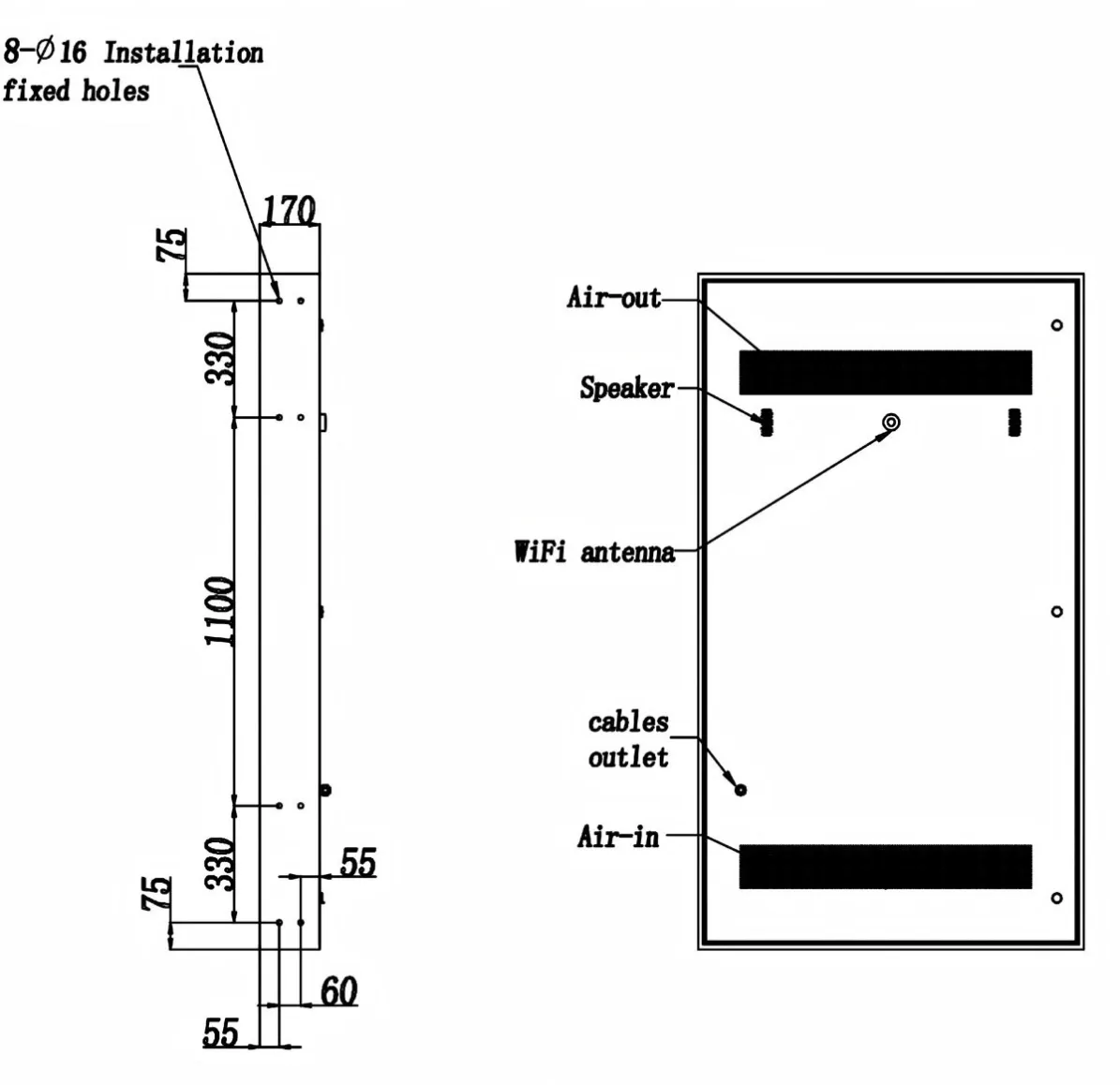

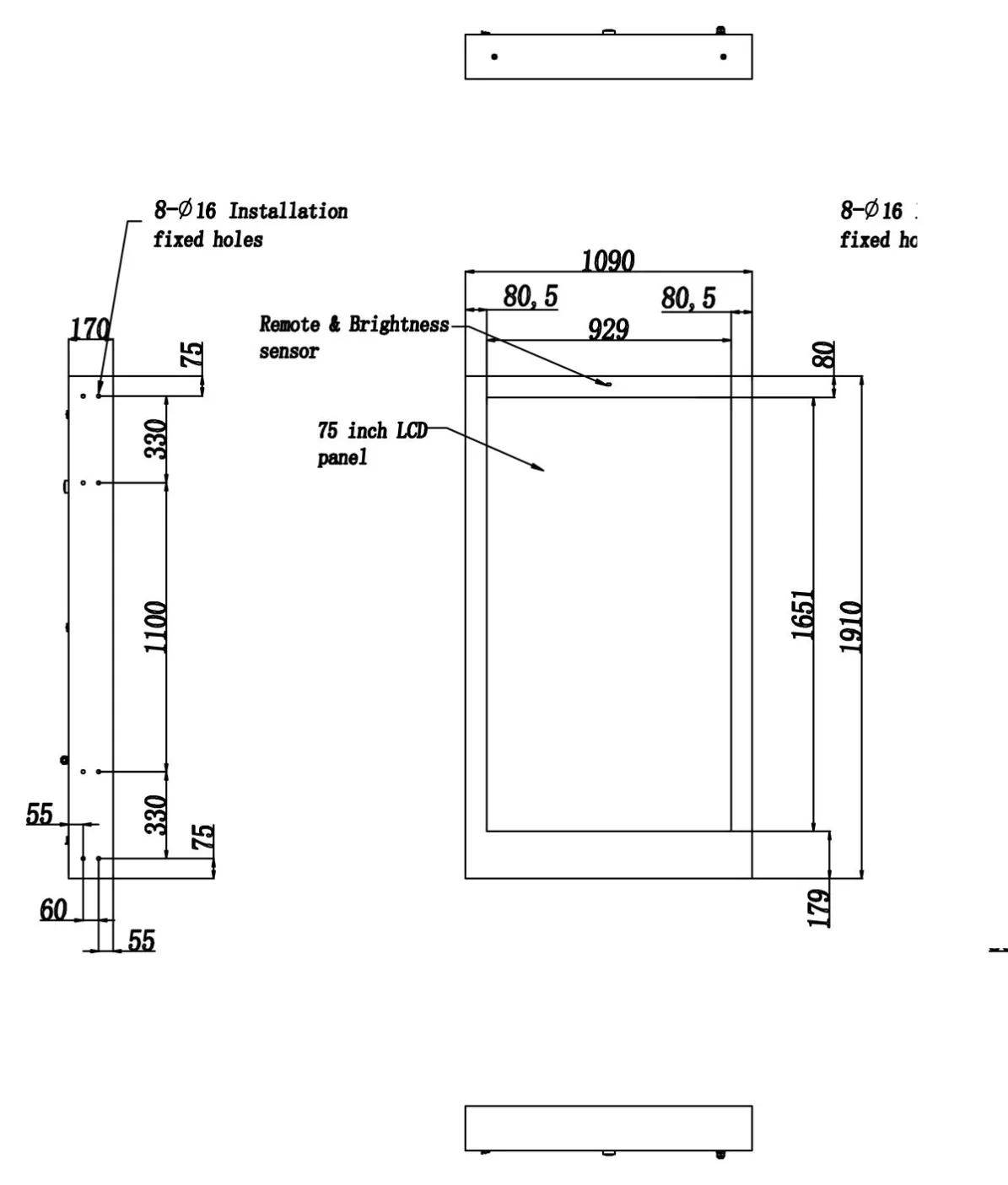

Mechanical Para | Machine seize H*W*D(mm) | 1190*1810*170 |
Net weight(Kg) | 150 | |
Package size H*W*D(mm) | 1390*2110*320 | |
Gross weight(Kg) | 200 | |
Use the Vertical Proportions
The 75-inch portrait format works particularly well with full-body fashion images, beverage campaigns, product launches and event posters.
A strong layout normally contains:
- One dominant product or person
- A short campaign headline
- A visible promotional period
- Store or entrance direction
- One action
Small product grids reduce the impact of the larger screen and may be difficult to read while customers are walking.
Cabinet Appearance and Storefront Design
The cyan-toned enclosure shown in the image gives the display a distinctive commercial appearance. It could support campaign branding or help identify a particular outdoor retail area.
The image does not guarantee a standard cyan finish. Final color, coating and logo treatment should be confirmed before production.
The tall cabinet also requires structural anchoring and suitable space around its base. It should not block the storefront or narrow an accessible pedestrian route.
Viewing Through Outdoor Light
The 2500-nit panel supports exterior viewing, but sunlight direction and storefront reflections still influence the result.
Artwork should be tested on the actual display rather than approved only on an office monitor. Dark images and thin text often lose detail outdoors.
IP65 protection helps protect the cabinet from dust and water jets. Fan cooling supports extended operation, and service access should remain available after exterior landscaping or decorative work.
The 75 Inch Vertical Outdoor Advertising Display provides a strong portrait advertising surface for outdoor retail environments where both the screen content and cabinet appearance contribute to the storefront.
