Outdoor Advertising Display 75 Inch 2500 Nits IP65 Wall Mount for EV Charging
Frame:Unibody Aluminum Life:60000 Hours Protection Grade:IP65 LOGO:Customerize
Specifications
- SKU
- ZXTLCD-OUTAHW750Y
75 Inch Wall Mounted EV Charging Display for Shared Site Communication
Where a charging hub includes a service building, canopy wall or substantial exterior structure, a wall-mounted screen can preserve valuable parking and pedestrian space. This 75 Inch Wall Mounted EV Charging Display provides a large landscape surface without adding another cabinet to the charging area.

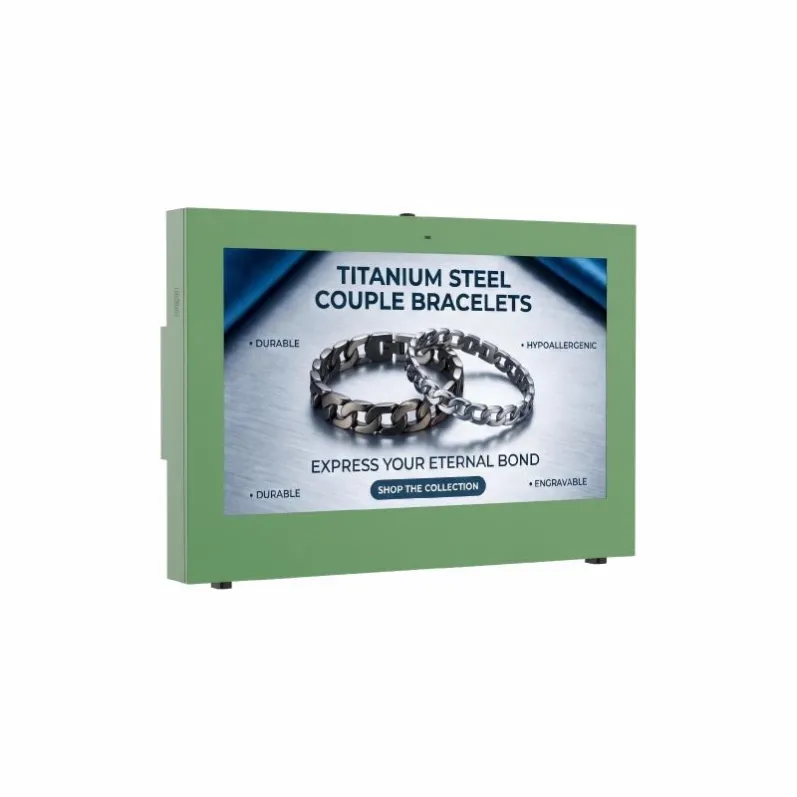

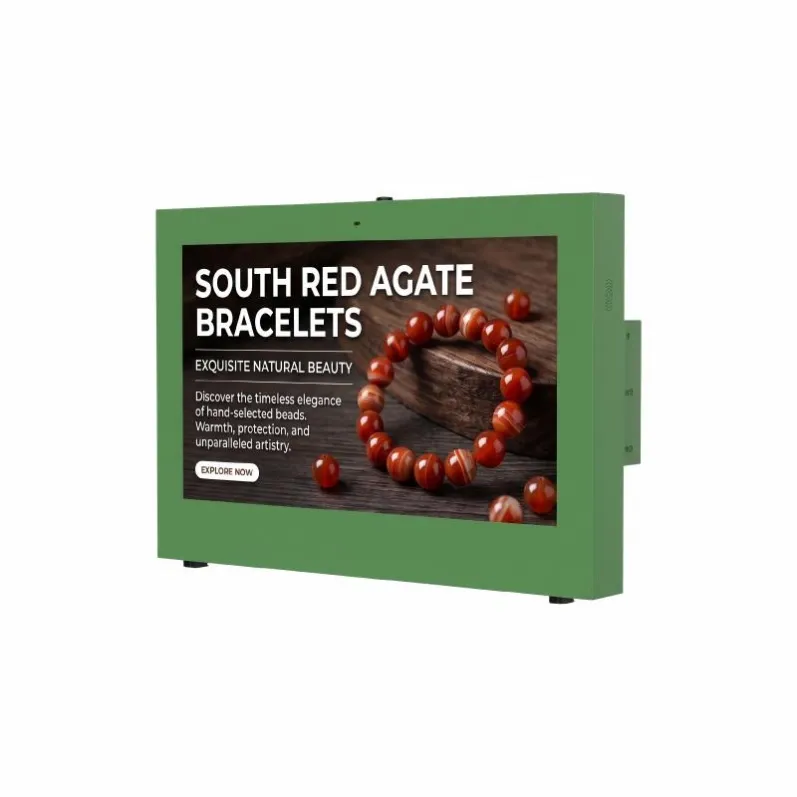

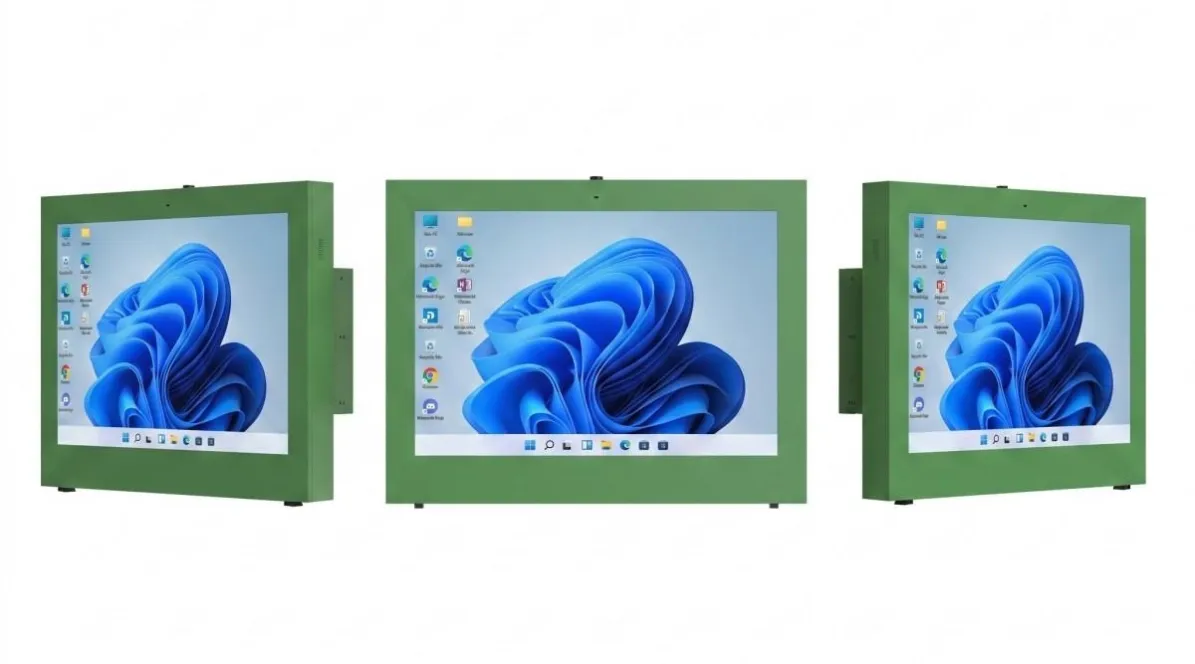

The image shows a dark green horizontal enclosure designed to sit against a supporting wall or custom structure.
75 Inch Outdoor horizontal wall-mounted display with air-cooling specification | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size(mm) | 1651*929 | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |

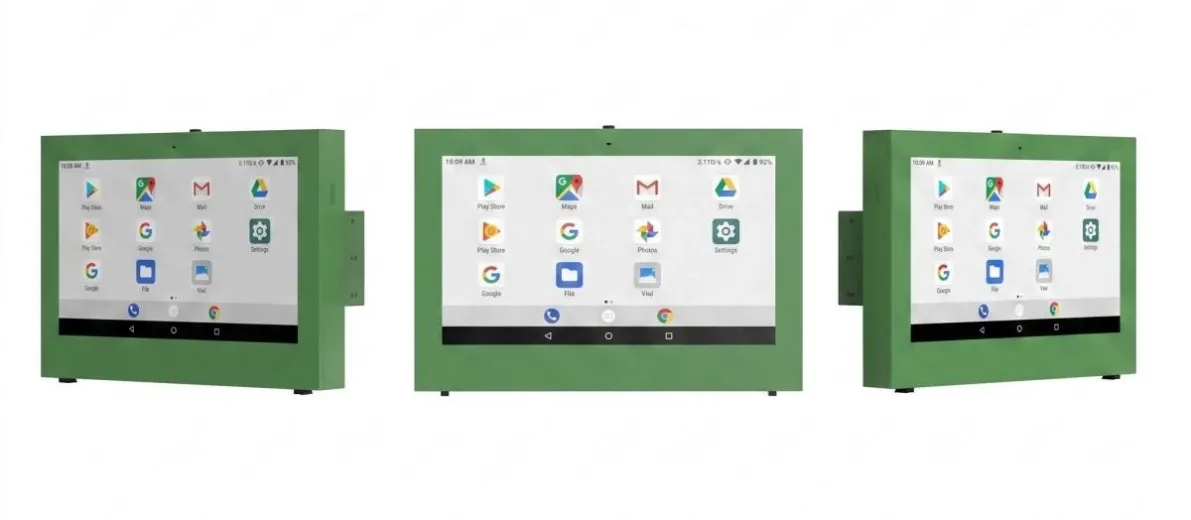

Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Air conditioner for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust internal temperature |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤860W | |

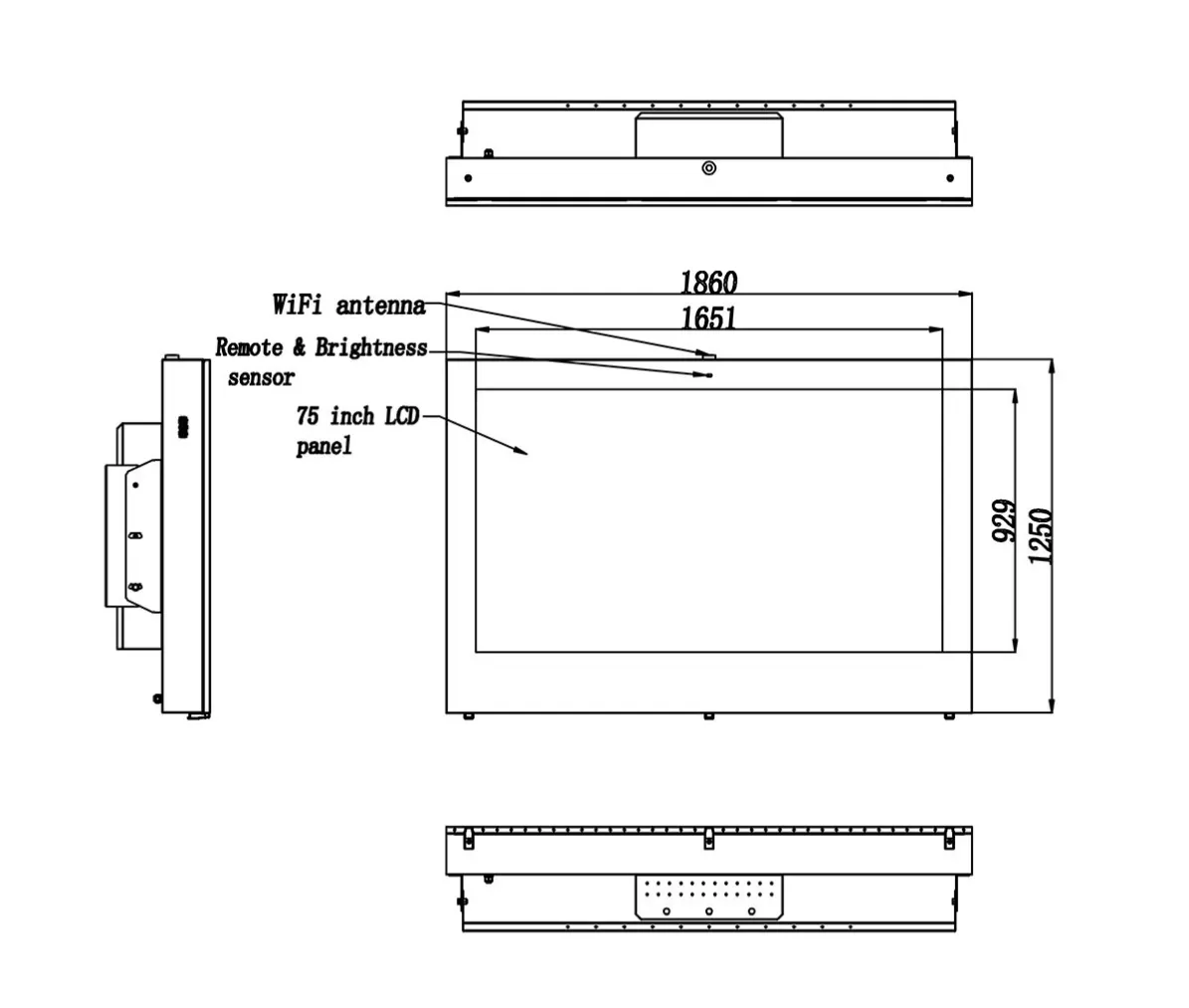

Mechanical Para | Machine seize H*W*D(mm) | 1860*1250*170 |
Net weight(Kg) | 180 | |
Package size H*W*D(mm) | 1520*2010*320 | |
Gross weight(Kg) | 220 | |
What Can One Large Screen Do?
The display can serve several charging bays with:
- Site-entry instructions
- Customer-support information
- Safety notices
- Directions to amenities
- Retail and restaurant offers
- Operator campaigns
The screen should not be presented as a charger-control interface unless direct system integration is included.
Wall Assessment Comes First

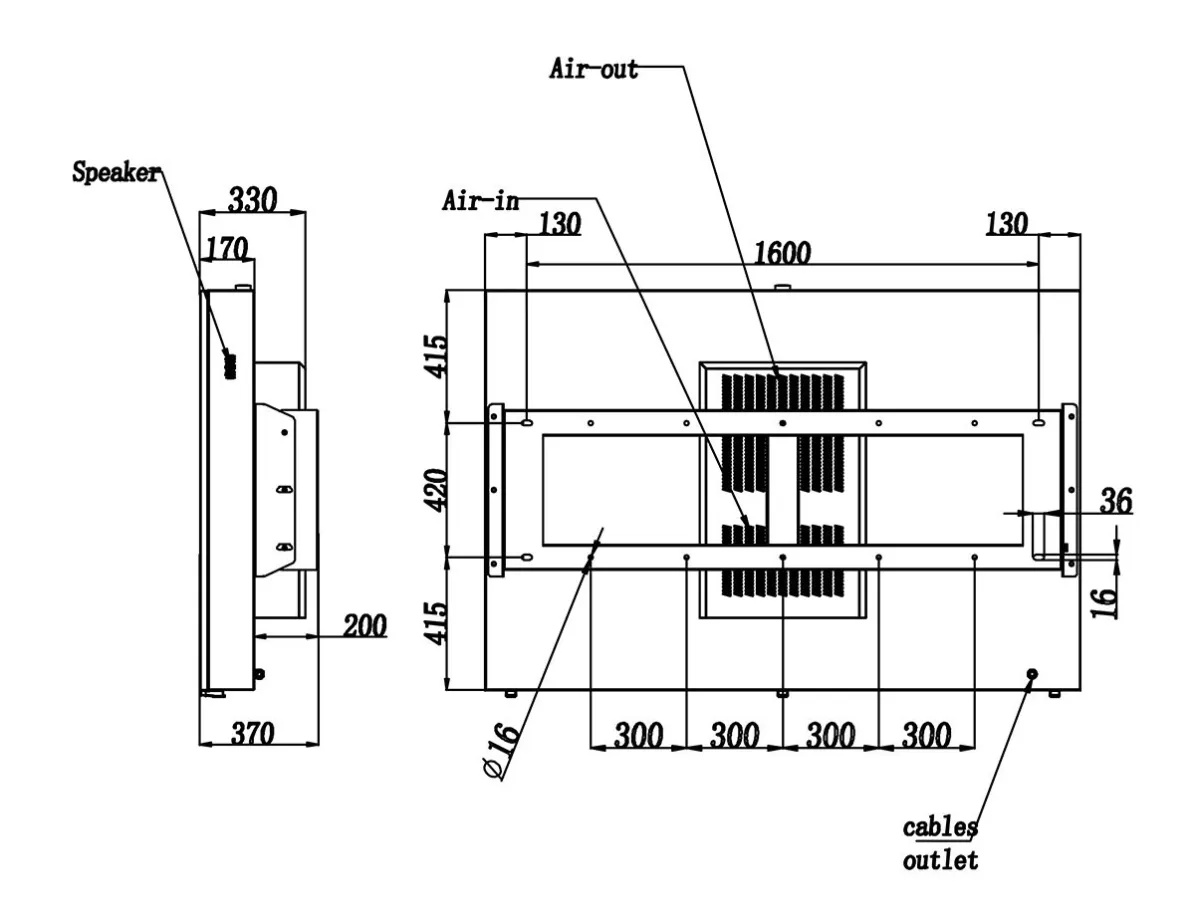

A 75-inch outdoor display imposes weight and wind load on the supporting structure. Before ordering the 75 Inch Wall Mounted EV Charging Display, the project team should verify:
- Wall material and structural capacity
- Bracket and anchor specification
- Screen height and viewing angle
- Rear or front service access
- Power and network routing
- Drainage above the cabinet
Decorative cladding alone may not provide a suitable structural fixing point.
Air-Conditioned Outdoor Operation
The backend identifies this model as a built-in air-conditioner version. The system provides more active thermal control for long operating schedules and exposed charging sites.
The 75 Inch Wall Mounted EV Charging Display is best suited to projects that already have an appropriate exterior structure and want to keep the ground around charging bays clear.
