Built-in Fan Version
High Brightness Weatherproof Digital Signage 21.5 Inch Embedded for Retail Windows
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTVE215B
21.5 Inch Embedded Weatherproof Digital Signage for Close-Range Retail Information

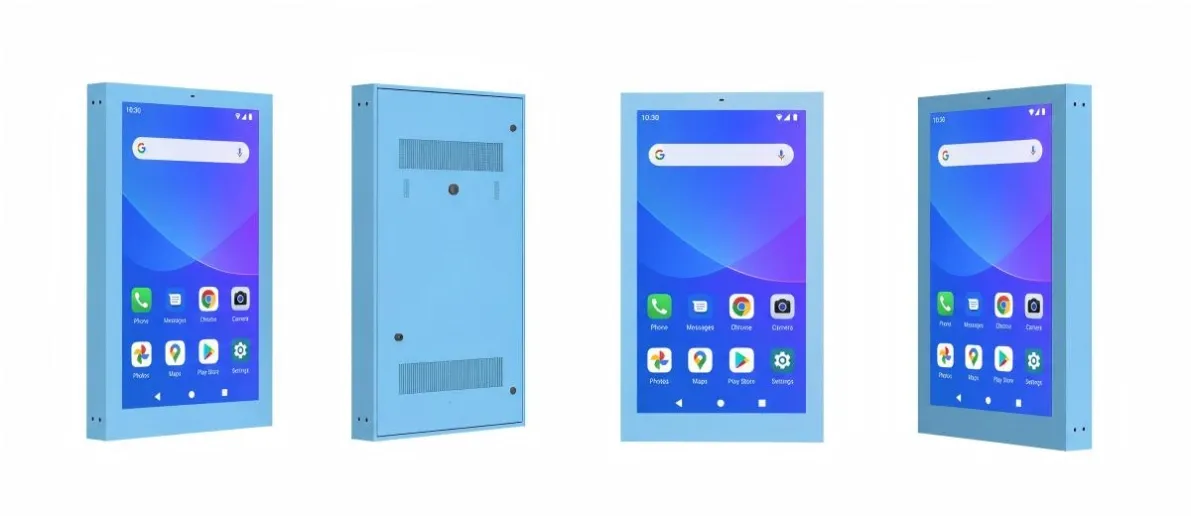

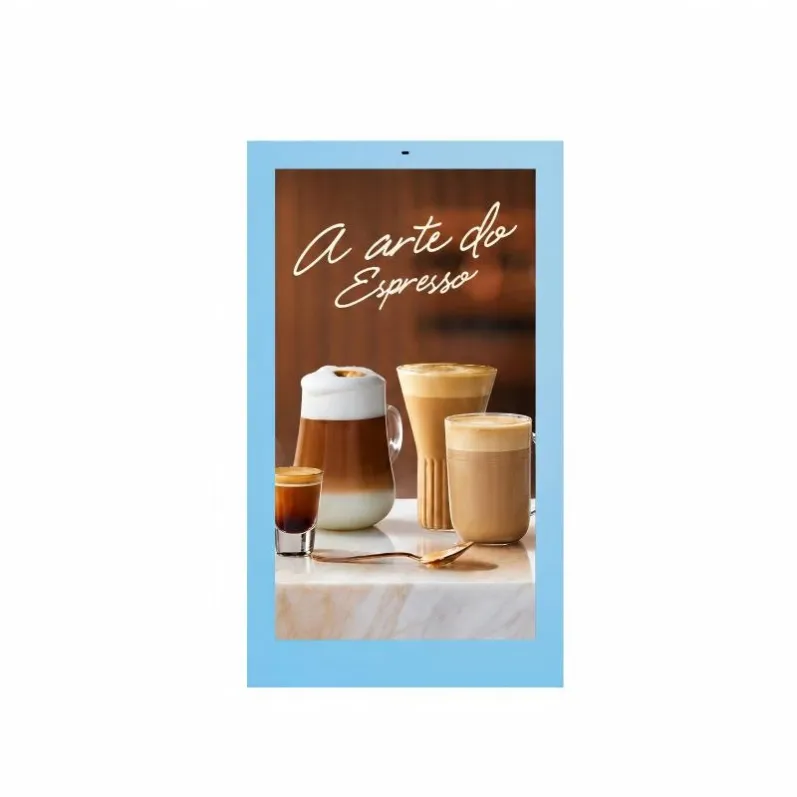

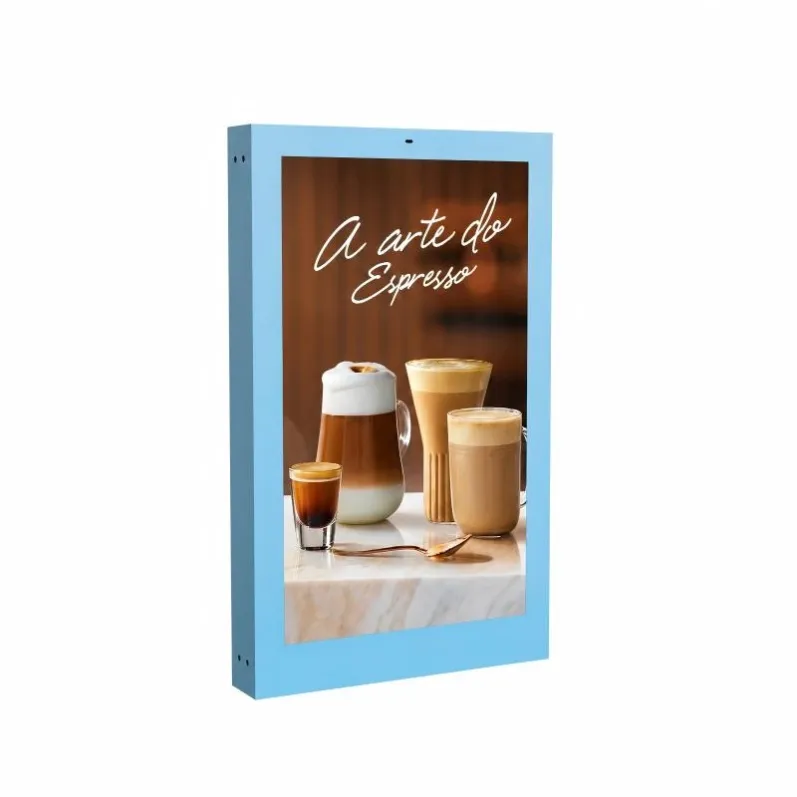

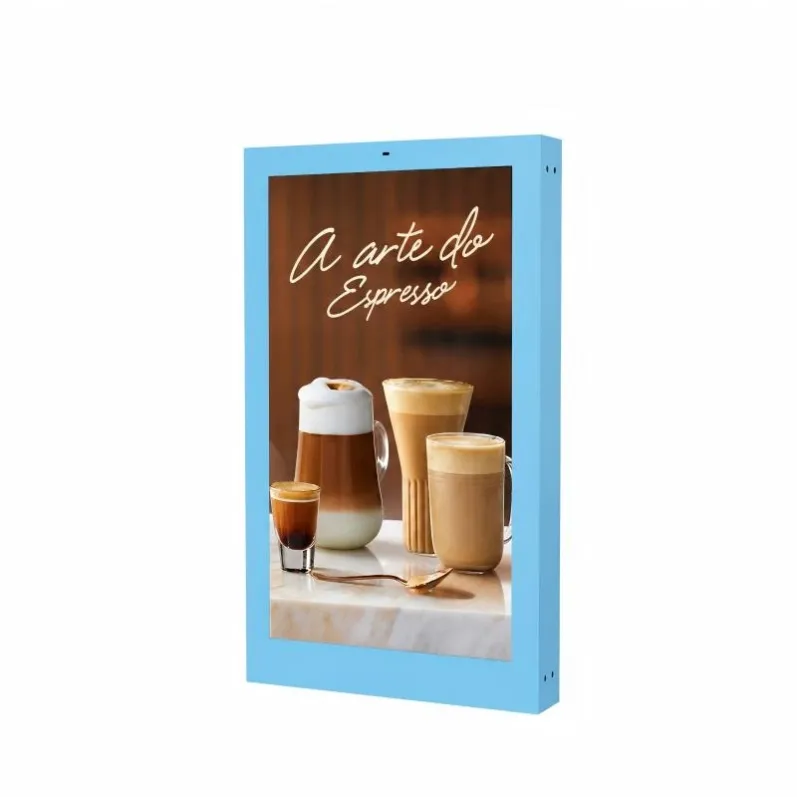

The product image shows a compact screen surrounded by a cyan-colored rectangular frame. Its small dimensions and flat embedded form separate it from the large advertising kiosks used across outdoor plazas.
This 21.5 Inch Embedded Weatherproof Digital Signage model is intended for close-range information at exterior retail windows and outdoor-facing service points.
The current product family is listed with 2500-nit brightness, IP65 protection and built-in fan cooling.
21.5 Inch Outdoor portrait displays embedded digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | ELED |
Display size(mm) | 478*269 | |
Display ratio | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 1500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |

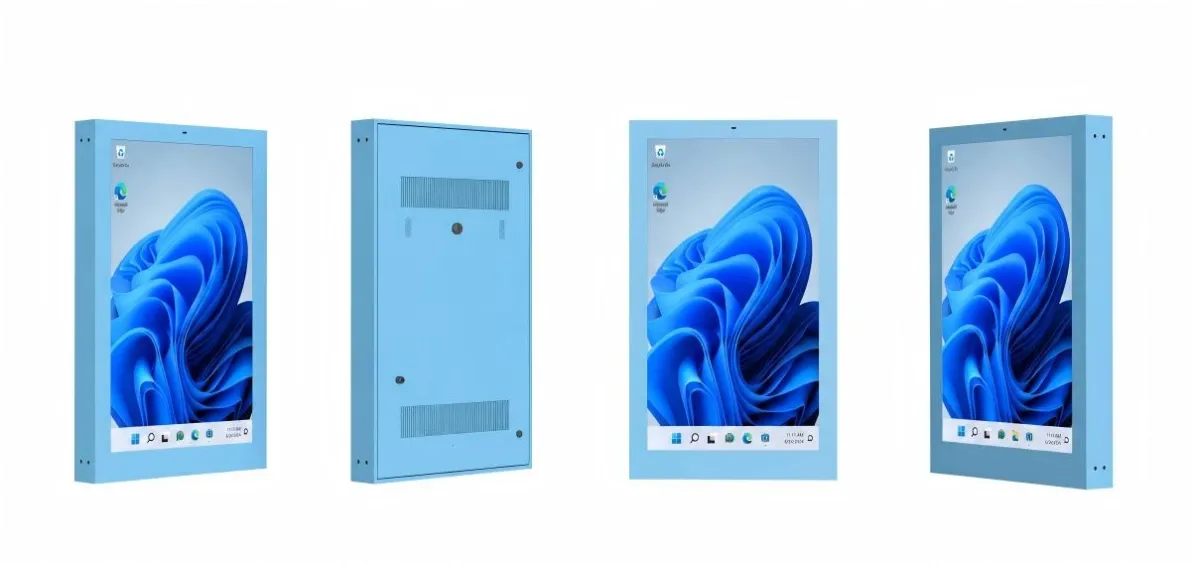

Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||

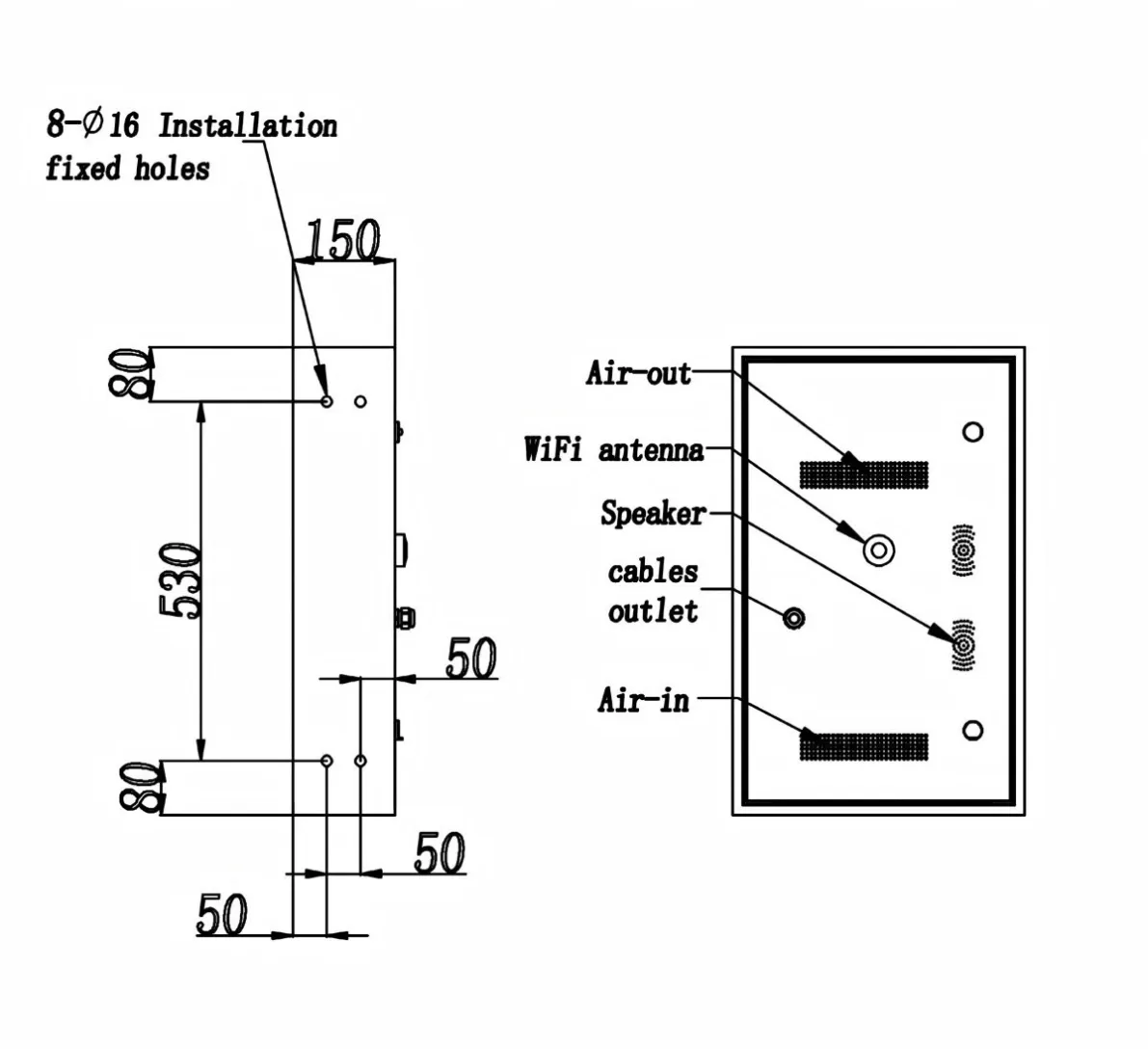

Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤180W | |

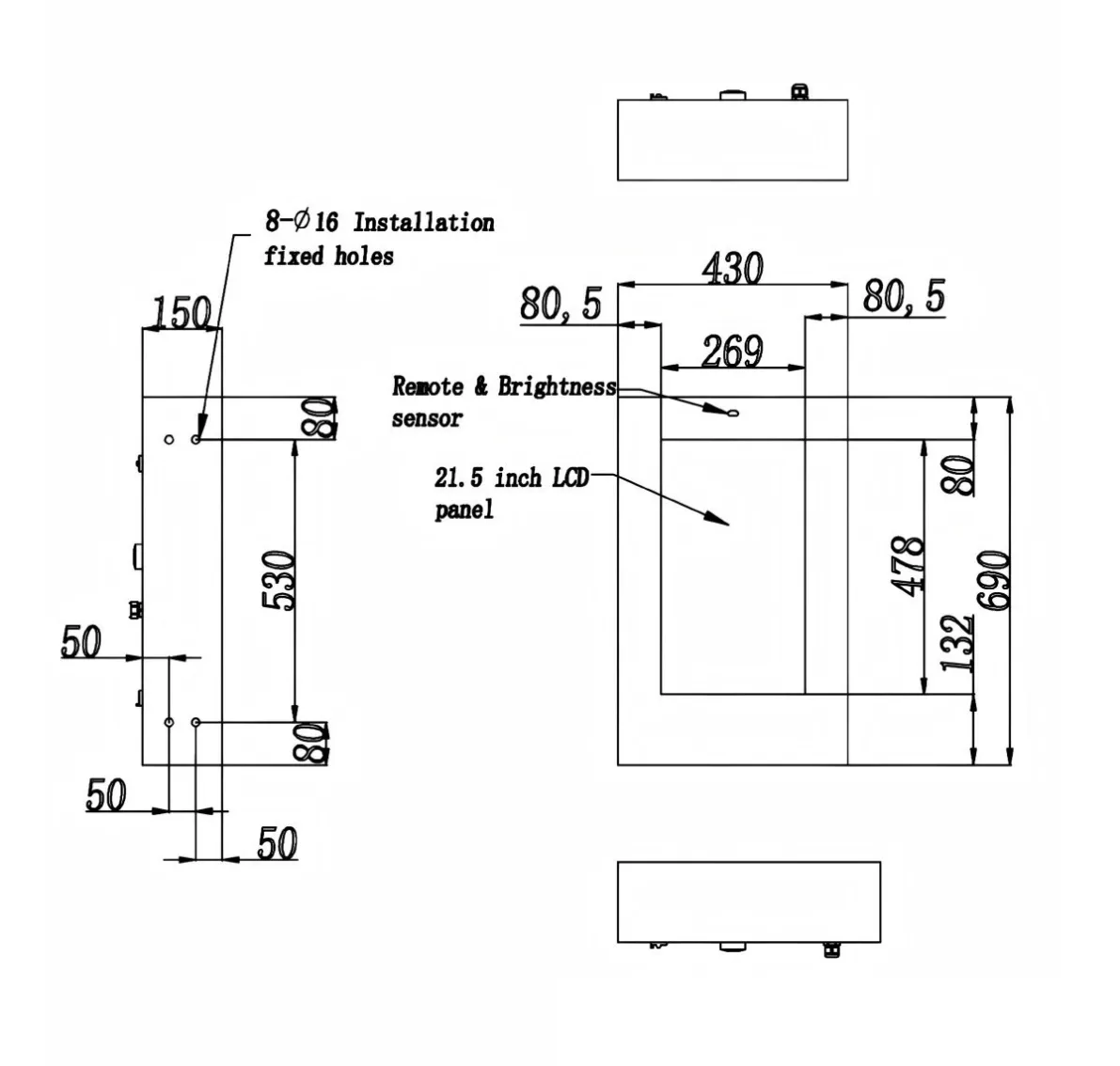

Mechanical Para | Machine seize H*W*D(mm) | 440*640*150 |
Net weight(Kg) | 30 | |
Package size H*W*D(mm) | 640*940*300 | |
Gross weight(Kg) | 50 | |
Where a 21.5-Inch Screen Works
The screen is best placed where the customer naturally stands close to the display.
Possible outdoor uses include:
- Exterior restaurant pickup windows
- Outdoor ticket counters
- Drive-up service windows
- Retail collection points
- Park admission booths
- Outdoor payment stations
It can show opening hours, pickup instructions, current offers and short service messages. It is not intended for long-distance advertising.
Designing Around the Small Screen
A compact display requires disciplined content. One product, one price or one instruction is more useful than a reduced version of a full advertising poster.
Text should remain large and the visual hierarchy should be obvious. QR codes can be used when customers are expected to stop near the screen, but the accompanying action must be explained.
Embedded Retail Construction
The cyan frame shown in the image may help identify a service window or match a retail color scheme. Final finish options must be confirmed before production.
The host structure needs to provide support, ventilation and maintenance access. If the display is installed near a service opening, staff must still be able to access the rear or specified service side safely.
The surrounding canopy should not direct rainwater toward the screen perimeter.
Outdoor Performance
High brightness supports visibility at an exterior window, where daylight can overwhelm a standard indoor panel. IP65 protection addresses dust and water exposure when installation seals remain intact.
The 21.5 Inch Embedded Weatherproof Digital Signage model fills a different search and buying role from large outdoor kiosks: it provides focused digital information at the point where an outdoor transaction occurs.
