Built-in Fan Version
High Brightness Outdoor Digital Signage 65 Inch Embedded for Mall Promotions
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTVE650P
65 Inch Embedded Outdoor Digital Signage for Open-Air Mall Promotions
The product image shows a bright campaign inside a red-toned rectangular frame. Its flat perimeter and lack of a large ground base make it suitable for integration into an outdoor mall wall or purpose-built promotional structure.
This 65 Inch Embedded Outdoor Digital Signage model is specified with 2500-nit brightness, IP65 protection and built-in fan cooling.
65 Inch Outdoor portrait displays embedded digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size(mm) | 1429*804 | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |

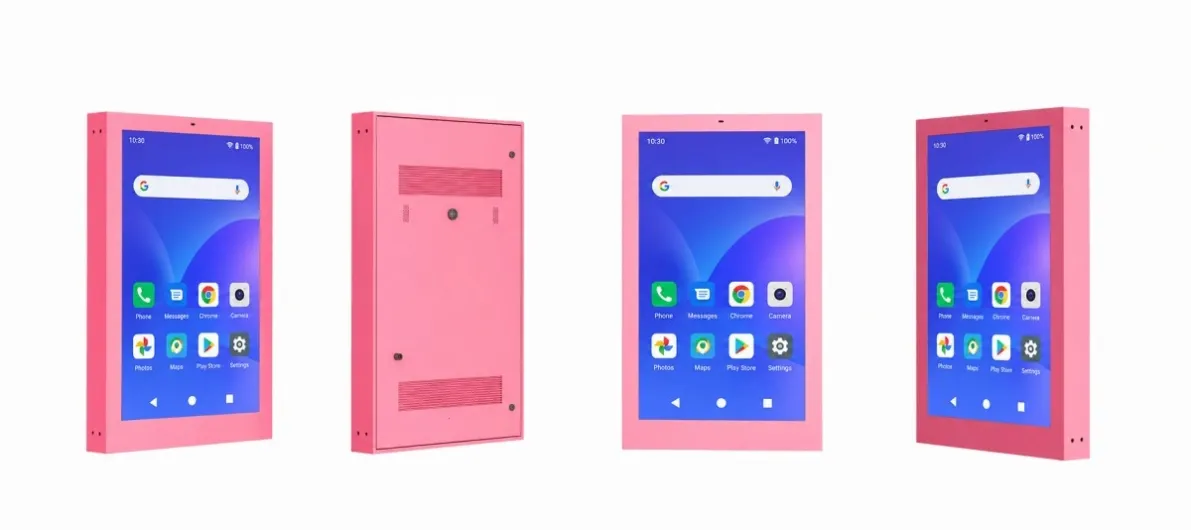

Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |

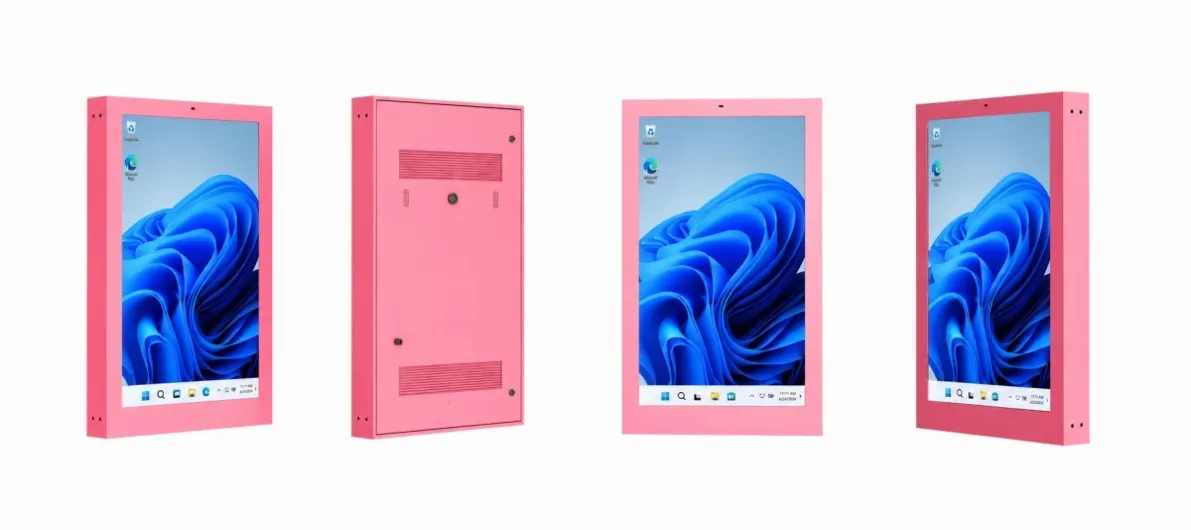

Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||

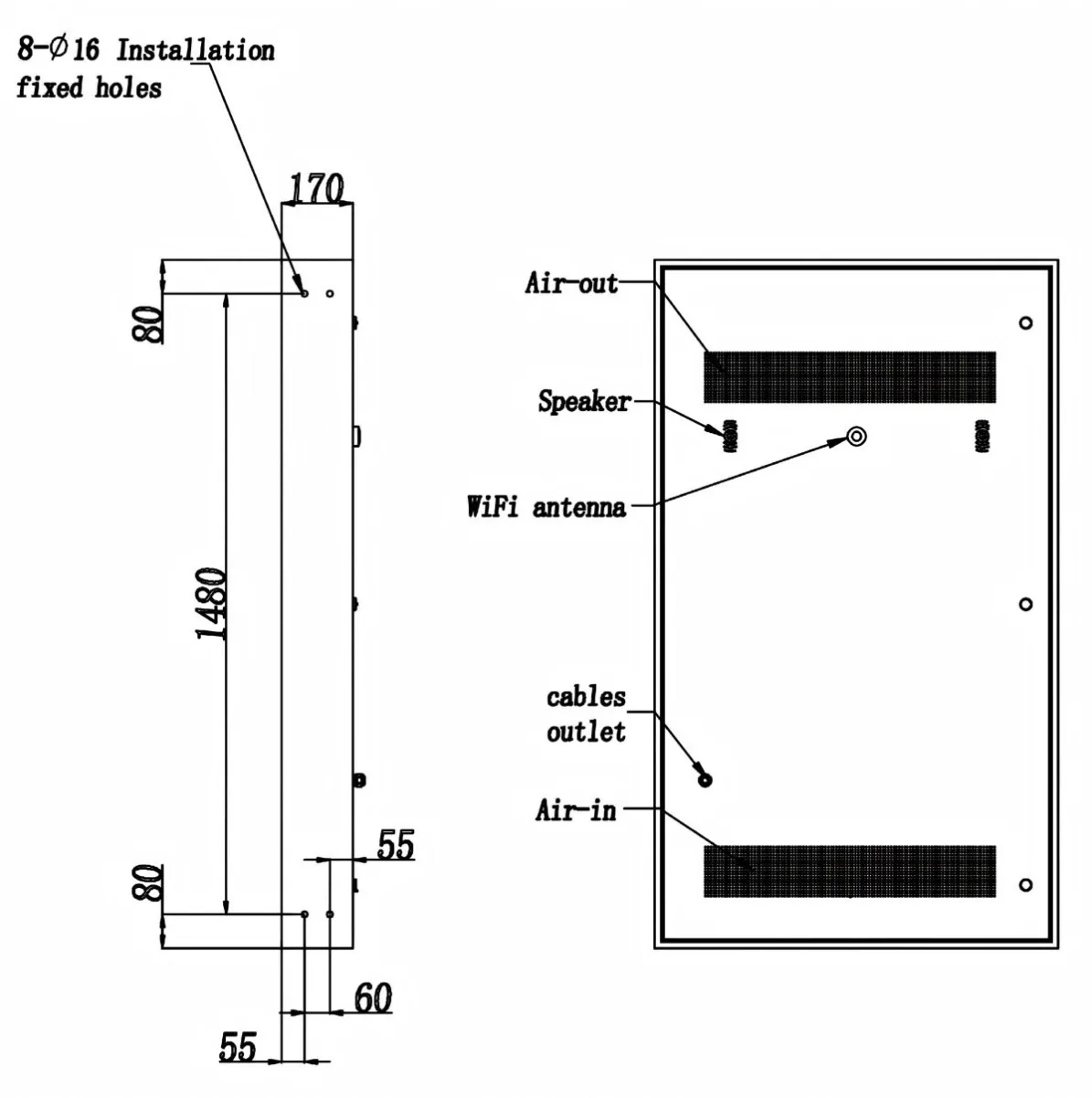

Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤700W | |

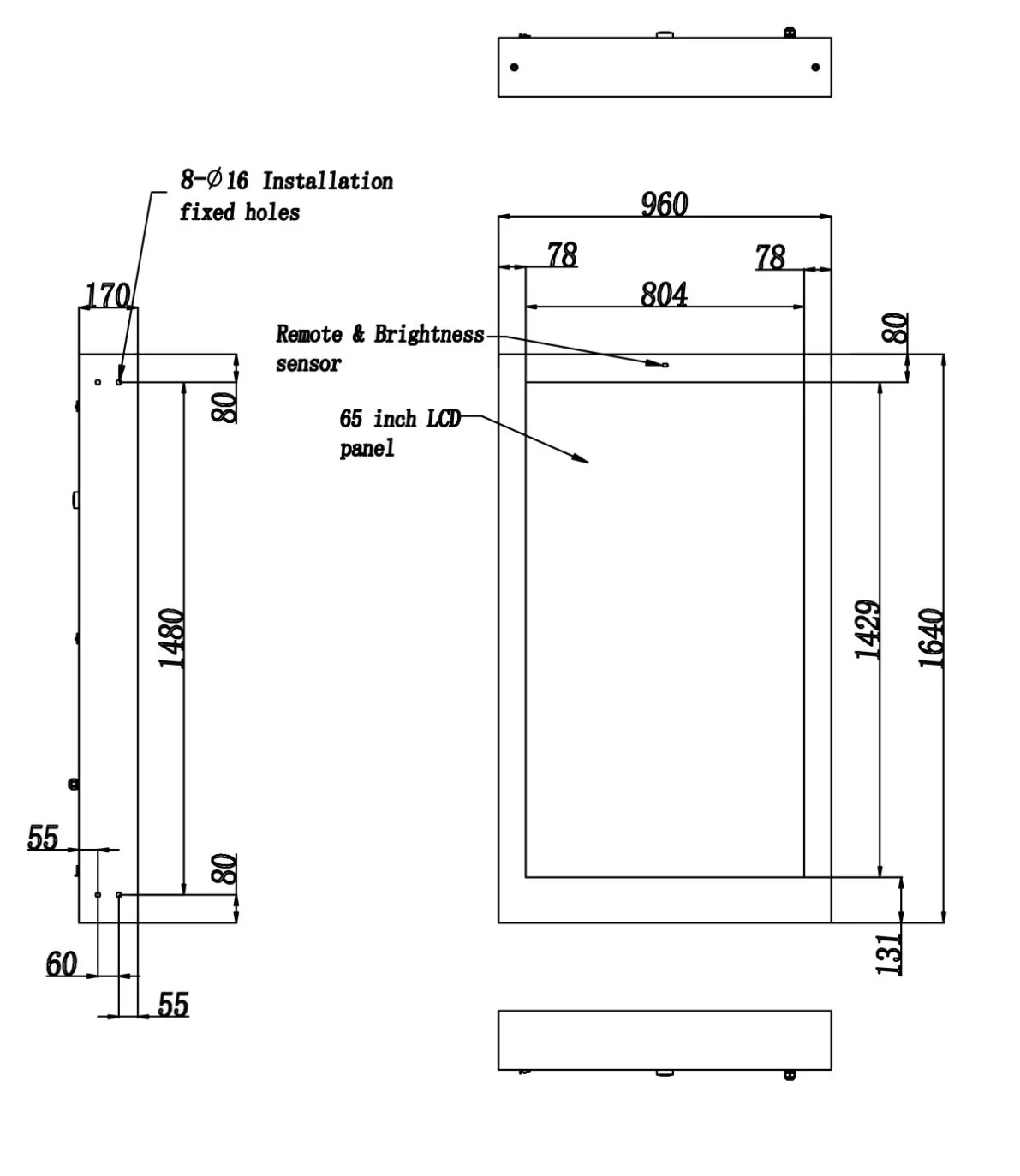

Mechanical Para | Machine seize H*W*D(mm) | 960*1590*170 |
Net weight(Kg) | 95 | |
Package size H*W*D(mm) | 1160*1890*320 | |
Gross weight(Kg) | 135 | |
Creating a Cleaner Outdoor Retail Façade
An embedded screen can place campaign content closer to the architecture than a separate freestanding kiosk. It may be incorporated into an exterior entrance wall, open-air retail directory or outdoor advertising monument.
This approach can preserve pedestrian space, but it requires earlier coordination. The screen opening, structural support, power route and maintenance access must all be defined before the wall is completed.
Using the Visible Frame
The red enclosure shown in the image could support a promotional or branded appearance. If the frame remains visible after integration, its final color should be coordinated with the exterior façade.
The displayed color is not automatically a standard option. Buyers should confirm coating references, logo requirements and outdoor finish durability.
Campaign Content
A 65-inch portrait screen suits fashion launches, restaurant promotions, event advertising and directions to outdoor-facing shops.
The screen should not be overloaded with a full shopping-center directory unless the type remains readable from the planned distance. One major campaign or a short sequence of clearly separated messages is preferable.
Environmental Installation
The 2500-nit brightness supports daylight viewing. Screen direction, nearby glazing and direct sun still require evaluation.
IP65 protection helps defend against dust and water jets. The surrounding construction must not compromise seals or trap water around the cabinet.
Built-in fan cooling requires ventilation and service access. The 65 Inch Embedded Outdoor Digital Signage should not be permanently enclosed behind decorative panels that prevent maintenance.
For outdoor retail architecture, the embedded format provides a more integrated appearance than a freestanding kiosk when its technical requirements are included from the design stage.
