Built-in Fan Version
High Brightness Outdoor Advertising Display 98 Inch Embedded for Mall Promotions
Life:60000 Hours Protection Grade:IP65 LOGO:Customerize HS code:8528591090
Specifications
- SKU
- ZXTLCD-OUTFHE980YGL
98 Inch Embedded Outdoor Advertising Display for Architectural Media Walls
A 98-inch screen is large enough to become part of the building rather than look like equipment placed in front of it. This 98 Inch Embedded Outdoor Advertising Display is intended for integration into exterior mall façades, covered outdoor retail walls and purpose-built advertising structures.

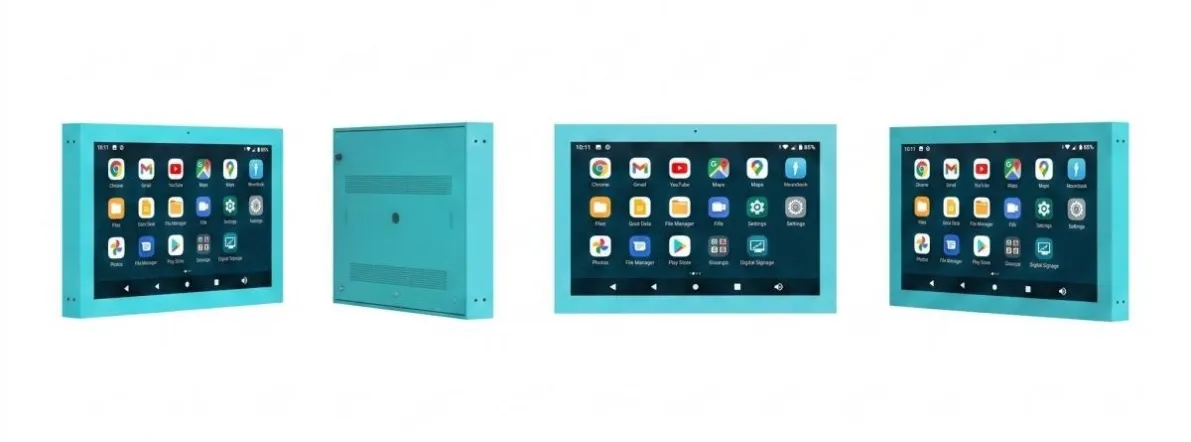

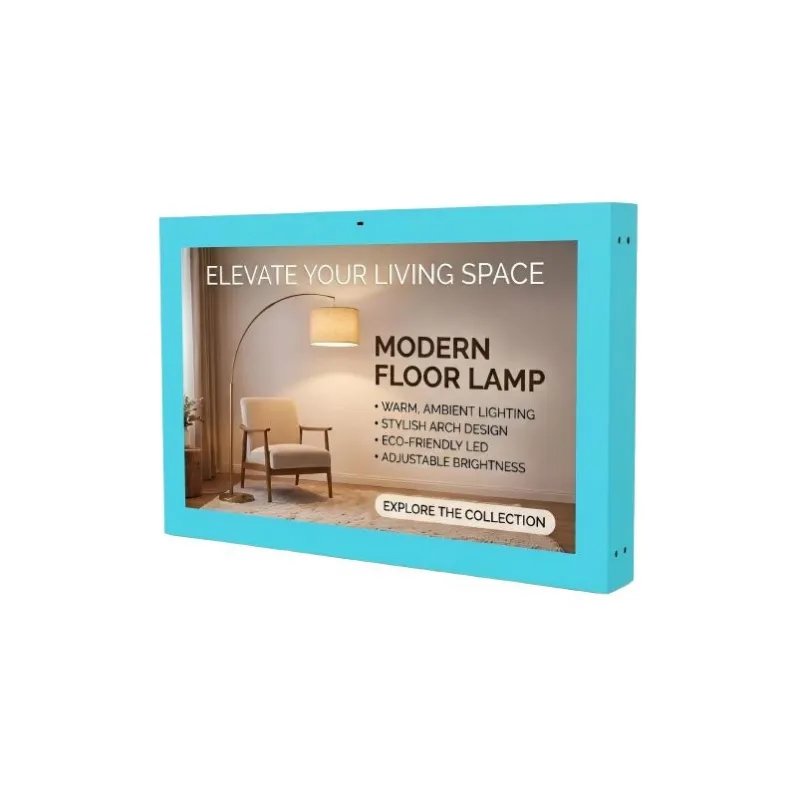

The product image shows a wide, light-coloured enclosure. Its shallow landscape appearance is more suitable for architectural installation than for a conventional freestanding advertising kiosk.
98 Inch Outdoor landscape embedded digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size(mm) | 2159*1215 | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||

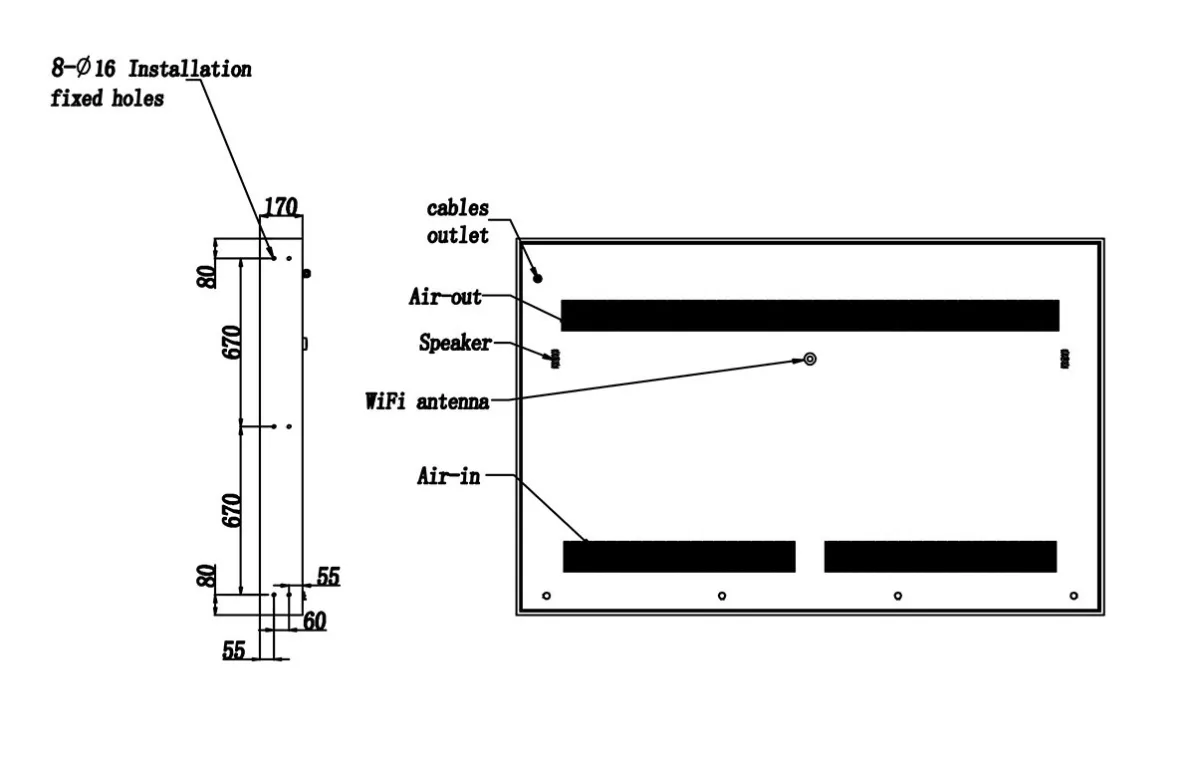

Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤2000W | |

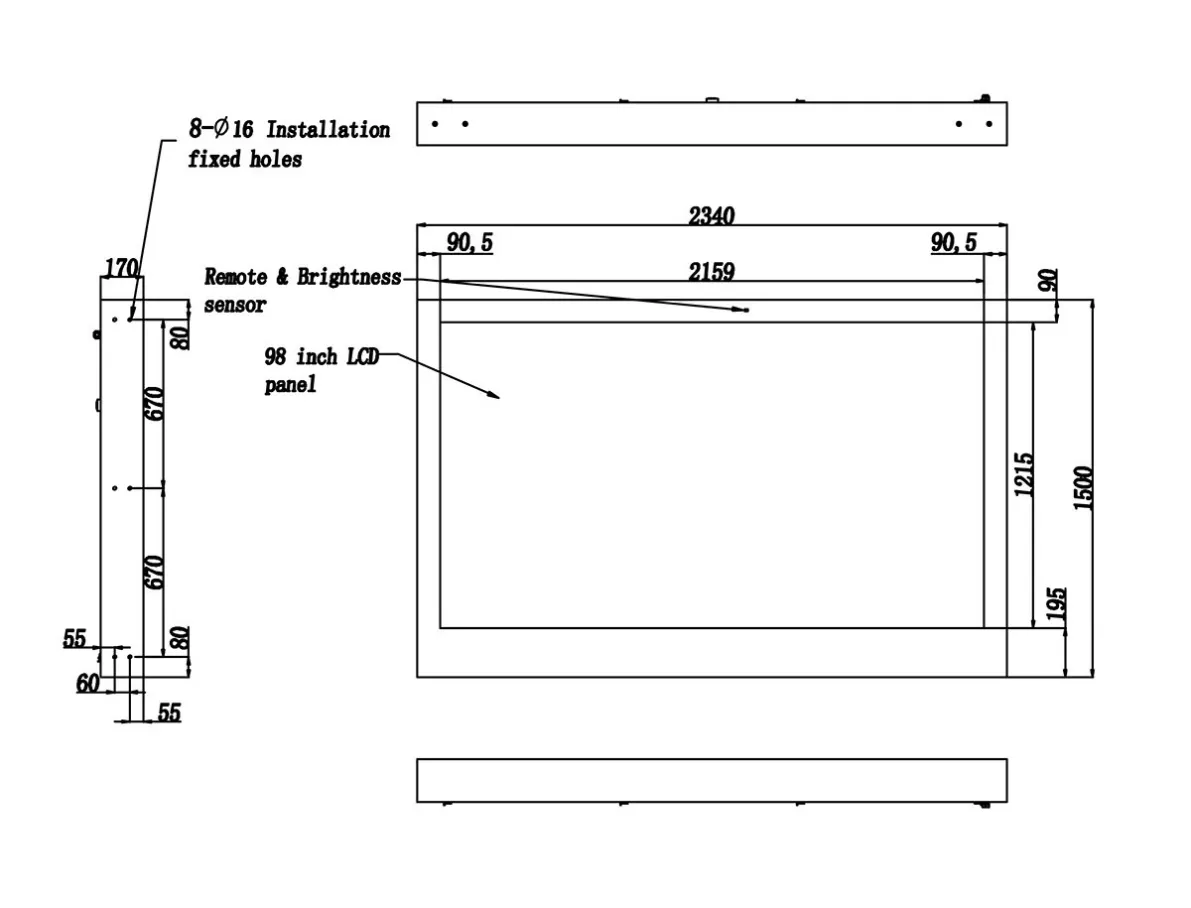

Mechanical Para | Machine seize H*W*D(mm) | 2340*1500*170 |
Net weight(Kg) | 320 | |
Package size H*W*D(mm) | 1700*2640*320 | |
Gross weight(Kg) | 390 | |
Use Scale for Brand Impact
Large displays are often filled with more information simply because more space is available. That usually weakens the campaign. At this size, one strong visual and a short message can remain recognizable across an open-air pedestrian area.
Suitable content includes:
- Major seasonal campaigns
- Fashion and automotive launches
- Open-air mall event promotion
- Restaurant and entertainment advertising
- Brand films in landscape format
- Site-wide public announcements
The creative should be reviewed from the intended distance. Content that looks restrained on a desktop monitor can feel oversized when displayed at 98 inches.
Coordinate the Screen with the Wall
The 98 Inch Embedded Outdoor Advertising Display requires cooperation between the display supplier, façade contractor and electrical team.
The wall structure must accommodate cabinet depth, weight, airflow and cable routing. Service access is equally important. If the display can only be removed from the front, the surrounding finish must allow safe removal without damaging adjacent panels.
Heat and Water Management
The enclosure uses IP65 protection and built-in fan cooling. The architectural recess should not trap hot exhaust air or direct rainwater toward ventilation areas.
A canopy does not automatically solve water exposure. Wind-driven rain and façade runoff must be considered separately.
A Permanent Screen Needs a Long-Term Content Plan
The 98 Inch Embedded Outdoor Advertising Display represents a significant architectural installation. Before production, the operator should determine who supplies campaigns, how content is approved and what appears between paid advertising periods.
A technically successful screen with no reliable publishing schedule quickly loses commercial value. Hardware, architecture and media operation should therefore be planned as one project.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
