Built-in Air conditioner
High Brightness Outdoor Advertising Display 55 Inch Wall Mounted for Smart City Media
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Air Conditioner
Specifications
- SKU
- ZXTLCD-OUTAVW550P
55 Inch Air Conditioned Wall Mounted Outdoor Advertising Display for Public Media
The product image presents a dark blue or purple screen inside a narrow dark cabinet. Without a freestanding lower body, it can be incorporated into an exterior city wall, transit structure or purpose-built outdoor information fixture.
The 55 Inch Air Conditioned Wall Mounted Outdoor Advertising Display is categorized as a built-in air-conditioner model and is listed with 2500-nit brightness and IP65 protection.
55 Inch Outdoor Wall-Mounted Vertical Digital Signage with Air Conditioning specification | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | Direct LED type |
Display dimension （mm） | 1210*681 | |
Display ration | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 2000-2500cd/㎡ | |
Contrast | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Life time | 50000 hours | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |

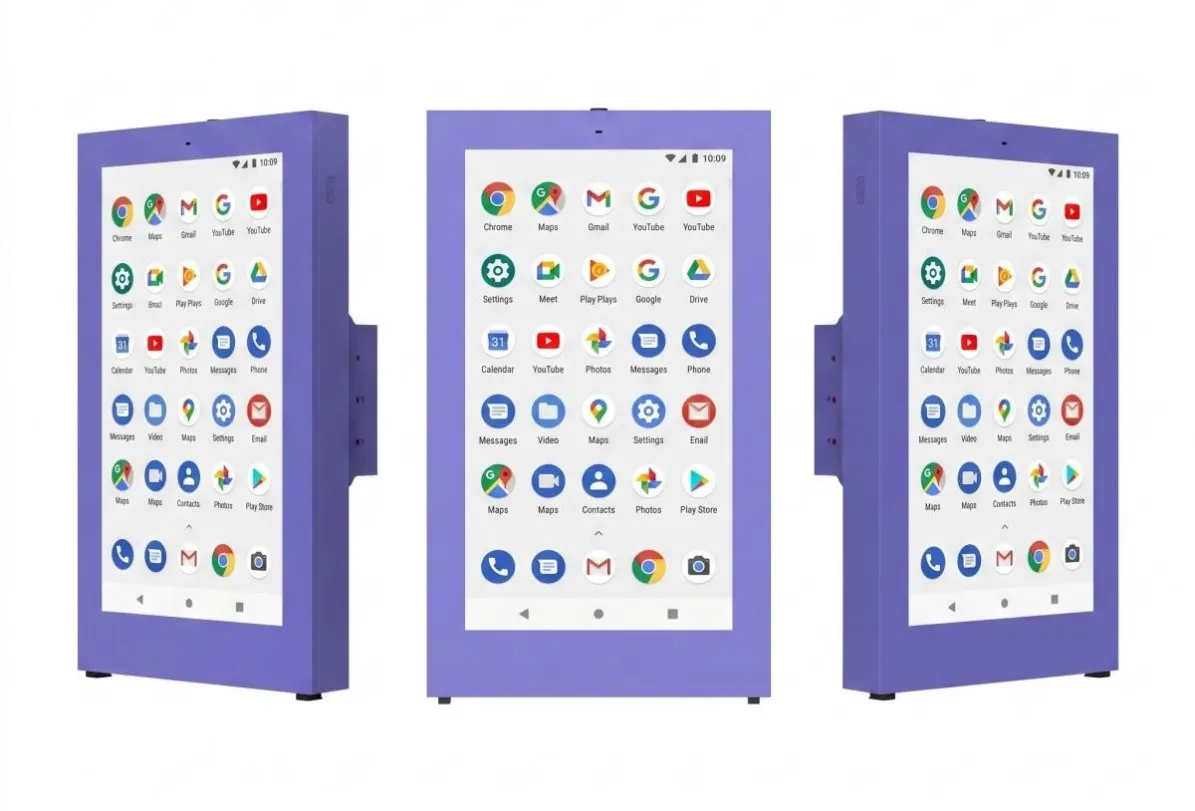

Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |

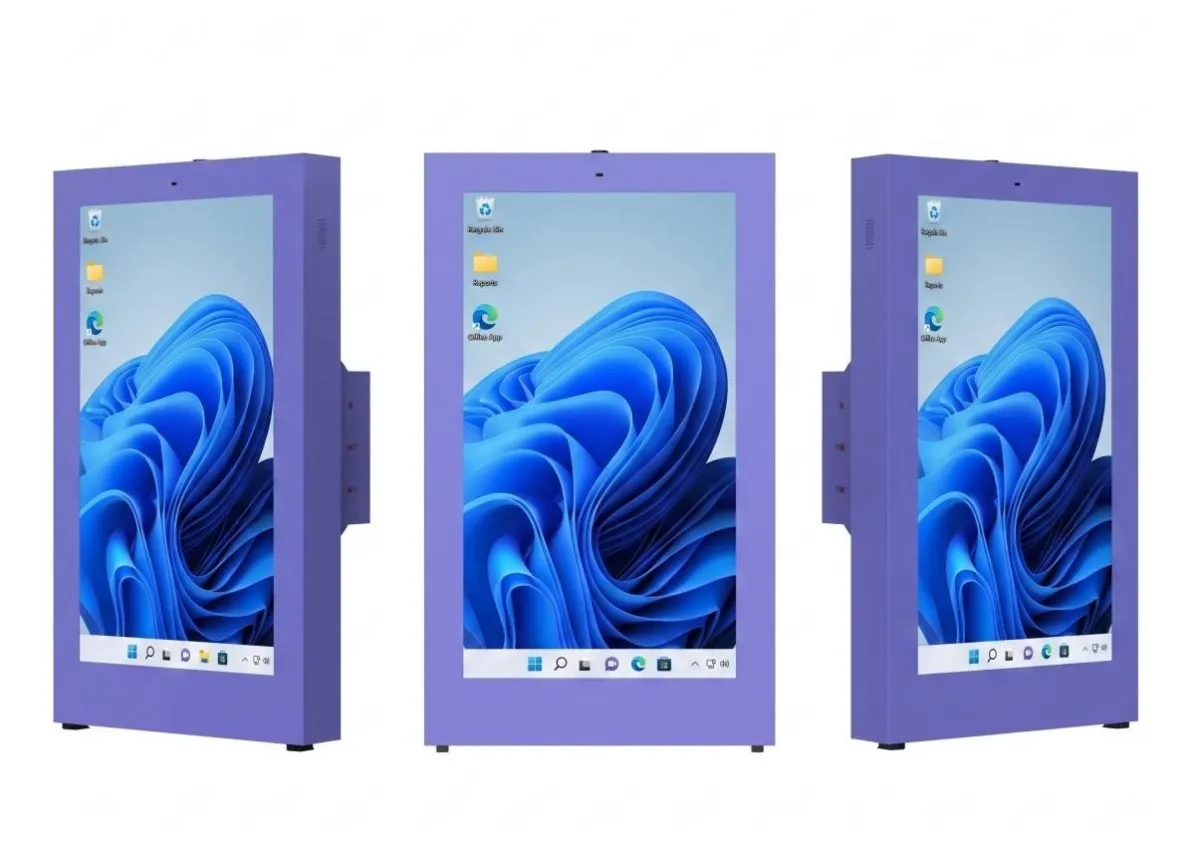

Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||

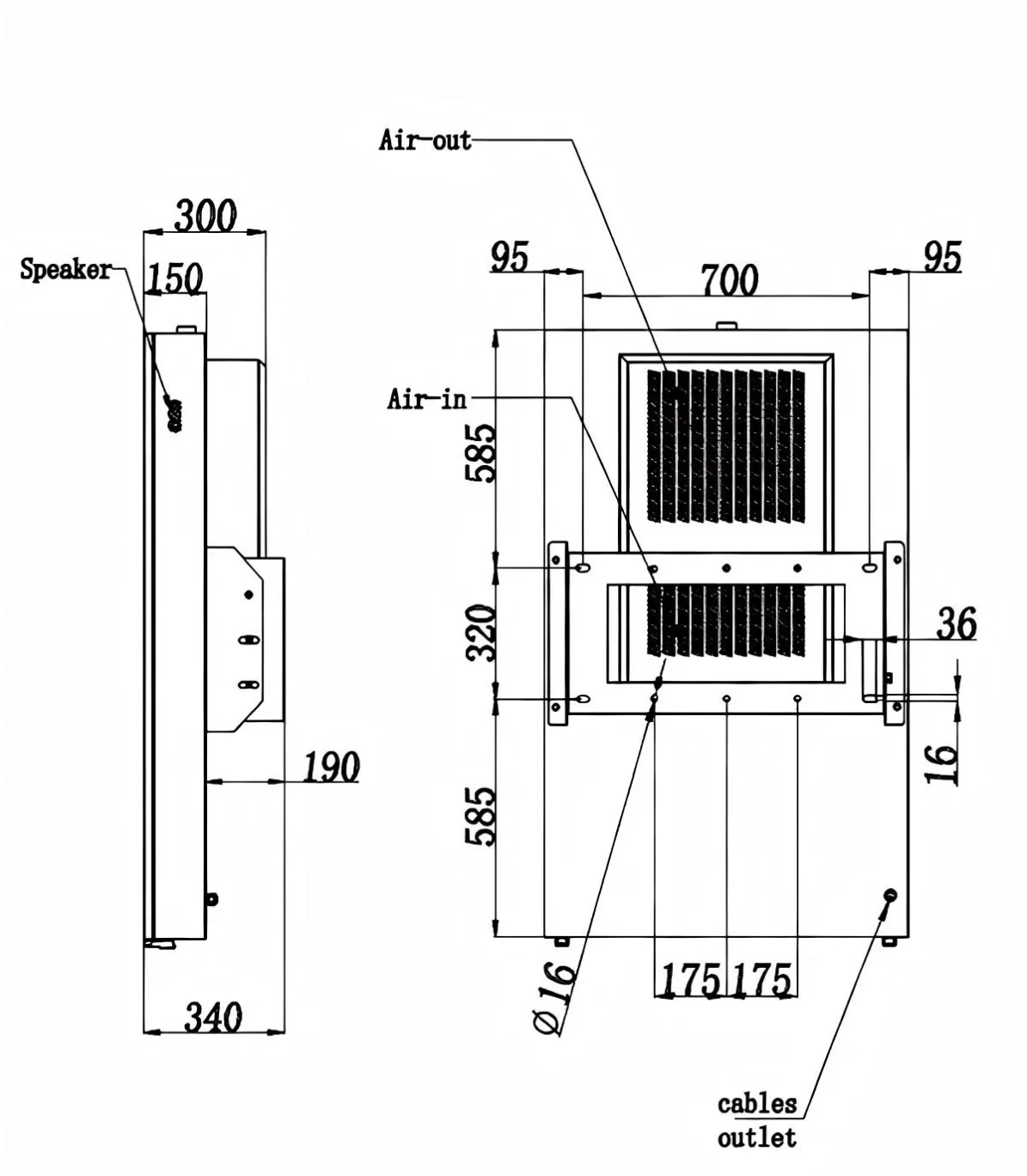

Built-in Air conditioner for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust internal temperature |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | -40℃～55℃ |
Working humidity | 5%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | 750W | |

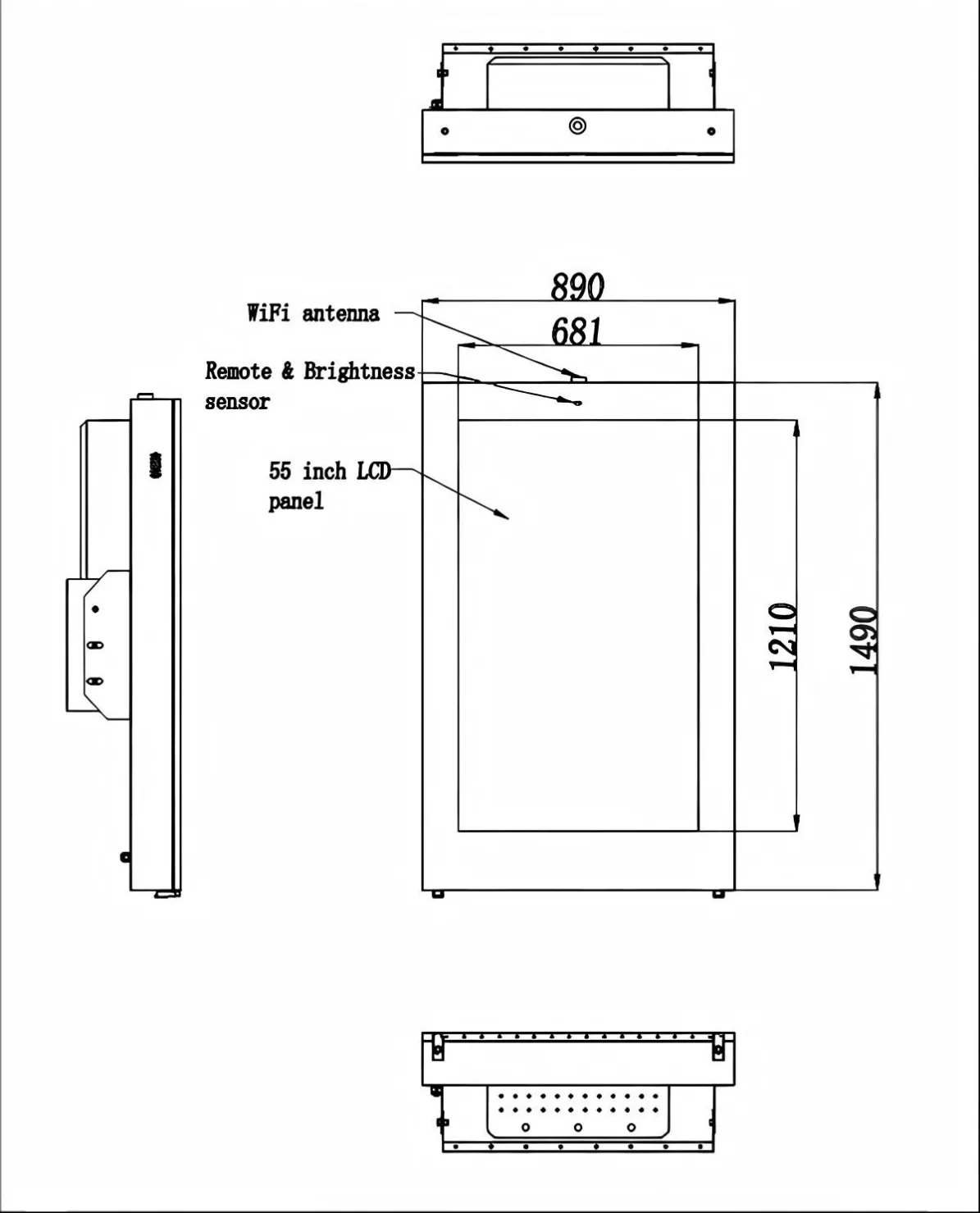

Mechanical parameters | Whole device dimension H*W*D | 1490*890*150mm |
Whole device net.weight(kg) | 115kg | |
Package dimension H*W*D(mm) | 1720*1040*490mm | |
Gross packing(kg) | 145kg | |
A Mid-Size Screen for Outdoor Walls
At 55 inches, the display can support advertising and public information at medium viewing distances without creating the structural demands of an 86- or 98-inch cabinet.
Potential outdoor locations include:
- Municipal building exteriors
- Outdoor pedestrian streets
- Park service structures
- Exterior transit walls
- Public parking facilities
- Open-air event entrances
Wall mounting keeps the pedestrian surface clear, but cabinet projection and mounting height must be included in accessibility planning.
The Wall Becomes Part of the Product
The support structure must carry the cabinet, bracket and environmental loading. Power and network penetrations require weatherproof sealing.
The dark enclosure shown in the image can blend into a façade or branded media frame. Its final color and surface treatment should be documented before production.
Cooling and Outdoor Exposure
The 2500-nit panel supports daylight visibility. IP65 protection helps defend against dust and water jets.
Built-in air conditioning requires service access and unobstructed thermal operation. The display should not be tightly covered by decorative panels.
A smart-city application does not automatically include sensors or live data. The 55 Inch Air Conditioned Wall Mounted Outdoor Advertising Display provides the visual platform; interactive or data-driven functions require separate integration.
