Built-in Fan Version
Embedded Weatherproof Digital Signage 75 Inch 2500 Nits IP65 for Transit Hub Ads
Resolution:1920*1080 / 3840*2160 Operating system:Android / Windows os Back:Cold-rolled sheet metal board Frame:Unibody Aluminum
Specifications
- SKU
- ZXTLCD-OUTFHE750BLUE
75 Inch Embedded Weatherproof Digital Signage for Transit Hub Advertising
Passenger areas are already filled with signs, barriers and operating equipment. Adding another floor-standing kiosk can make circulation more difficult. This 75 Inch Embedded Weatherproof Digital Signage fits into a station wall or purpose-built media enclosure, keeping the walking area clear.

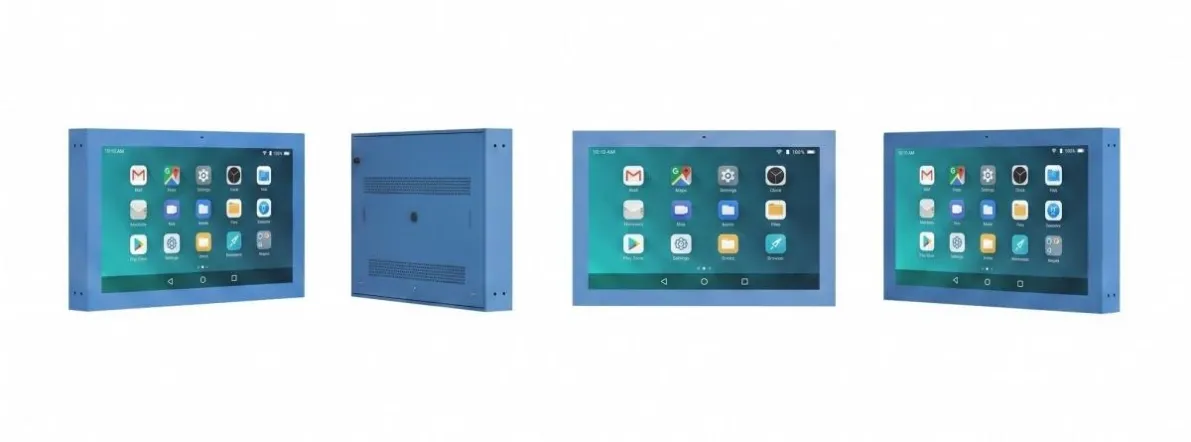

The product image shows a blue landscape display with a clean rectangular frame. Its format suits advertising videos, destination campaigns and wide passenger-information layouts.
75 Inch Outdoor landscape embedded digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size(mm) | 1651*929 | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤860W | |

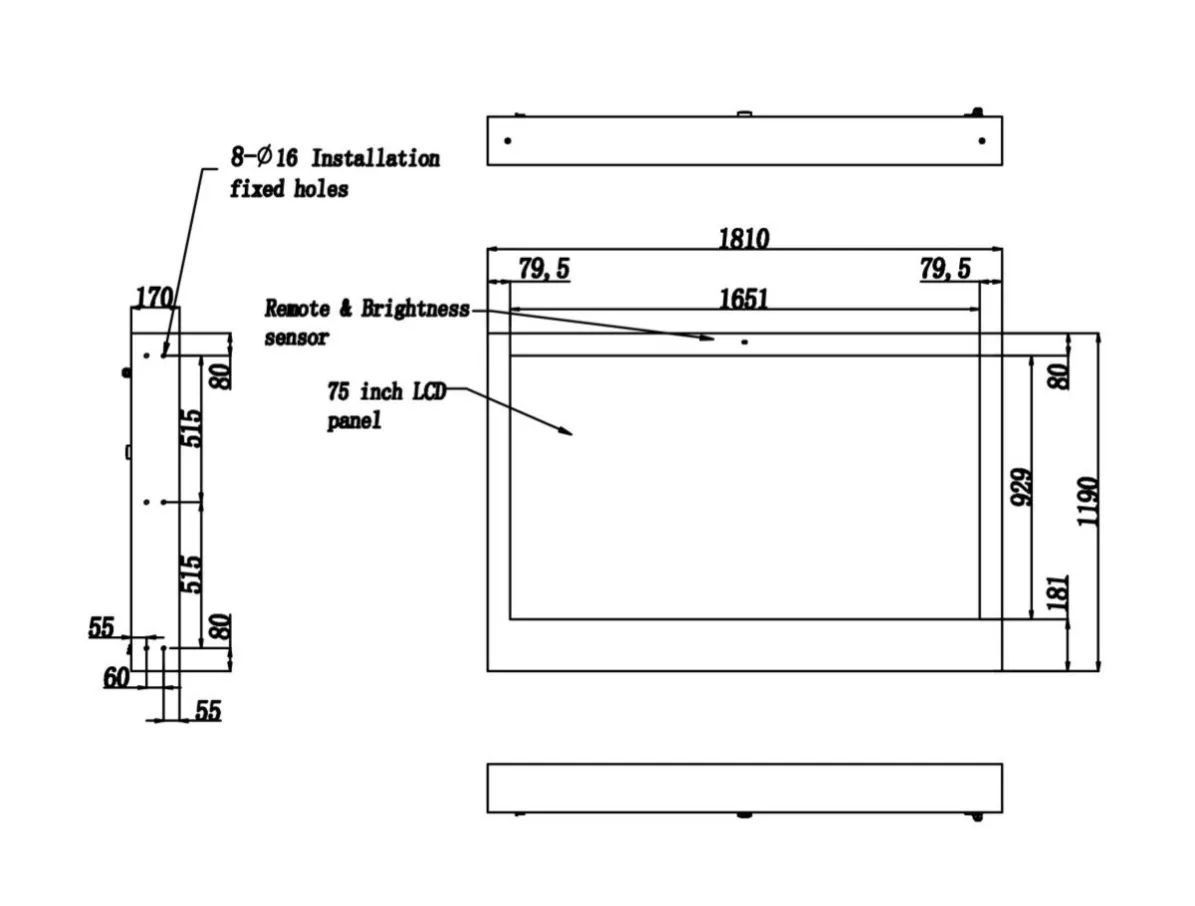

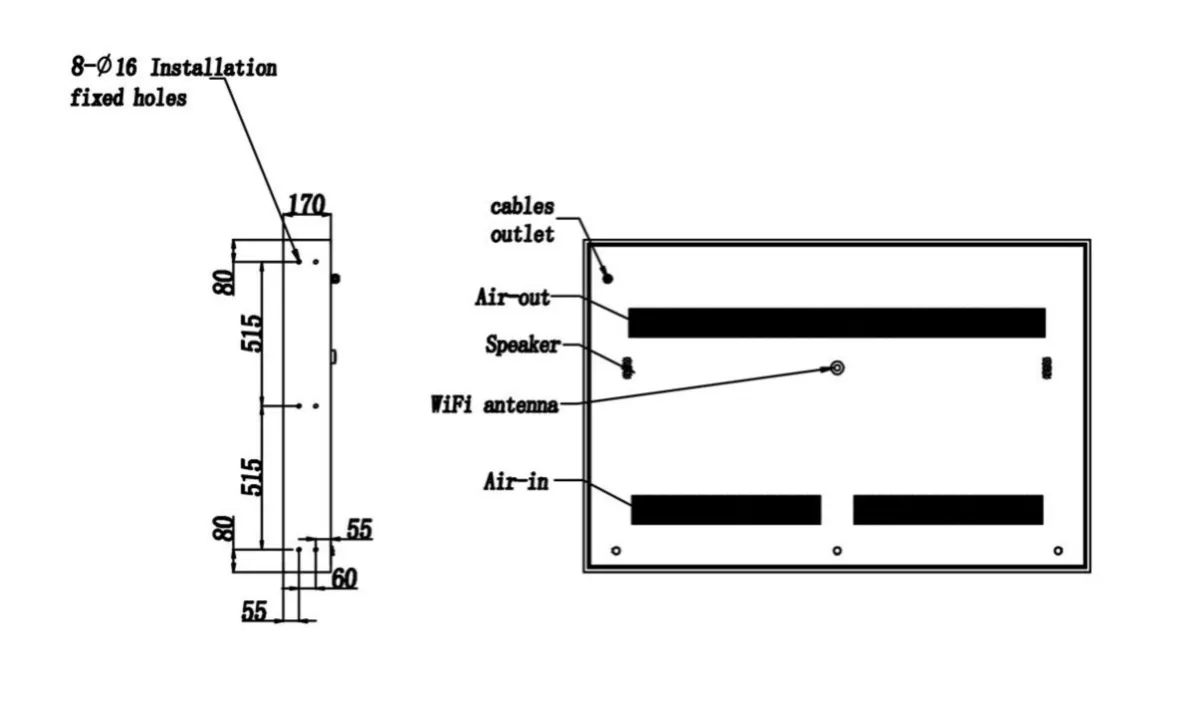

Mechanical Para | Machine seize H*W*D(mm) | 1190*1810*170 |
Net weight(Kg) | 150 | |
Package size H*W*D(mm) | 1390*2110*320 | |
Gross weight(Kg) | 200 | |
A Wall Position Changes How Content Is Seen
Passengers may view an embedded screen while walking parallel to the wall rather than approaching it directly. Headlines should therefore remain readable from an angle and should appear early in any animated sequence.
Useful placements include:
- Outdoor station entrances
- Covered platform walls
- Pedestrian transfer passages
- Exterior ticketing areas
- Park-and-ride facilities
The mounting height should account for seated passengers, standing passengers and temporary crowding.
Media and Passenger Information Can Coexist
The 75 Inch Embedded Weatherproof Digital Signage may carry commercial campaigns during normal operation and switch to service information when disruptions occur.
The content platform should allow authorized transport staff to override scheduled advertising. Without this capability, a technically connected screen may still fail its most important public-information role.
Installation Behind the Finished Surface
The display opening must be coordinated with the final wall material. Uneven edges, excessive gaps or an incorrectly sized trim frame can make the finished installation look improvised.
IP65 protection supports outdoor exposure, while fan cooling manages heat inside the cabinet. The recess needs a path for heat removal and a practical route for servicing.
Procurement Information
When requesting the 75 Inch Embedded Weatherproof Digital Signage, provide the wall construction, opening dimensions, expected viewing distance, installation height and access direction. These details allow the enclosure and mounting method to be reviewed before the façade work is completed.
