Built-in Fan Version
Embedded Outdoor LCD Display 65 Inch 2500 Nits IP65 for Transit Hub Ads
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTVE650PU
65 Inch Embedded Outdoor LCD Display for Exterior Transit Structures

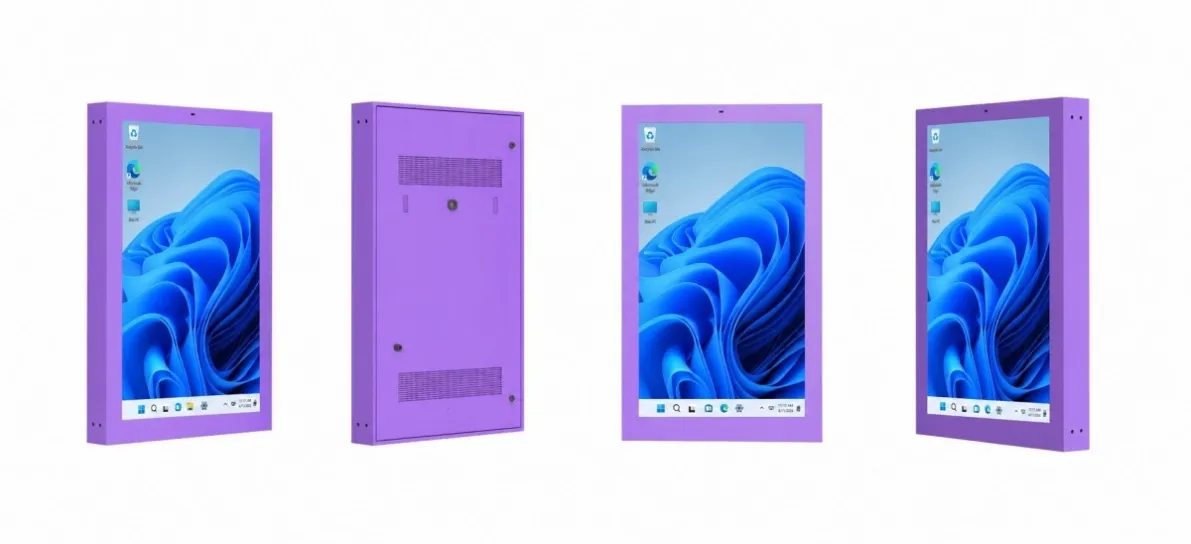

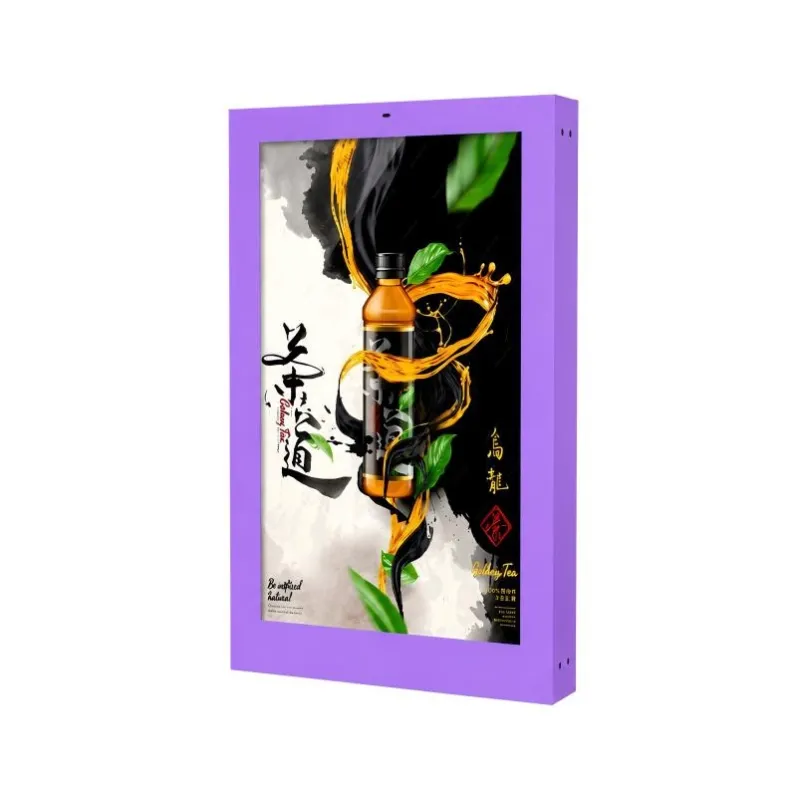

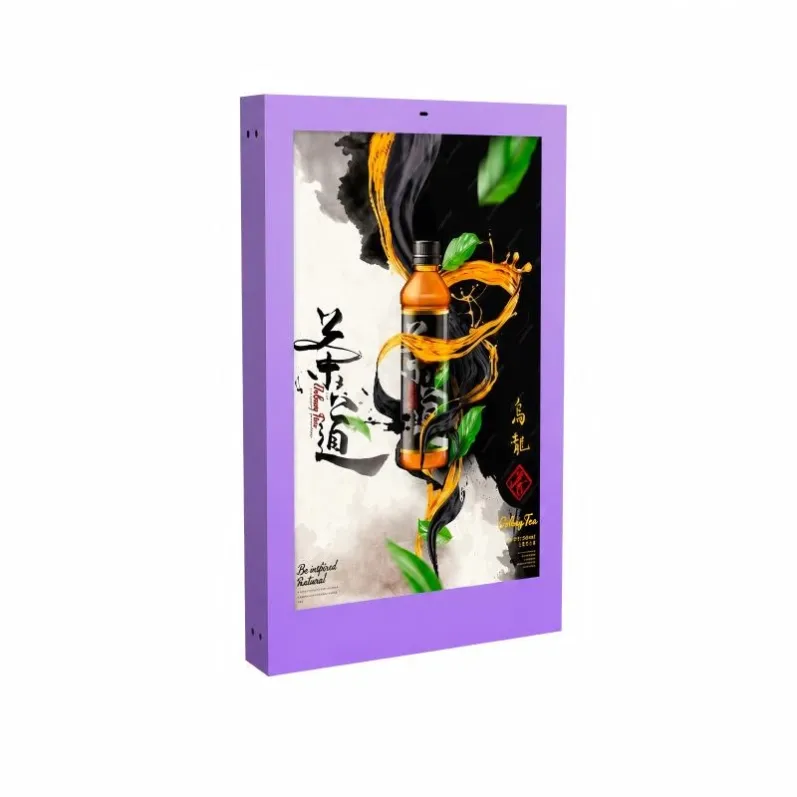

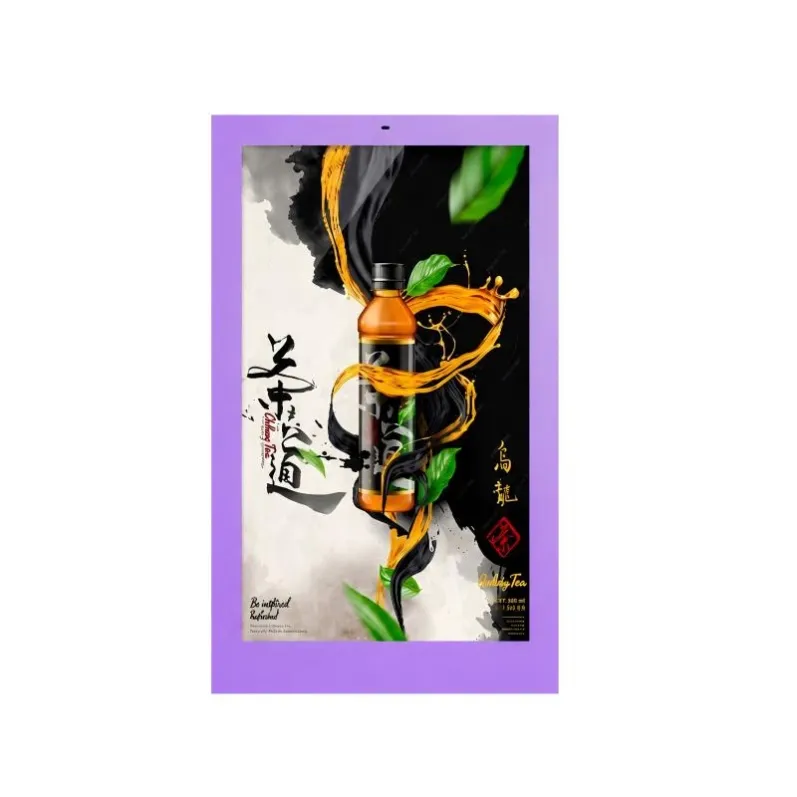

The product image shows a dark display surrounded by a purple-toned perimeter frame. There is no prominent freestanding base, indicating that the product is intended to be built into another outdoor structure.
The 65 Inch Embedded Outdoor LCD Display is specified with 2500-nit brightness, IP65 protection and built-in fan cooling. It can be integrated into exterior station walls, passenger information structures and outdoor advertising fixtures.
65 Inch Outdoor portrait displays embedded digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size(mm) | 1429*804 | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |

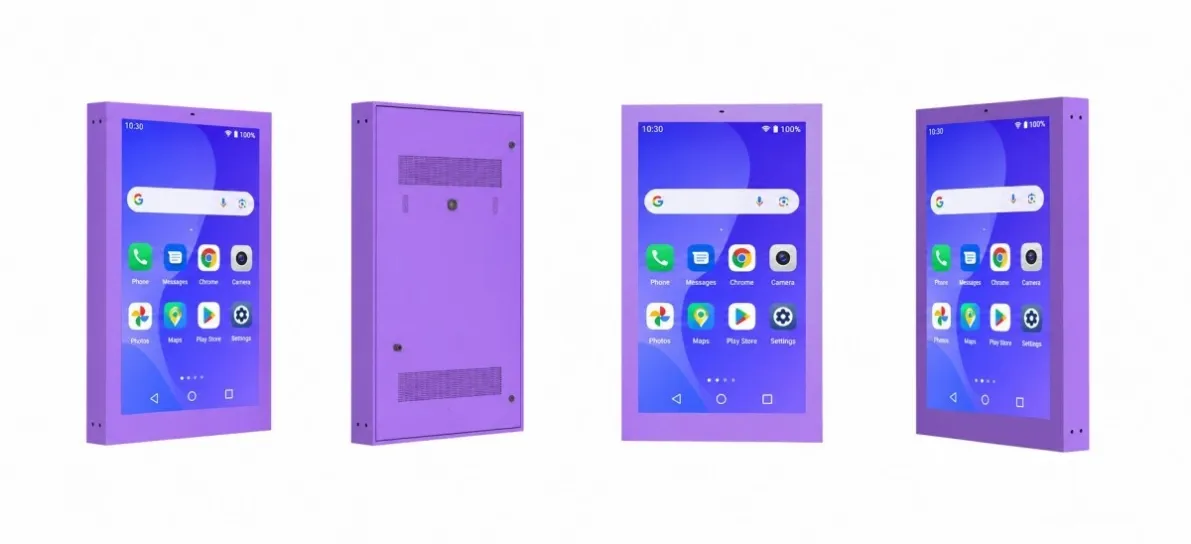

Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||

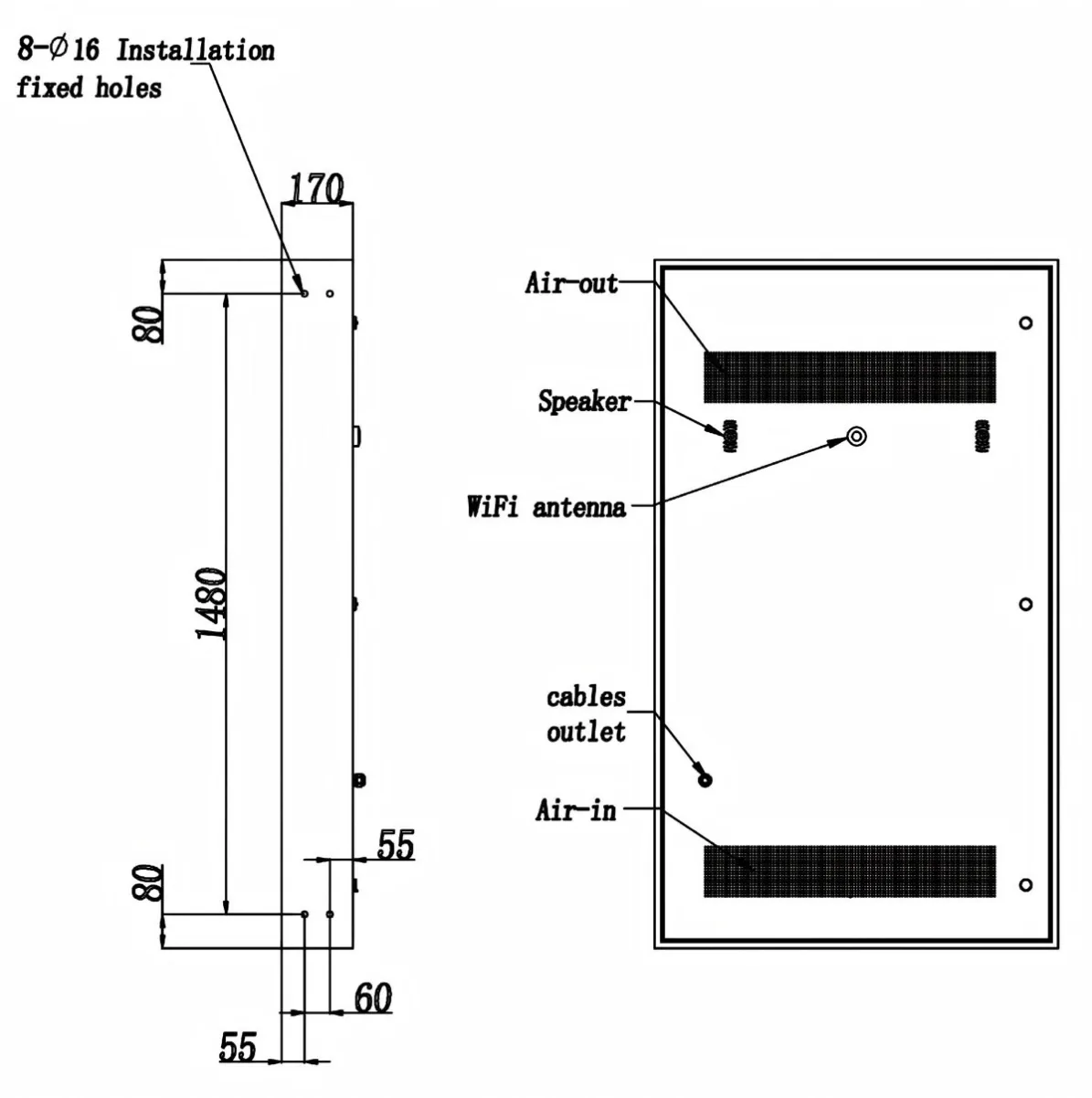

Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤700W | |

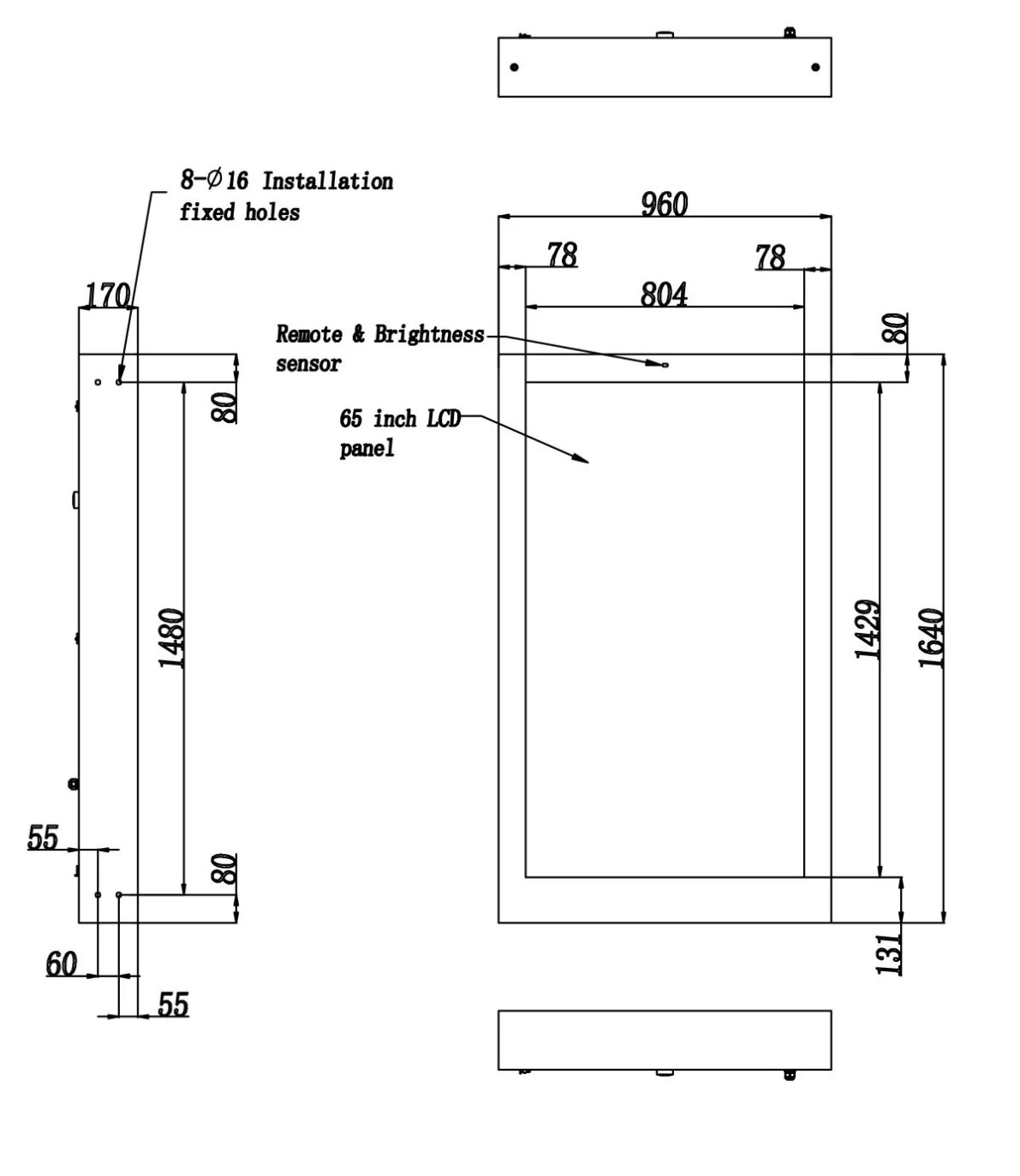

Mechanical Para | Machine seize H*W*D(mm) | 960*1590*170 |
Net weight(Kg) | 95 | |
Package size H*W*D(mm) | 1160*1890*320 | |
Gross weight(Kg) | 135 | |
Planning the Host Structure
An embedded screen depends on the construction around it. The project team needs accurate information about:
- Front opening dimensions
- Complete cabinet depth
- Rear or side service access
- Cooling clearance
- Cable entry positions
- Structural support
- Drainage around the opening
The surrounding frame should not direct rainwater toward cabinet joints or prevent service panels from opening.
Outdoor Transit Applications
Suitable installations include open-air station entrances, exterior platform structures, outdoor ticketing approaches and transport-interchange façades.
The display may carry passenger information or advertising. Safety and service messages must remain clearly distinguishable from commercial campaigns.
A 65-inch screen works well at medium viewing distances. It can show a full-screen advertisement or structured direction without occupying the architectural space required by a 98-inch unit.
High-Brightness Embedded Operation
The 2500-nit panel supports viewing under outdoor ambient light. The depth of the surrounding recess should not create shadows or reflections that reduce visibility.
IP65 protection helps defend the enclosure against dust and water jets. Installation work must preserve that protection.
Built-in fan cooling requires suitable airflow. An architect should not treat the rear of the display as unused sealed space.
FAQ
Can this display be installed flush with an exterior wall?
Potentially, provided the manufacturer’s opening, ventilation and service-access requirements are followed.
Is it a complete outdoor screen or only an LCD panel?
The product is presented as an IP65 outdoor display with cooling, not as a bare indoor panel.
The 65 Inch Embedded Outdoor LCD Display is most effective when screen integration, drainage and maintenance are resolved before the host structure is manufactured.
