Built-in Fan Version
Embedded Outdoor Digital Signage 32 Inch 2500 Nits IP65 for Public Information
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTVE320BL
32 Inch Embedded Outdoor Digital Signage for Exterior Information Points
The product image shows a narrow gold-toned perimeter surrounding a portrait display. There is no large floor-standing base, indicating that the unit is intended to sit inside another outdoor structure rather than operate as a standalone kiosk.
This 32 Inch Embedded Outdoor Digital Signage model is specified with 2500-nit brightness, IP65 protection and built-in fan cooling.
32 Inch Outdoor portrait displays embedded digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size(mm) | 697*392 | |
Display ratio | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤230W | |
Mechanical Para | Machine seize H*W*D(mm) | 560*860*150 |
Net weight(Kg) | 40 | |
Package size H*W*D(mm) | 760*1160*300 | |
Gross weight(Kg) | 60 | |
Small Format, Specific Purpose
A 32-inch screen is best used where visitors stand relatively close to the installation. It can present entrance instructions, outdoor queue information, operating hours or a simple location map.
Suitable exterior integrations include:
- Outdoor ticketing structures
- Park entrance signs
- Exterior visitor-service walls
- Campus information monuments
- Outdoor payment areas
- Public-service enclosures
The screen should not be expected to carry dense timetables or long public documents. Content needs to be edited for a compact portrait display.
Integration Begins With the Opening

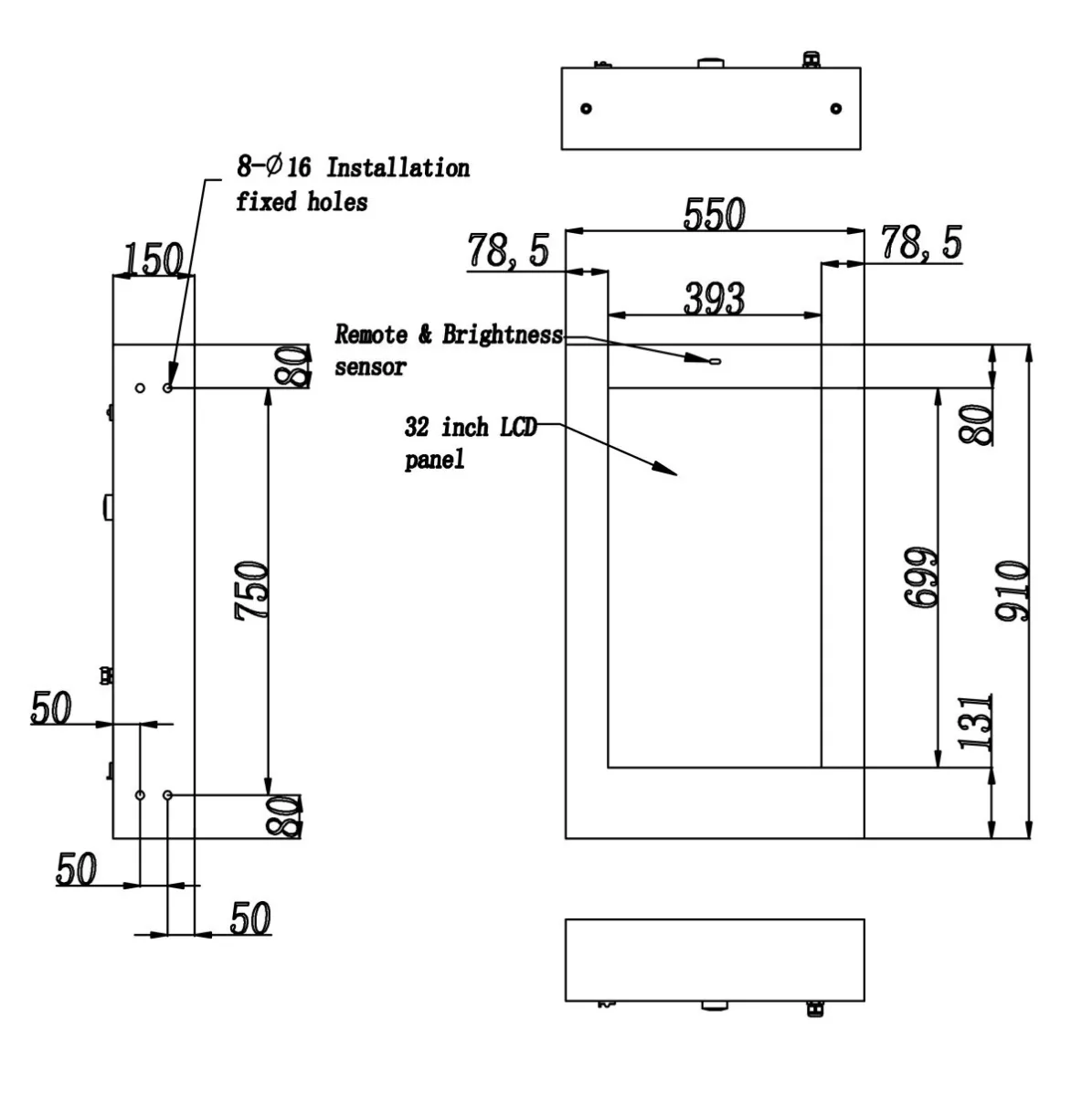

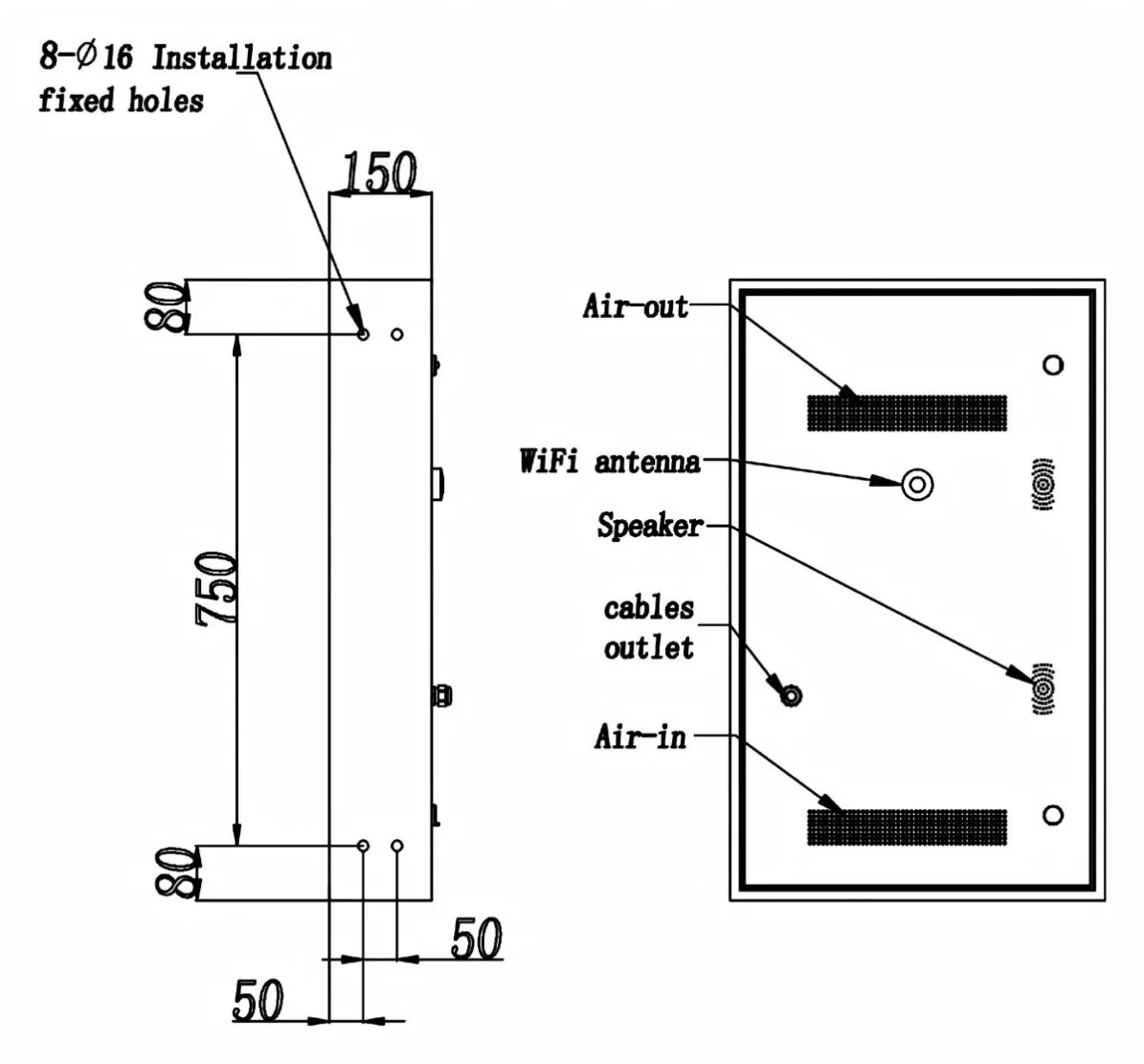

The surrounding structure requires a correctly sized opening and sufficient support for the complete enclosure. The designer also needs the display depth, cable positions, cooling clearance and service-access direction.
The gold-colored frame shown in the image may remain partly visible after installation. Its final finish and available color options should be confirmed rather than assumed from the thumbnail.
An embedded outdoor display must not be sealed inside another unventilated box. Fan-cooling air paths need to remain functional.
Outdoor Reading Conditions
The 2500-nit brightness specification supports viewing under exterior ambient light. The position should still avoid unnecessary reflection and direct water runoff from the host structure.
IP65 protection helps defend against dust and water jets. Installation work around the perimeter and cable entries must preserve the enclosure seal.
FAQ
Is this a bare LCD panel?
No. It is presented as an IP65 outdoor digital signage unit with high brightness and built-in cooling.
Can it be installed flush with a wall?
Potentially, provided the specified opening, ventilation and maintenance clearances are maintained.
The 32 Inch Embedded Outdoor Digital Signage model provides a compact way to introduce changeable digital information into a custom outdoor sign or architectural fixture.
