Built-in Fan Version
86 Inch Weatherproof Digital Signage with 2500 Nits IP65 Embedded Design for Public Information
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTVE860TP
86 Inch Embedded Outdoor Digital Signage for Custom Public Structures

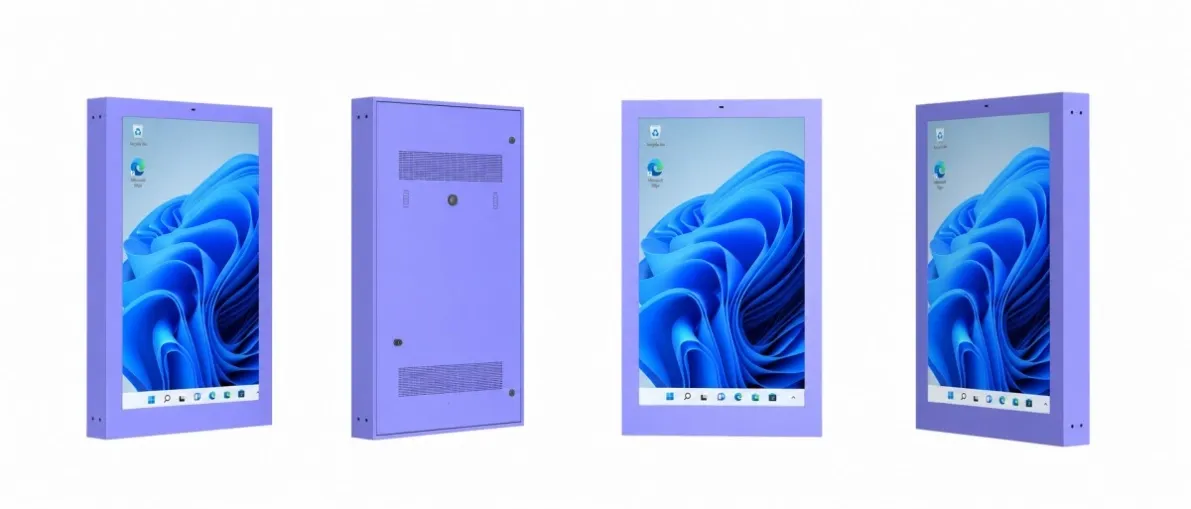

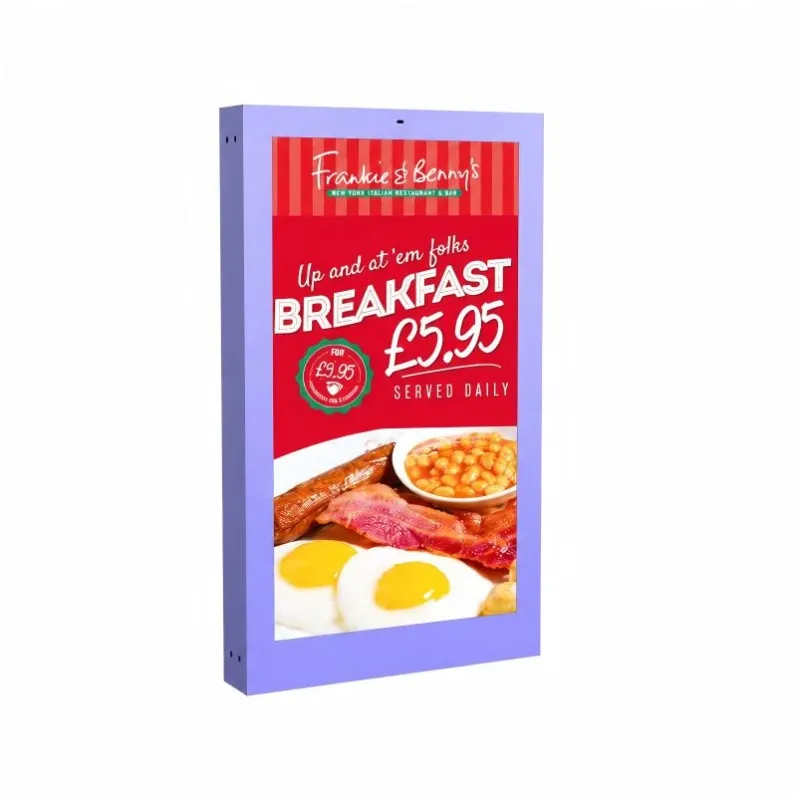

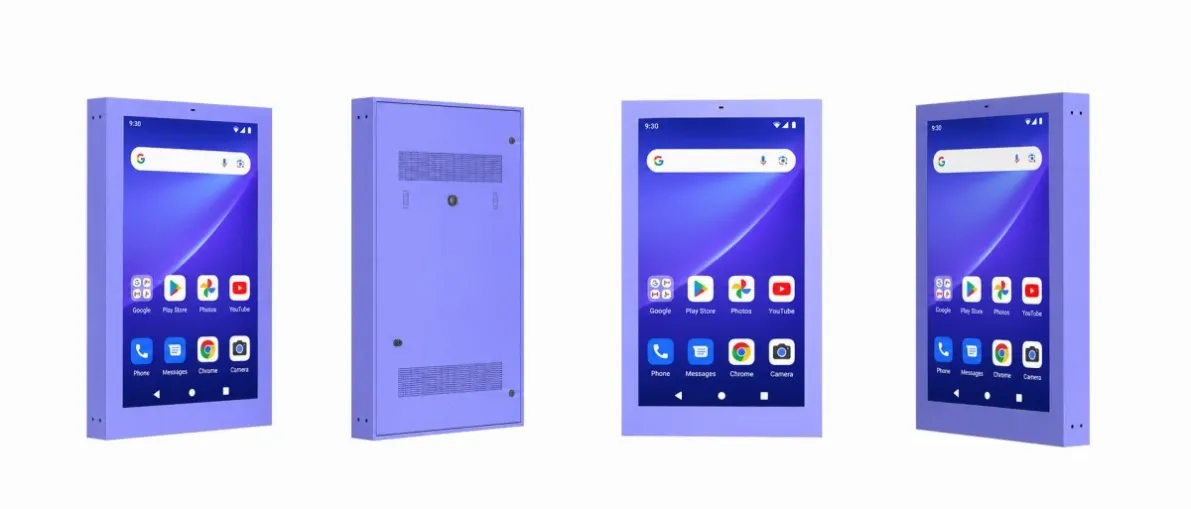

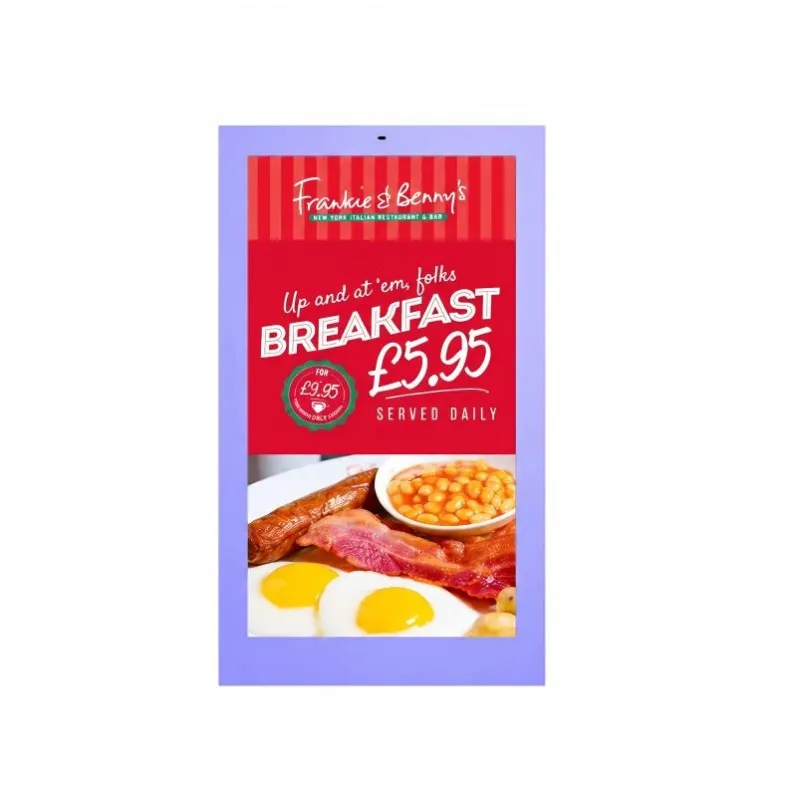

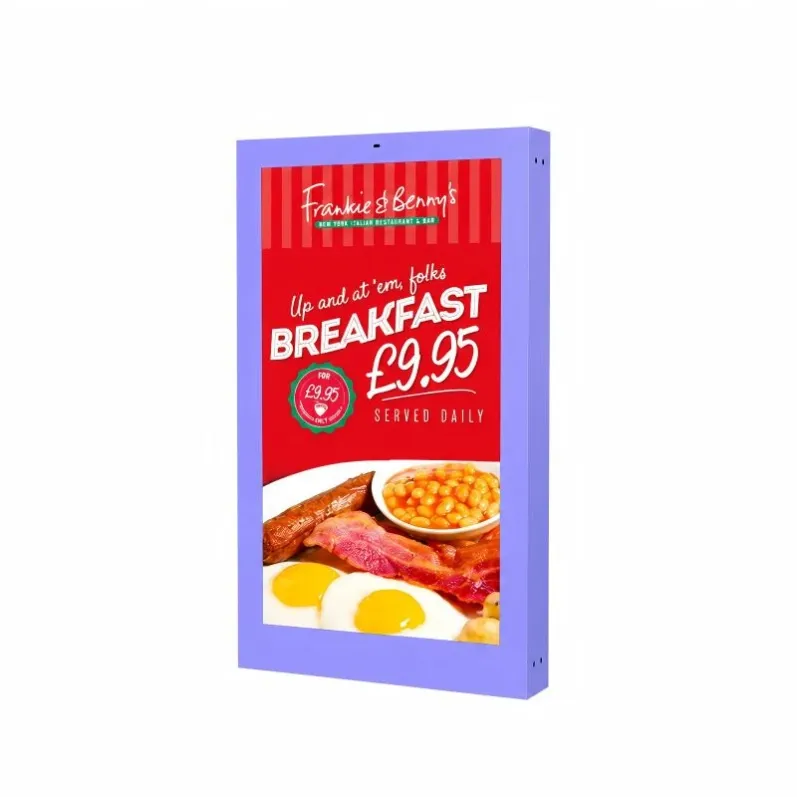

The product image shows a purple rectangular enclosure with a flat, relatively simple perimeter. It does not present the pronounced base of a conventional floor-standing kiosk. This appearance supports the old title’s Embedded Design description.
The 86 Inch Embedded Outdoor Digital Signage model is intended for integration into a custom outdoor wall, monument sign, information structure or architectural enclosure.
It is specified with 2500-nit brightness, IP65 protection and built-in fan cooling.
86 Inch Outdoor portrait displays embedded digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size(mm) | 1896*1066 | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤1300W | |
Mechanical Para | Machine seize H*W*D(mm) | 1340*2070*170 |
Net weight(Kg) | 190 | |
Package size H*W*D(mm) | 1540*2370*320 | |
Gross weight(Kg) | 250 | |
Embedded Does Not Mean Indoor
An embedded screen can still be a complete outdoor display. In this case, the high-brightness panel, IP rating and cooling classification identify it as equipment intended for exterior use.
Possible installation locations include:
- Outdoor municipal information walls
- Exterior visitor-center façades
- Public plaza information structures
- Outdoor campus monuments
- Park entrance signs
- Weather-exposed transport structures
The surrounding construction should not reduce the display’s environmental protection or block its ventilation.
Integration Dimensions Matter

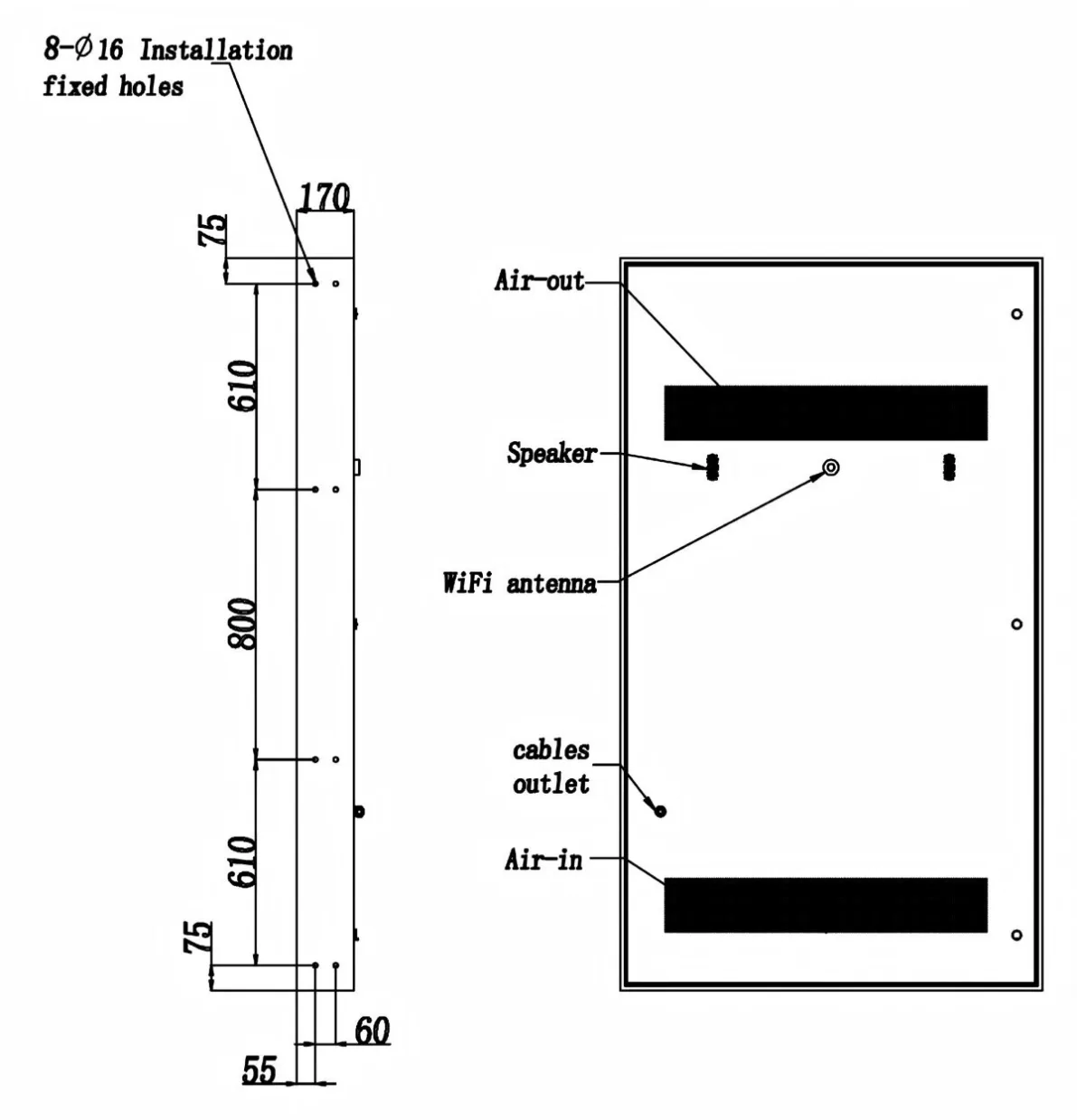

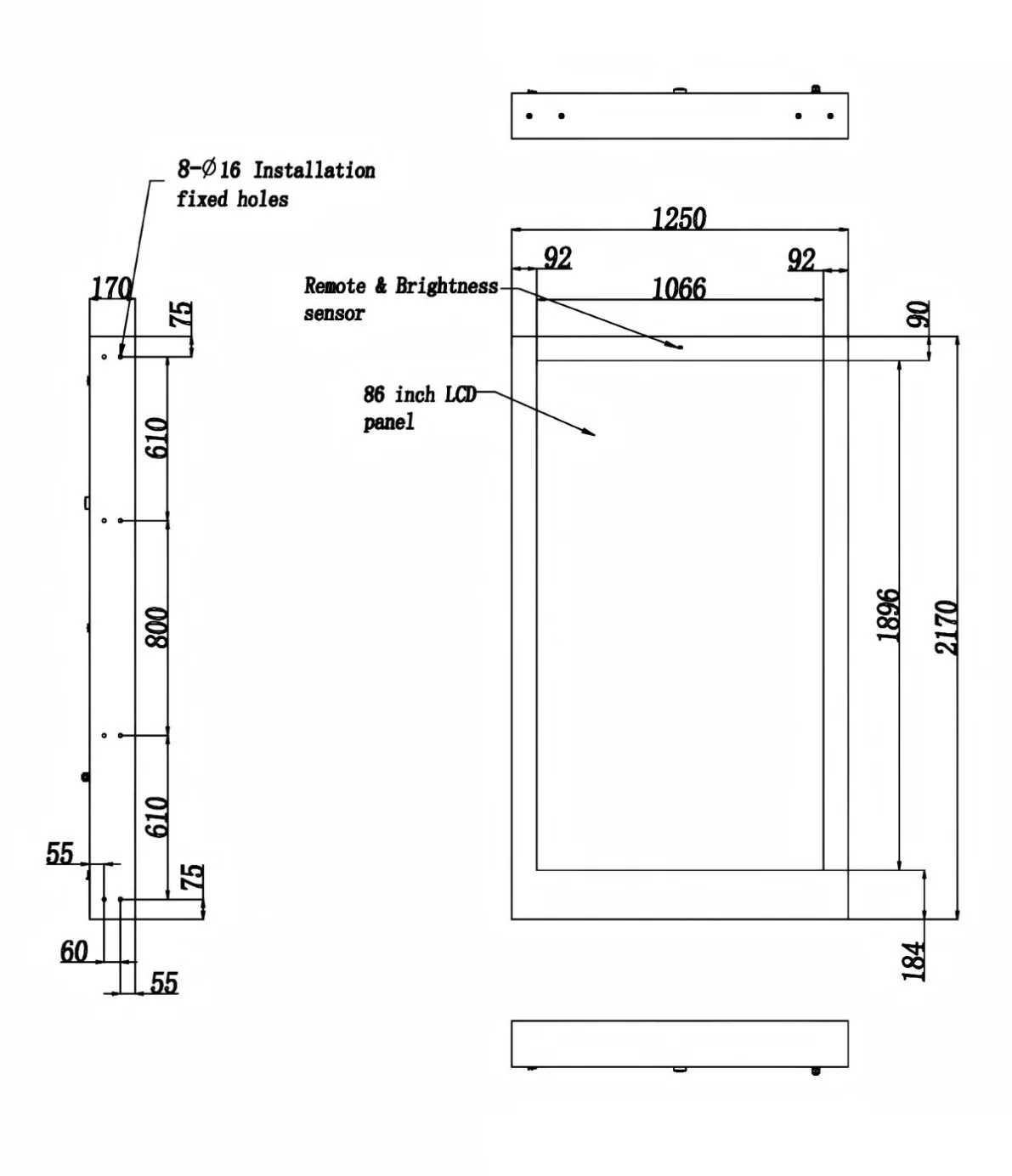

The visible front dimensions are only part of an embedded installation. The designer also needs the cabinet depth, rear access requirement, cable positions and required ventilation clearance.
The purple finish shown in the image may be a sample or rendering color. If most of the enclosure will remain visible after installation, final coating should be coordinated with the surrounding structure.
The screen should not be tightly sealed inside an additional box unless the manufacturer has approved the resulting thermal design.
Designing Public Information
The large portrait screen can carry maps, outdoor event information, emergency messages and location directions. Text should remain readable at the expected approach distance.
Information that changes frequently should have a clear owner and update schedule. An attractive embedded screen quickly loses value when public notices remain outdated.
Weather and Cooling
The 2500-nit display supports high ambient light. IP65 protection helps defend against dust and water jets when all installation points remain properly sealed.
Built-in fan cooling requires clear air paths. Access panels in the surrounding structure should allow technicians to service the display without dismantling the complete façade.
The 86 Inch Embedded Outdoor Digital Signage model is best specified as part of the architectural structure from the beginning rather than added after construction is complete.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
