Built-in Fan Version
86 Inch 2500 Nits IP65 Outdoor LCD Display Embedded Fan Cooling for EV Charging Ads
Back:Cold-rolled sheet metal board Frame:Unibody Aluminum Life:60000 Hours Protection Grade:IP65
Specifications
- SKU
- ZXTLCD-OUTFHE860GREEN
86 Inch Embedded Outdoor LCD Display for EV Charging Hubs
Large charging hubs increasingly combine energy services with retail, food and waiting facilities. An 86 Inch Embedded Outdoor LCD Display can be integrated into a canopy wall, service building or custom charging structure to communicate with several bays from one visible position.
The product image shows a wide dark enclosure with a green-toned campaign. Its landscape proportions are suitable for large-format media viewed from parked vehicles and nearby pedestrian areas.
86 Inch Outdoor landscape embedded digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size(mm) | 1896*1066 | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |

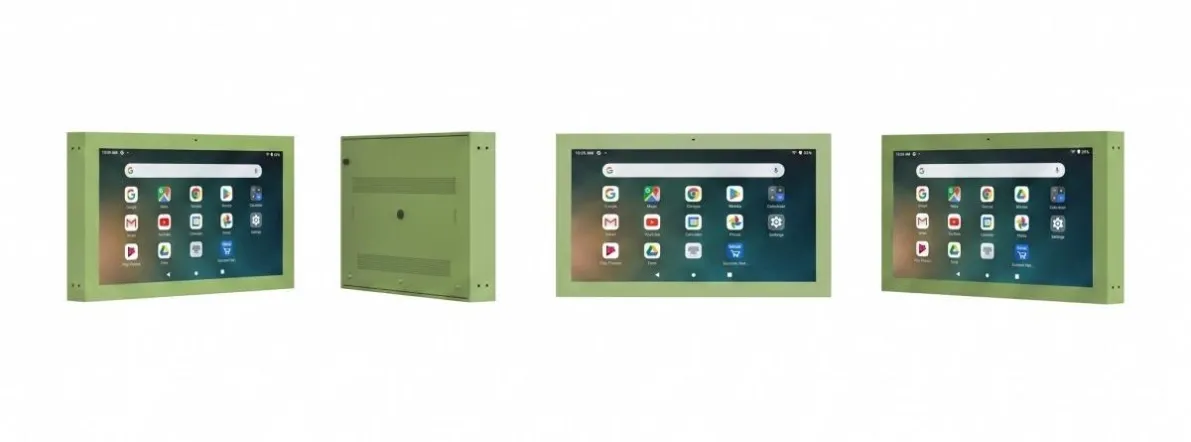

Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |

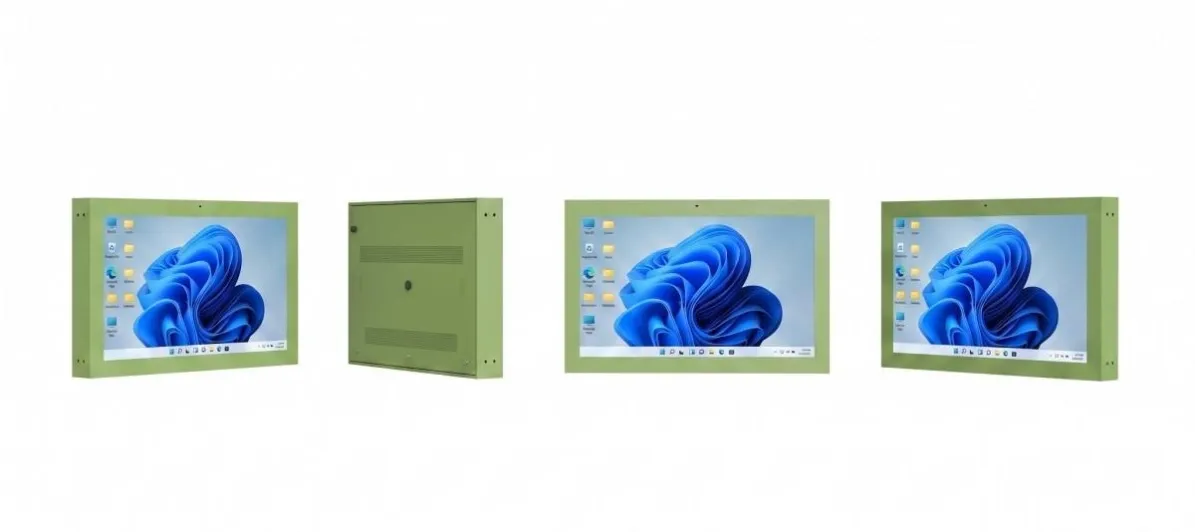

Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||

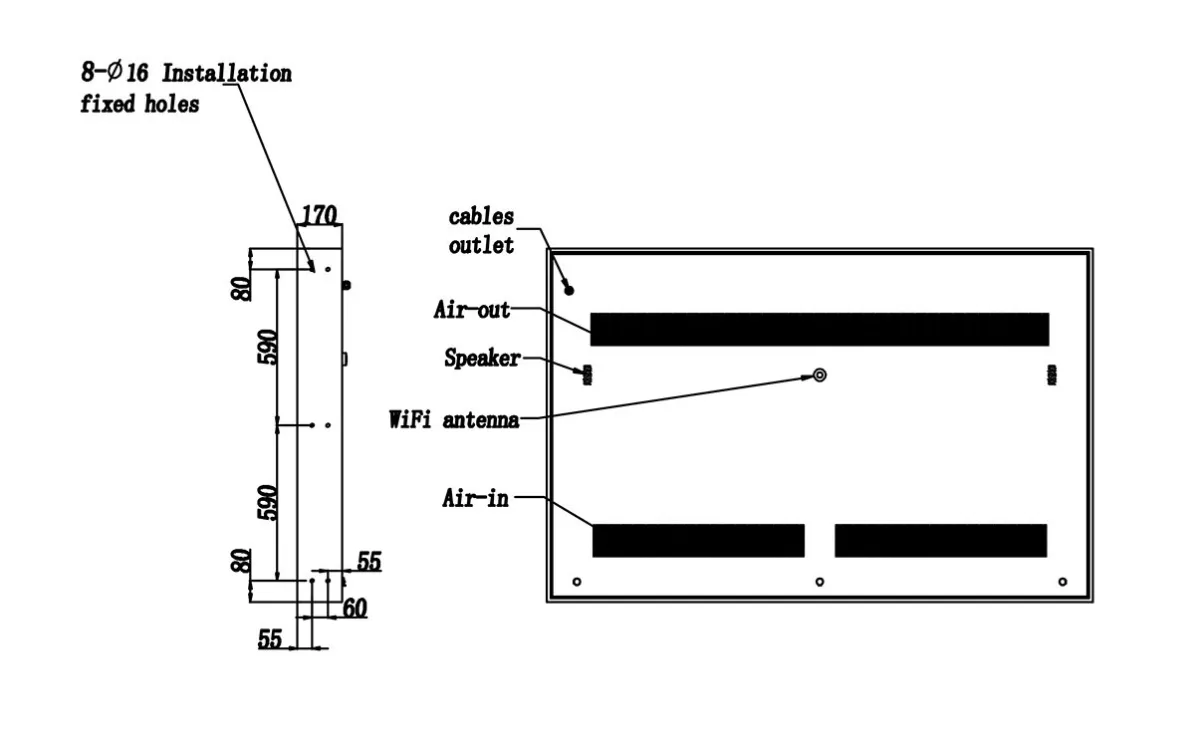

Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤1300W | |

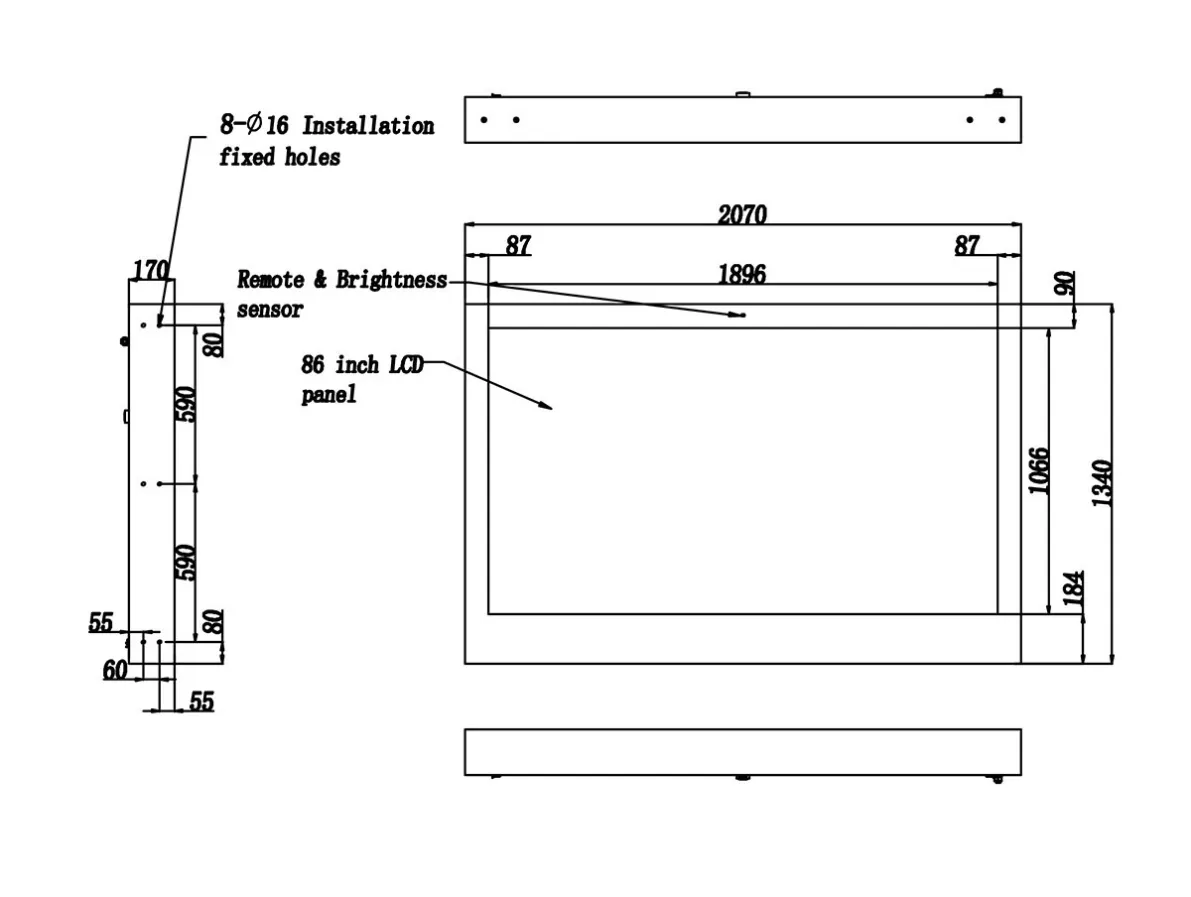

Mechanical Para | Machine seize H*W*D(mm) | 1340*2070*170 |
Net weight(Kg) | 190 | |
Package size H*W*D(mm) | 1540*2370*320 | |
Gross weight(Kg) | 250 | |
Separate Operational Content from Advertising
Drivers need practical information before promotional content. The playlist should establish a clear priority:
- Charging-site instructions
- Safety messages
- Support contact details
- Facility opening hours
- Nearby retail and food offers
- Paid advertising campaigns
The display should not show real-time charging availability unless it is connected to a verified data source. Static artwork that appears live can confuse drivers.
Design for Longer Dwell Time
EV users may remain at the site longer than customers at a petrol station, creating an opportunity for more useful content. Local maps, amenity information and changing retail offers can provide value without repeating one commercial every few seconds.
The 86 Inch Embedded Outdoor LCD Display is large enough to combine a main campaign with a smaller service-information area. However, critical instructions should remain visible even while advertising changes.
Engineering the Recess
An embedded unit needs more planning than a standalone cabinet. The project should define opening dimensions, cabinet depth, ventilation clearance and maintenance access before the host structure is fabricated.
Its 2500-nit panel supports bright outdoor viewing. IP65 protection and built-in fan cooling address outdoor operation, but the surrounding structure must not restrict airflow.
Evaluate the Complete Charging Environment
Screen position should avoid conflict with charging cables, vehicle manoeuvring and service access. Evening brightness also needs control so the display does not create excessive glare for drivers.
The 86 Inch Embedded Outdoor LCD Display is best treated as part of the charging-hub infrastructure, with content, installation and maintenance responsibilities established before the site opens.
