Built-in Fan Version
55 Inch Outdoor Digital Signage with 2500 Nits IP65 Embedded Design for Public Information
Front Panel:Toughened glass or acrylic,High transparency Protection Glass:6mm AR safe glass Installation:Floor standing or customized Network:WIFI / LAN / 3G / 4G Optional
Specifications
- SKU
- ZXTLCD-OUTFHE550B
55 Inch Embedded Outdoor Digital Signage for Public Information Walls
Many public facilities have limited pavement space but usable exterior wall areas. This 55 Inch Embedded Outdoor Digital Signage turns part of that wall into an updateable information point without introducing a freestanding obstacle.
The product image shows a green landscape screen within a dark frame. Its proportions can accommodate notices, local maps and facility information in a familiar wide-page layout.
55 Inch Outdoor landscape embedded digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | ELED |
Display size(mm) | 1210*681 | |
Display ratio | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 1500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤450W | |

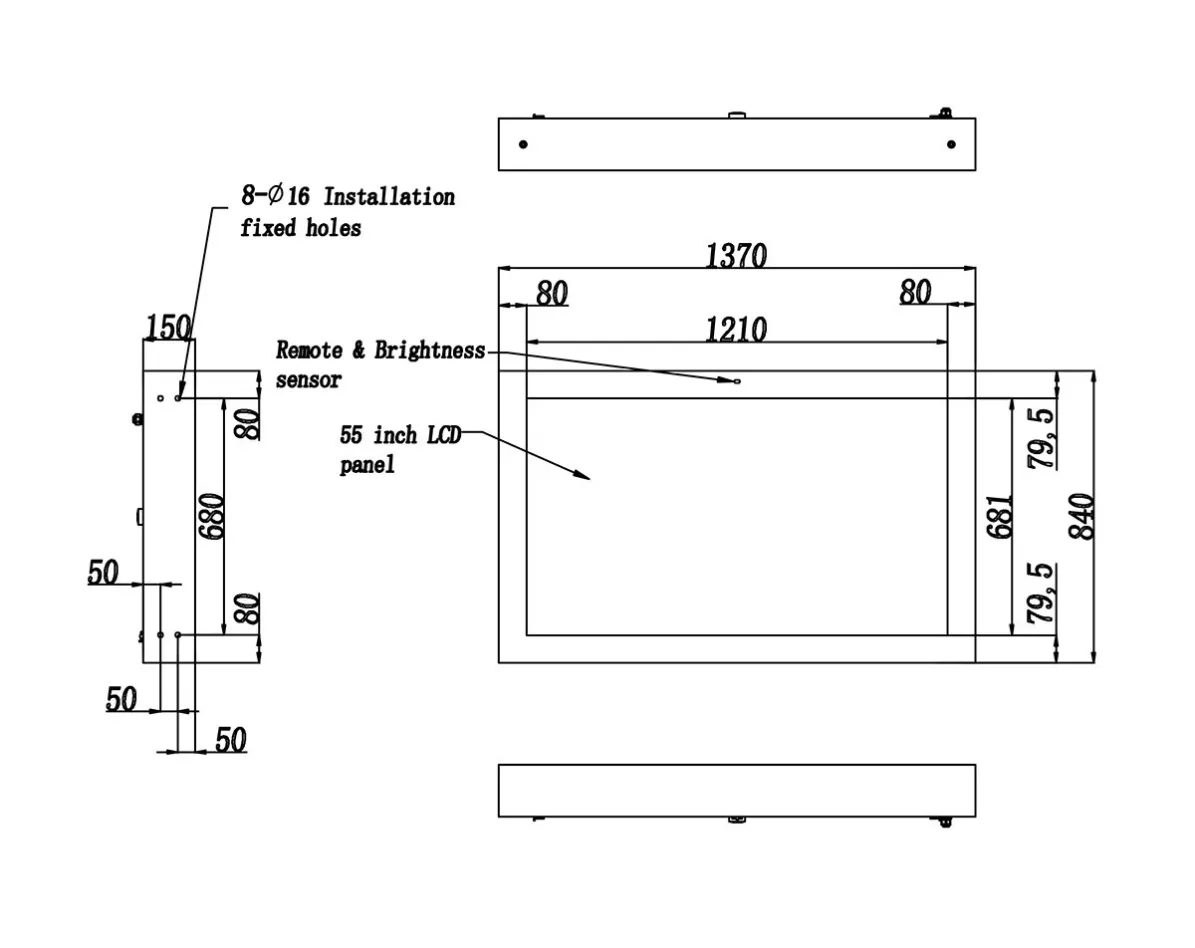

Mechanical Para | Machine seize H*W*D(mm) | 840*1370*150 |
Net weight(Kg) | 75 | |
Package size H*W*D(mm) | 1040*1670*300 | |
Gross weight(Kg) | 105 | |
Suitable Information Does Not Need Constant Animation
Public information screens are sometimes treated like advertising displays, with every page moving or changing quickly. Visitors looking for service hours or directions need more time.
The display can present:
- Building opening hours
- Appointment procedures
- Public-event notices
- Site maps
- Emergency contact details
- Temporary entrance changes
Important information should remain visible long enough to be read completely.
Installation Begins with the Service Route
Before cutting the wall opening, the contractor needs to determine how the 55 Inch Embedded Outdoor Digital Signage will be removed or serviced.
Rear access may be convenient in a new construction project. Front service may be required when the wall backs onto a finished room or structural area. This decision affects the enclosure, trim and surrounding wall design.
Brightness and Cabinet Environment
The 2500-nit panel supports outdoor visibility. IP65 protection and built-in fan cooling are designed for exterior operation.
The wall recess should not become a sealed hot chamber around the cabinet. Space for airflow, cabling and service access must be included in the architectural drawing.
Keep Public Content Accountable
Departments should have named responsibility for updating their own material. Every notice should also carry an expiry date inside the content-management workflow.
The 55 Inch Embedded Outdoor Digital Signage can reduce printed maintenance, but only when old digital notices are removed as reliably as old paper notices.
