Built-in Fan Version
55 Inch 2500 Nits IP65 Weatherproof Digital Signage Embedded Fan Cooling for EV Charging Ads
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTVE550YW
55 Inch Embedded Weatherproof Digital Signage for EV Charging Structures

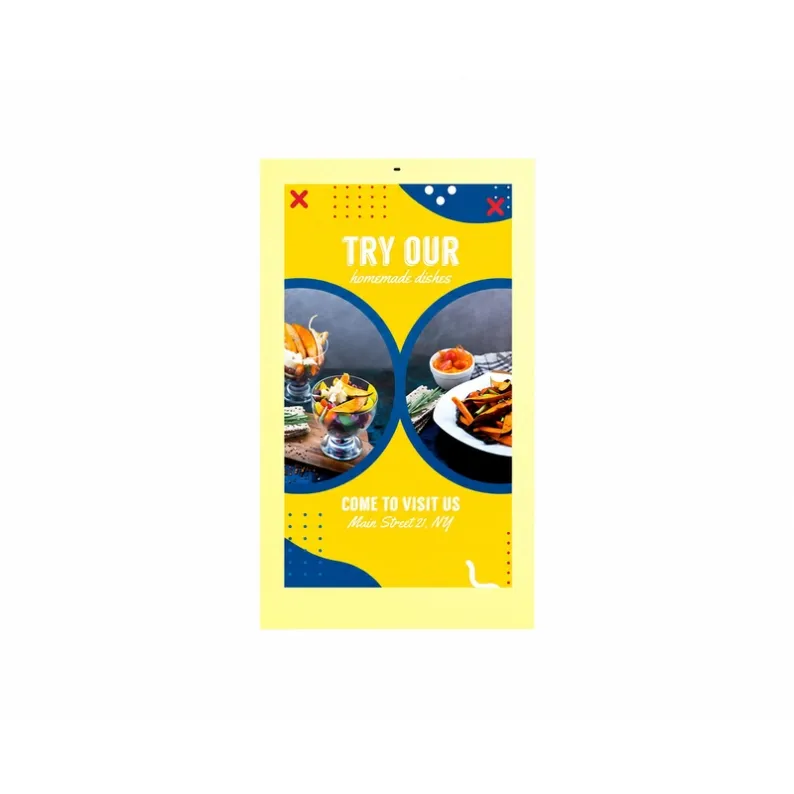

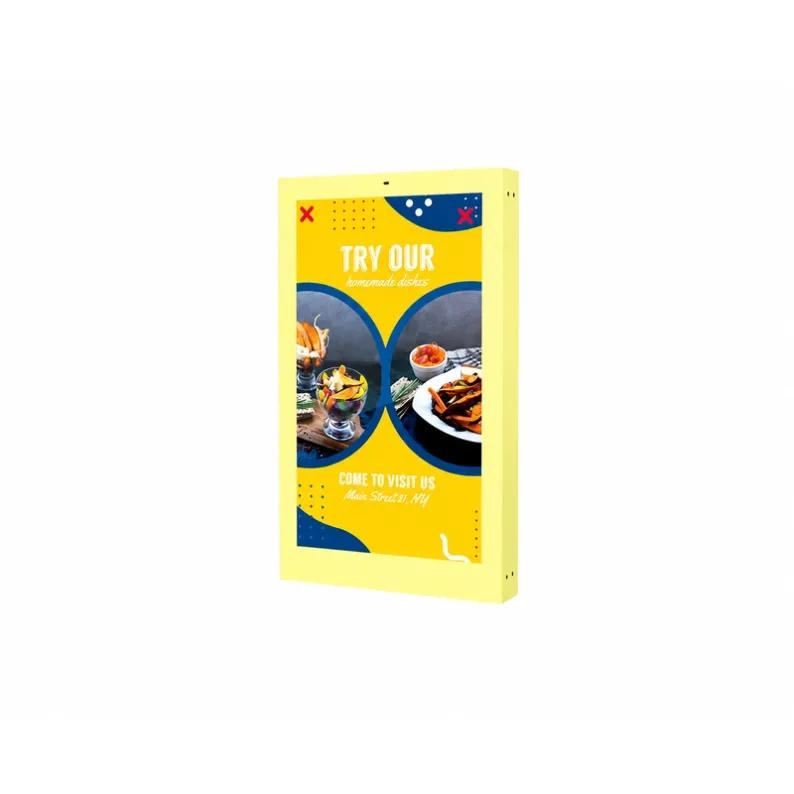

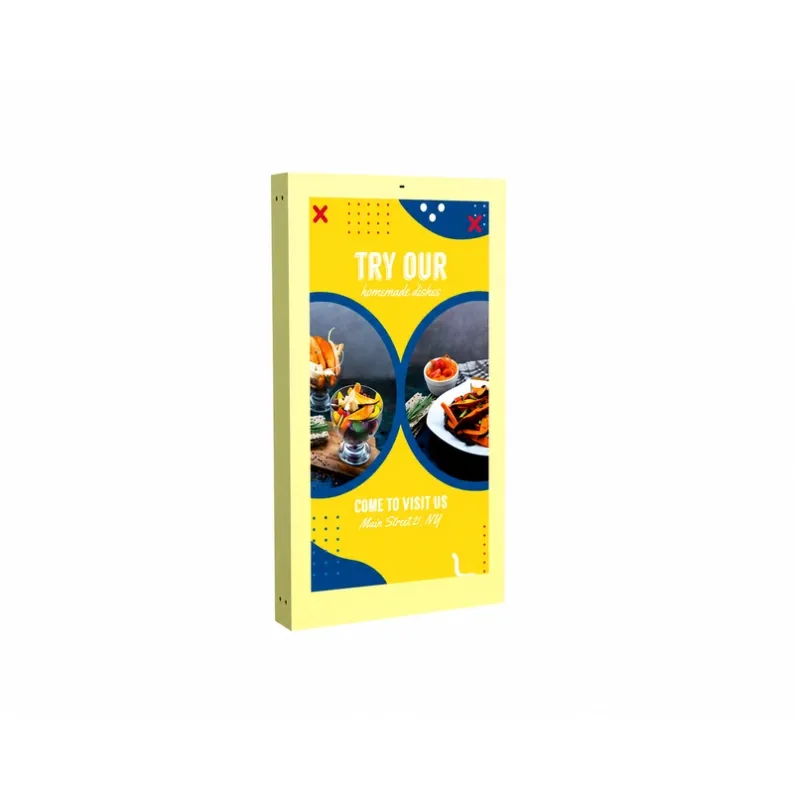

The product image shows a bright yellow rectangular enclosure with a flat front-facing display. It appears designed for integration into a larger outdoor fixture rather than use as a conventional floor-standing kiosk.
This 55 Inch Embedded Weatherproof Digital Signage unit is specified with 2500-nit brightness, IP65 protection and built-in fan cooling.
55 Inch Outdoor portrait displays embedded digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | ELED |
Display size(mm) | 1210*681 | |
Display ratio | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 1500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |

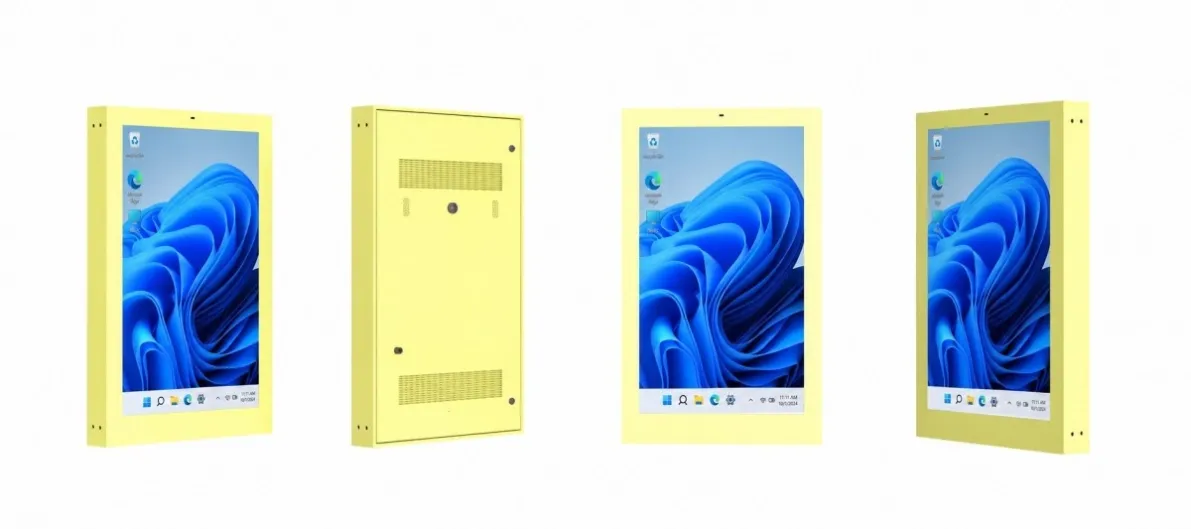

Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||

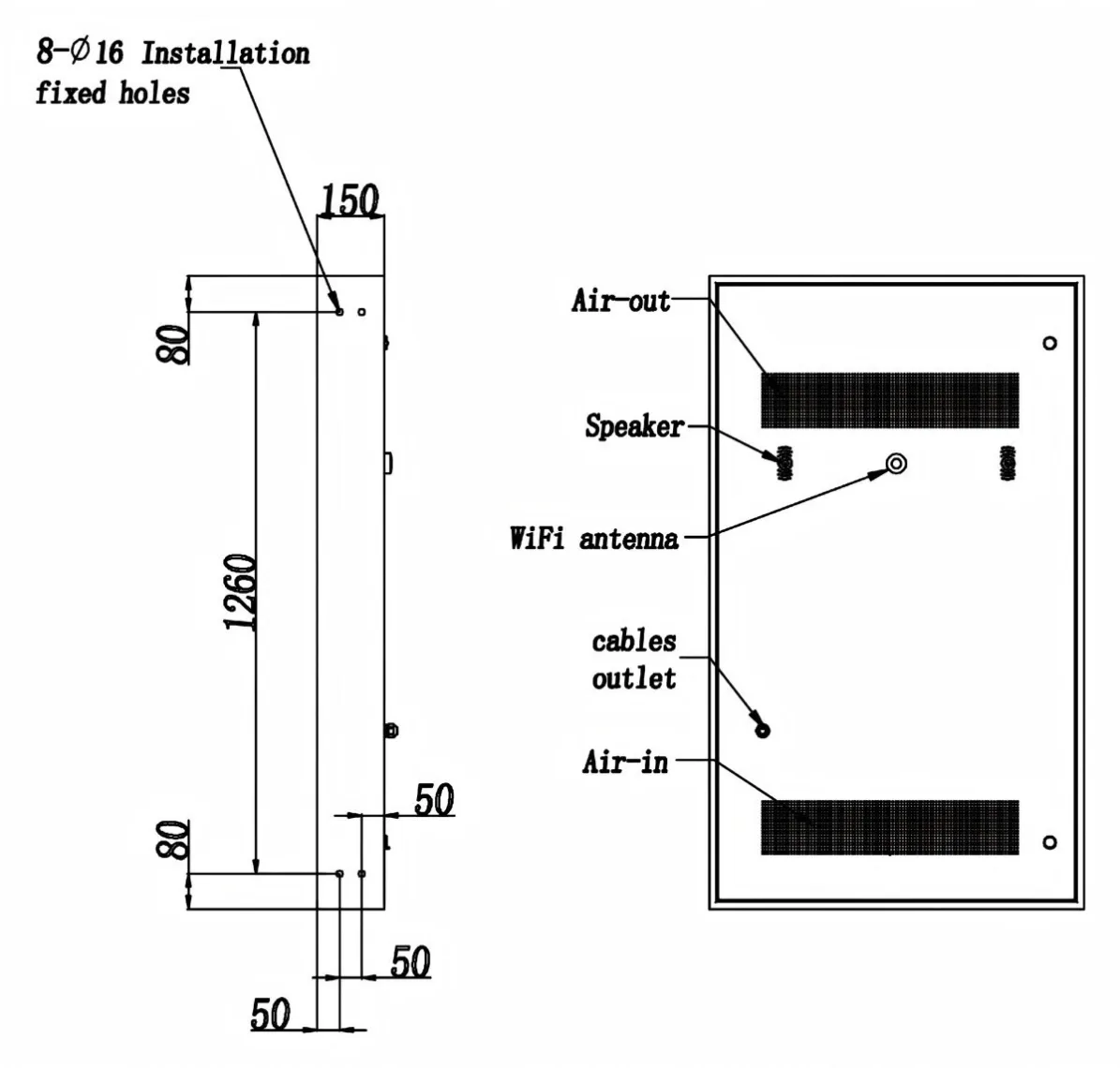

Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤450W | |

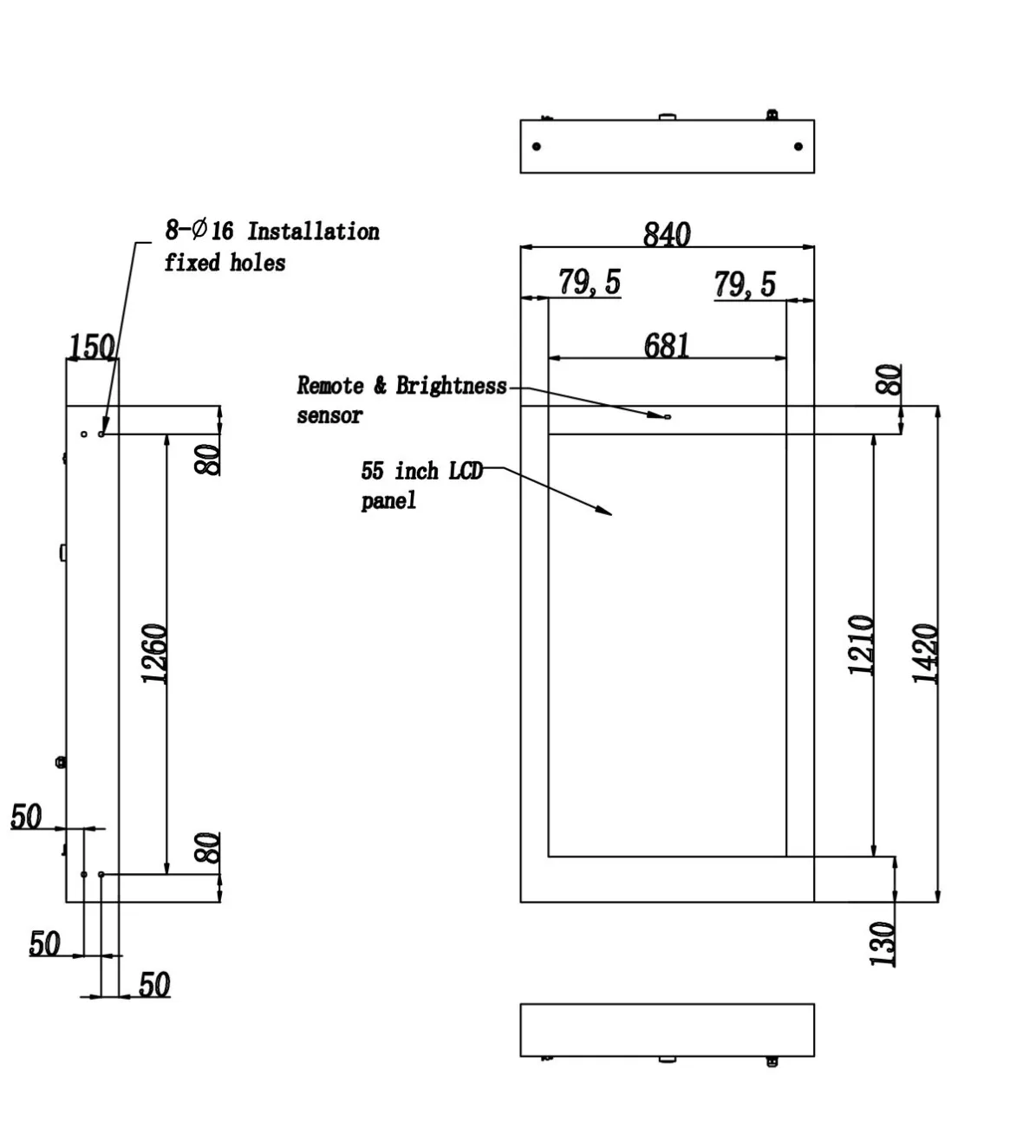

Mechanical Para | Machine seize H*W*D(mm) | 840*1370*150 |
Net weight(Kg) | 75 | |
Package size H*W*D(mm) | 1040*1670*300 | |
Gross weight(Kg) | 105 | |
Integrating Signage Near Charging Equipment
The screen may be built into an outdoor charging-station canopy, service monument, information wall or separate media structure.
It should not be built directly into charging equipment unless the complete electrical, thermal and service design has been approved. The signage and charger may require separate circuits and access arrangements.
Suitable content includes:
- Charging-site directions
- Safety instructions
- Nearby outdoor services
- Customer-support details
- Local advertising
- Site operating notices
Live charging status requires compatible software and data integration.
Working With the Yellow Frame
The bright yellow body shown in the image can make an information point easy to locate. However, the color should not be confused with safety markings required by local regulations.
The displayed finish is a product-image feature rather than a guaranteed standard color. Final coating and branding should be confirmed.
Outdoor Visibility and Service Access
The 2500-nit panel supports use in exposed daylight. The screen should be positioned where parked vehicles and charging equipment do not block it.
IP65 protection helps defend the enclosure from dust and water jets. Cable entries and surrounding construction need proper sealing and drainage.
Fan cooling requires unobstructed air paths. An embedded installation must include a removable access panel or another practical servicing method.
The 55 Inch Embedded Weatherproof Digital Signage format can create a cleaner outdoor charging-site installation when its cooling and maintenance requirements are planned together with the host structure.
