Built-in Fan Version
49 Inch Outdoor Advertising Display with 2500 Nits IP65 Embedded Design for Drive Thru Menus
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTVE490MG
49 Inch Embedded Outdoor Advertising Display for Drive-Thru Menu Structures

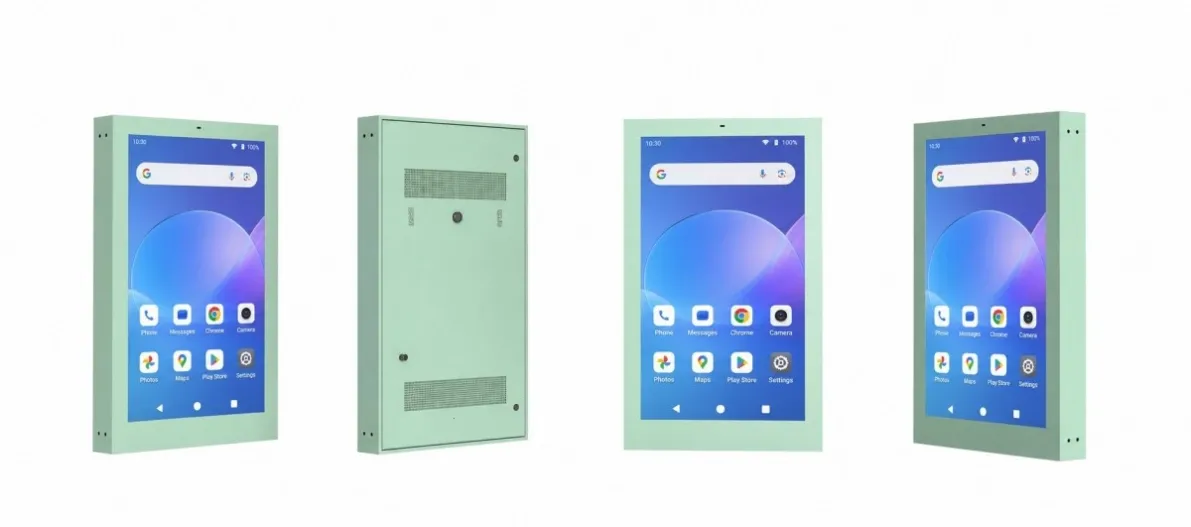

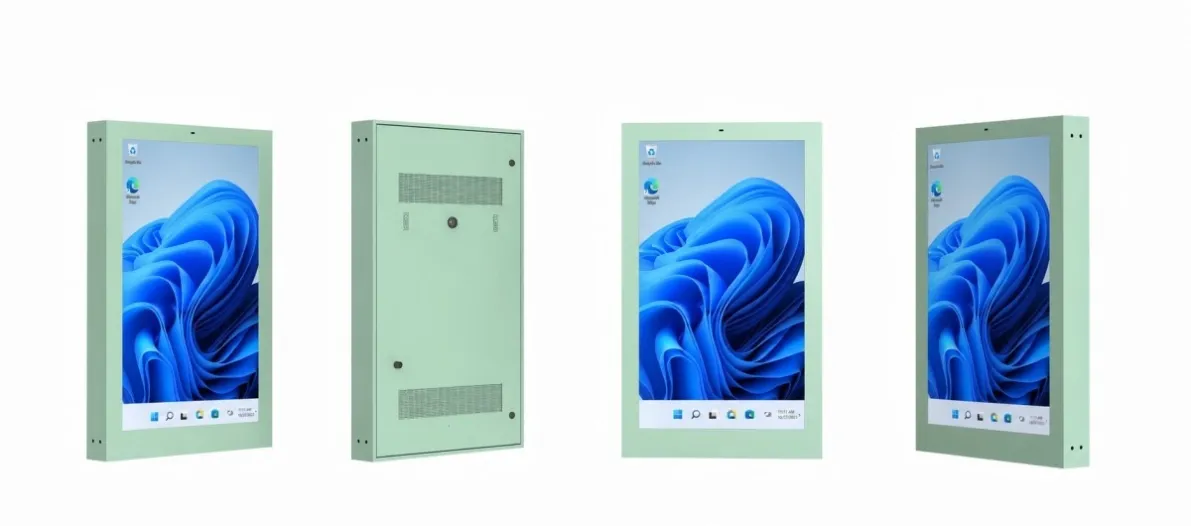

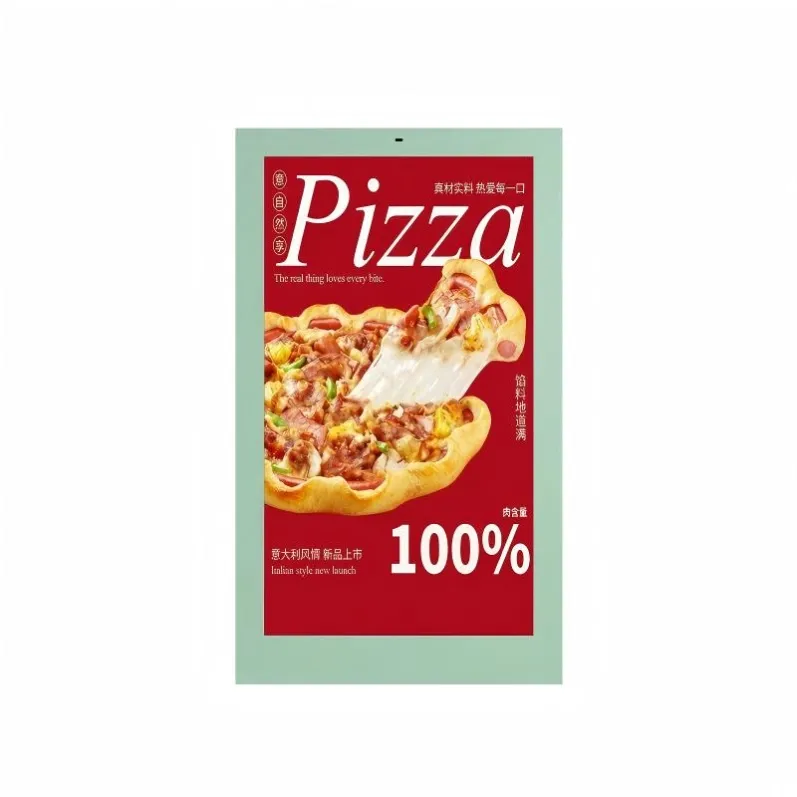

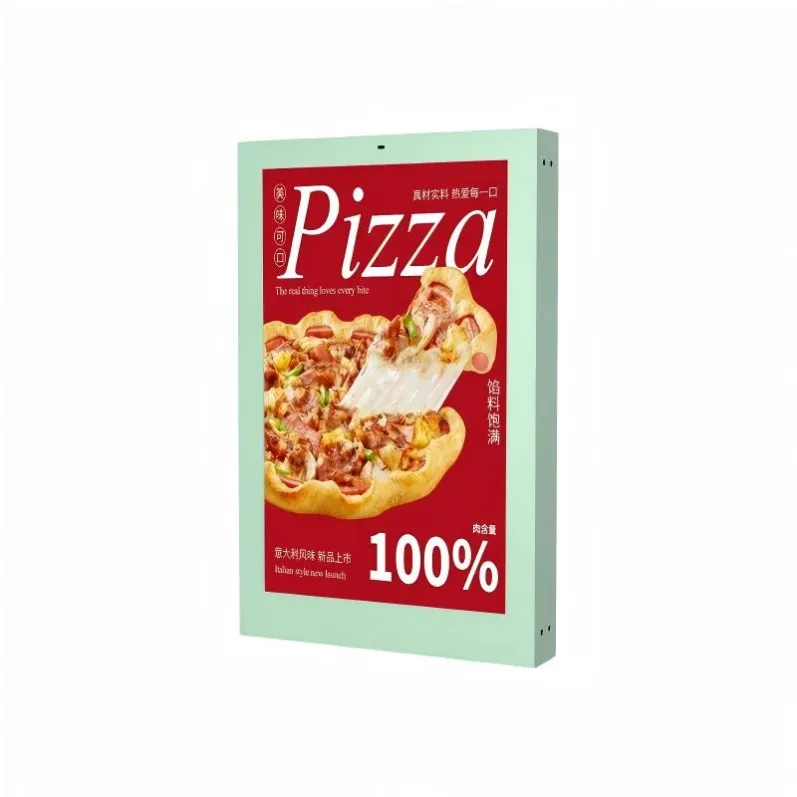

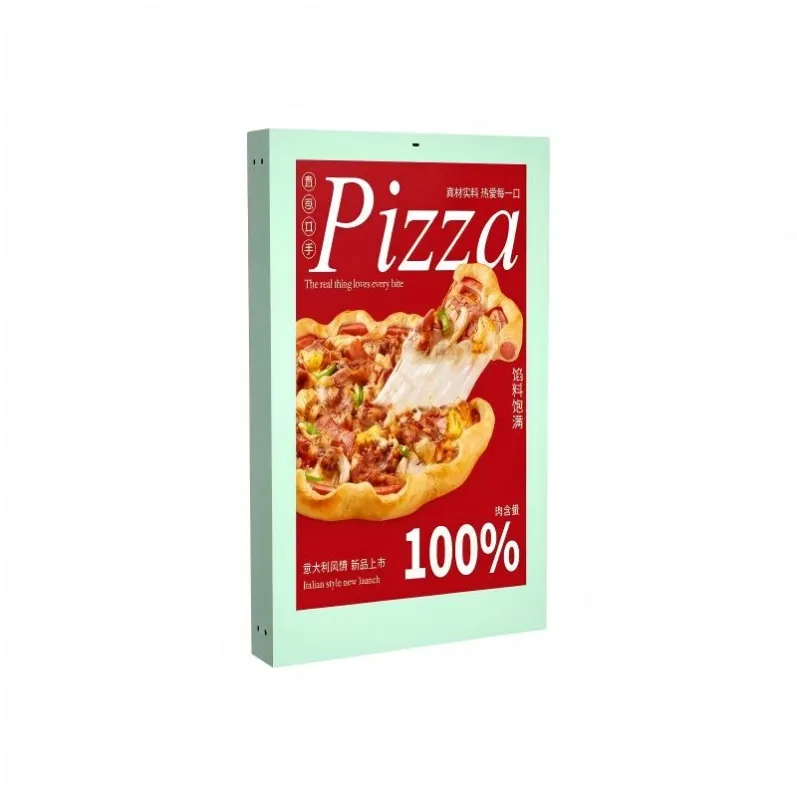

The product image shows a pale green rectangular frame around a portrait menu screen. There is no large freestanding base, making the unit suitable for integration into an outdoor menu-board structure or restaurant wall.
This 49 Inch Embedded Outdoor Advertising Display is specified with 2500-nit brightness, IP65 protection and built-in fan cooling.
49 Inch Outdoor portrait displays embedded digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | ELED |
Display size(mm) | 1074*604 | |
Display ratio | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 1500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||

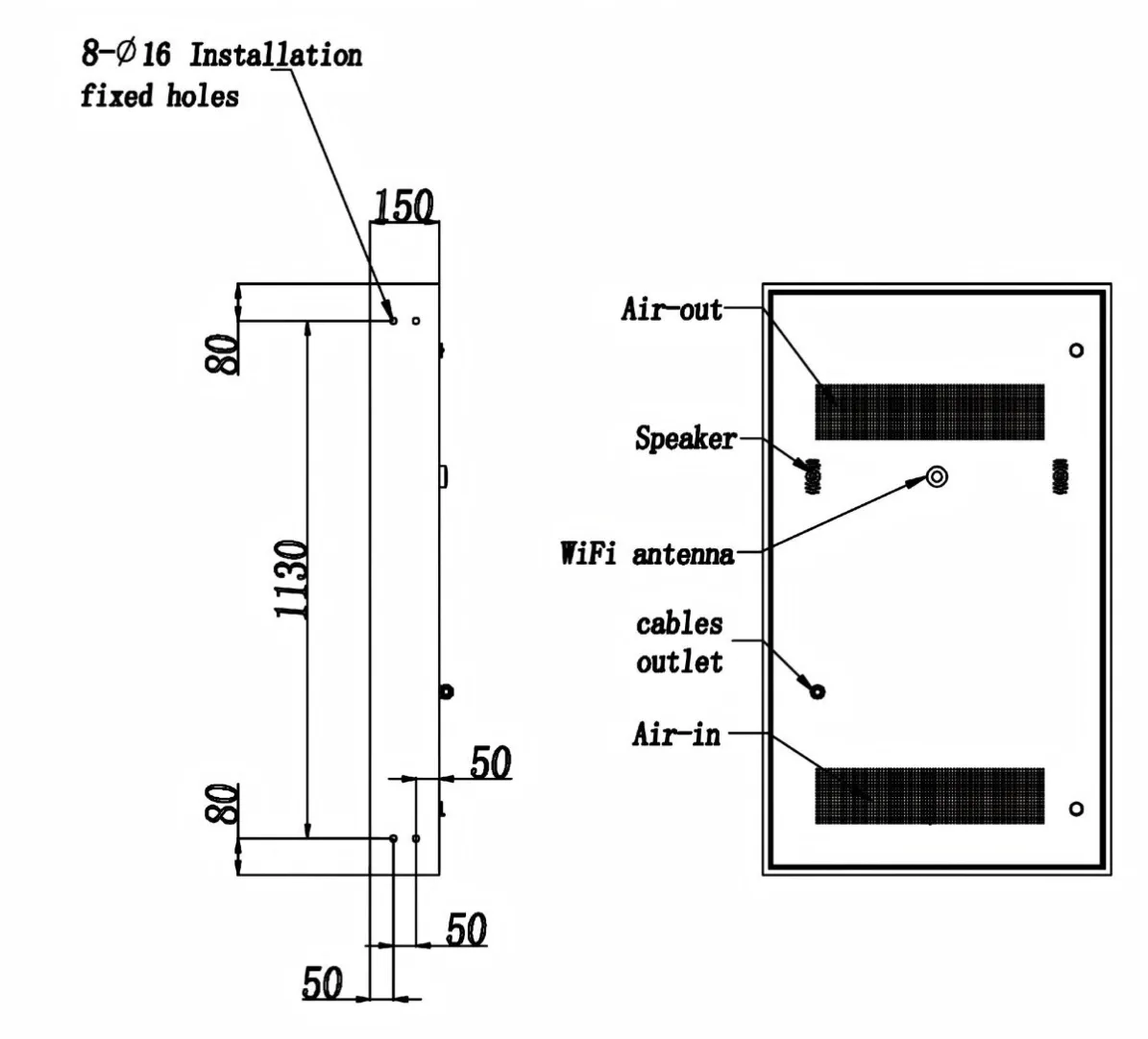

Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤400W | |

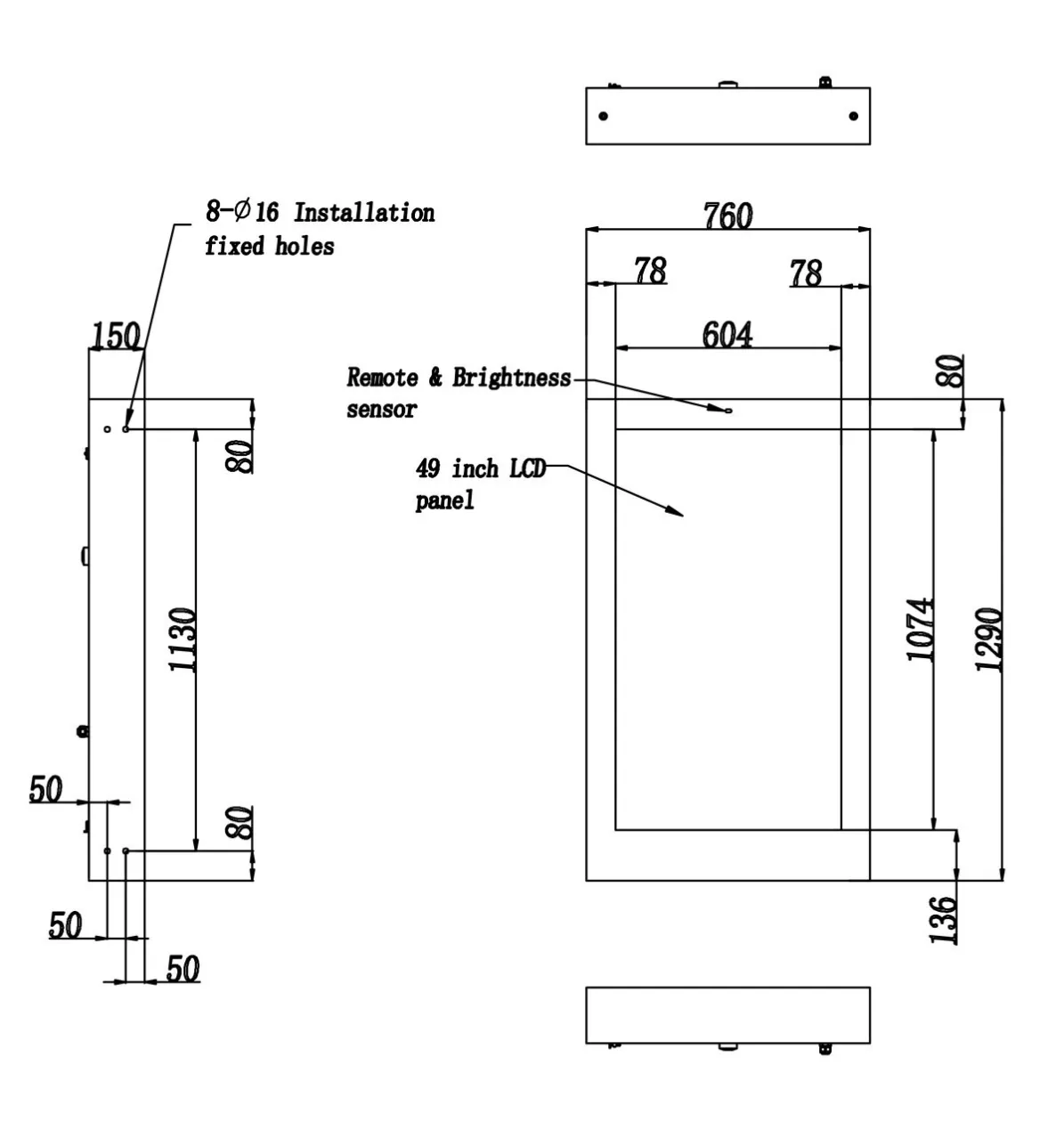

Mechanical Para | Machine seize H*W*D(mm) | 760*1230*150 |
Net weight(Kg) | 70 | |
Package size H*W*D(mm) | 960*1530*300 | |
Gross weight(Kg) | 100 | |
A Screen for Custom Menu Assemblies
An embedded display can be incorporated into a multi-screen drive-thru menu structure. Several units may be arranged to separate main products, meal combinations and promotional content.
The surrounding structure must provide correct support, drainage, ventilation and service access. A decorative menu-board frame should not cover the display’s cooling areas.
Because drivers view the screen from a fixed lane position, the content should be tested from the actual stopping distance.
Content for a 49-Inch Menu Screen
This size works well for one menu category, promotional panel or directional message. It may be too small for an entire complex restaurant menu when viewed from a vehicle.
Prices need strong contrast, and product names should remain short. Dark photographs should be adjusted for daylight presentation.
Exterior Installation
The pale green frame shown in the image may suit a specific restaurant brand, but final color availability requires confirmation.
The 2500-nit panel supports daylight visibility. IP65 protection helps defend against dust and water jets when the integrated installation preserves all seals.
Fan cooling requires a practical path for air movement and future cleaning. Service personnel should be able to remove or access the screen without dismantling the complete outdoor menu structure.
The 49 Inch Embedded Outdoor Advertising Display is a good fit for custom drive-thru assemblies where each screen has a defined content role.
