Built-in Air conditioner
49 Inch 2500 Nits IP65 Outdoor LCD Display Wall Mounted Air Conditioning for Drive Thru Menus
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Air Conditioner
Specifications
- SKU
- ZXTLCD-OUTAVW490G
49 Inch Air Conditioned Wall Mounted Outdoor LCD Display for Drive-Thru Menus
The product image shows a green-bordered cabinet displaying a restaurant promotion. Its compact portrait format and wall-mounted construction are suited to focused outdoor menu content rather than a long multi-category board.
This 49 Inch Air Conditioned Wall Mounted Outdoor LCD Display combines 2500-nit brightness, IP65 protection and built-in air conditioning.
49 Inch Outdoor Wall-Mounted Vertical Digital Signage with Air Conditioning specification | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | Direct LED type |
Display dimension （mm） | 1074*604 | |
Display ration | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 2000-2500cd/㎡ | |
Contrast | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Life time | 50000 hours | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Air conditioner for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust internal temperature |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | -40℃～55℃ |
Working humidity | 5%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | 670W | |
Mechanical parameters | Whole device dimension H*W*D | 1350*810*150mm |
Whole device net.weight(kg) | 105kg | |
Package dimension H*W*D(mm) | 1580*960*490mm | |
Gross packing(kg) | 135kg | |
A Focused Menu Panel
The screen can show one product category, promotional meal or vehicle-lane instruction. Several displays may be arranged as a coordinated outdoor menu system.
Customers view the screen from inside a vehicle, so content must be tested from the
actual lane position. Important details include:
- Large product names
- Clearly separated prices
- High-contrast food photography
- Short promotional text
- Visible lane directions
Green Frame and Restaurant Branding
The product image shows a dark-green enclosure. This can complement particular restaurant brands or outdoor architectural finishes.
The displayed color is not a guaranteed standard. Final coating and available customization should be confirmed.
Wall and Cooling Requirements
The exterior wall or menu structure must support the complete cabinet and bracket. Mounting height should align with the driver’s natural sightline.
Built-in air conditioning provides active thermal management. The cabinet needs service clearance and should not be enclosed behind another decorative shell.
IP65 protection helps defend against dust and water jets when cable entries and wall penetrations remain sealed.

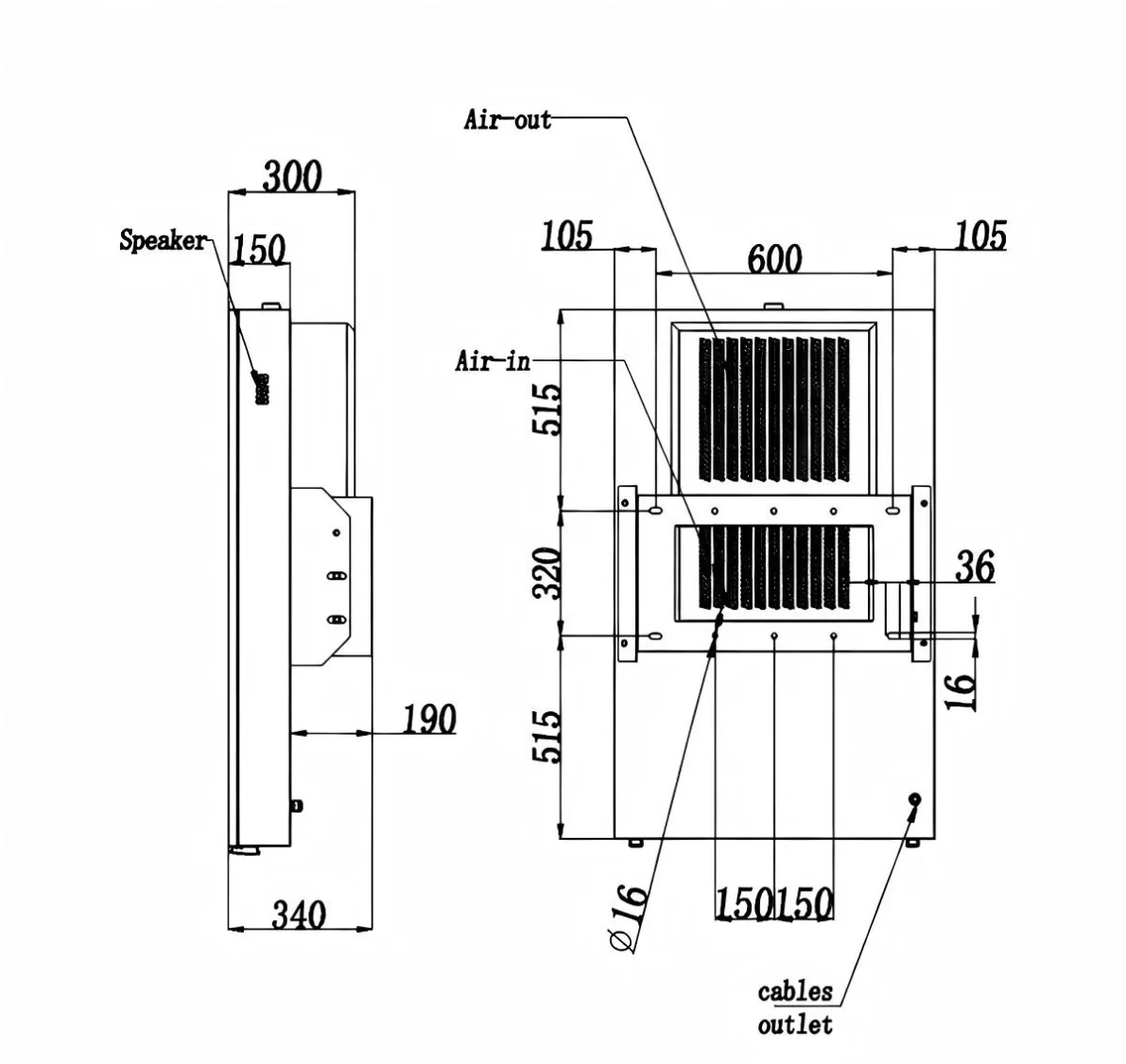

The design drawing of rear display
FAQ
Can this screen show a complete drive-thru menu?
It is better used for a focused menu category or promotion. Complex menus may require several screens or a larger format.
Can content change by time of day?
Yes, if a compatible media player or CMS with scheduling is selected.
The 49 Inch Air Conditioned Wall Mounted Outdoor LCD Display offers a compact outdoor menu component for restaurants that require active cabinet cooling.
