Built-in Fan Version
43 Inch 2500 Nits IP65 Outdoor Digital Signage Embedded Fan Cooling for Transit Hub Ads
Backlight:LED backlight Menu language:Mutil Language Place of Origin:CN;GUA Viewing Angle:178°/178°
Specifications
- SKU
- ZXTLCD-OUTFHE430BRONN
43 Inch 2500 Nits IP65 Outdoor Digital Signage Embedded Fan Cooling for Transit Hub Ads
43 Inch Embedded Outdoor Digital Signage for Transit Hubs
An embedded display allows architects and transport operators to integrate digital media into a wall, shelter, ticketing structure or custom information unit. This 43 inch embedded outdoor digital signage is designed for transit-hub advertising and public communication without adding a separate floor-standing kiosk to the passenger area.
The published configuration includes LED backlighting, multilingual menu support and a 178° horizontal and vertical viewing angle.
43 Inch Outdoor landscape embedded digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | ELED |
Display size(mm) | 941*530 | |
Display ratio | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 1500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||

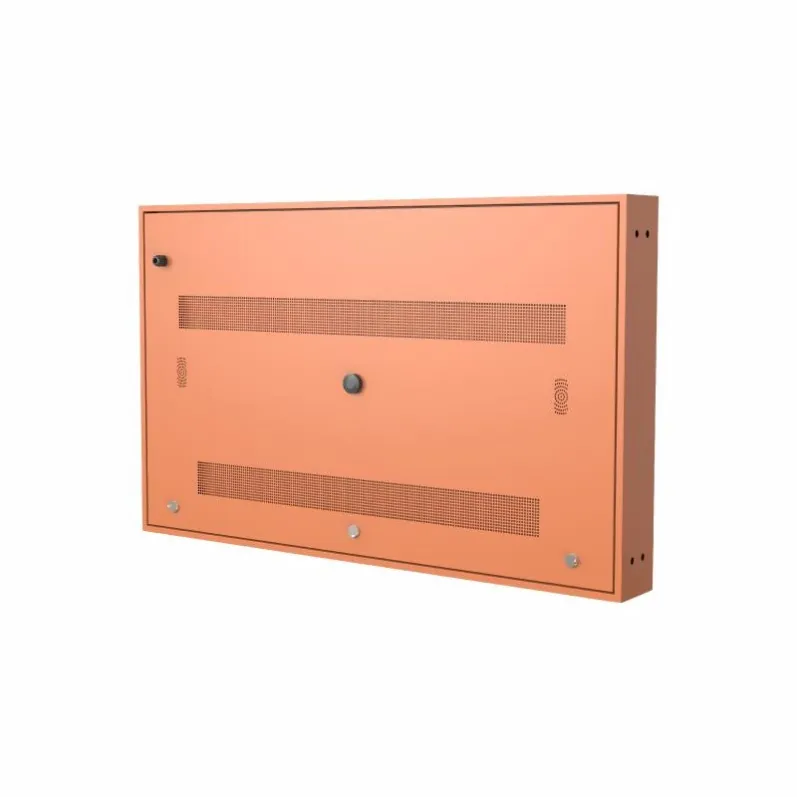

Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤300W | |

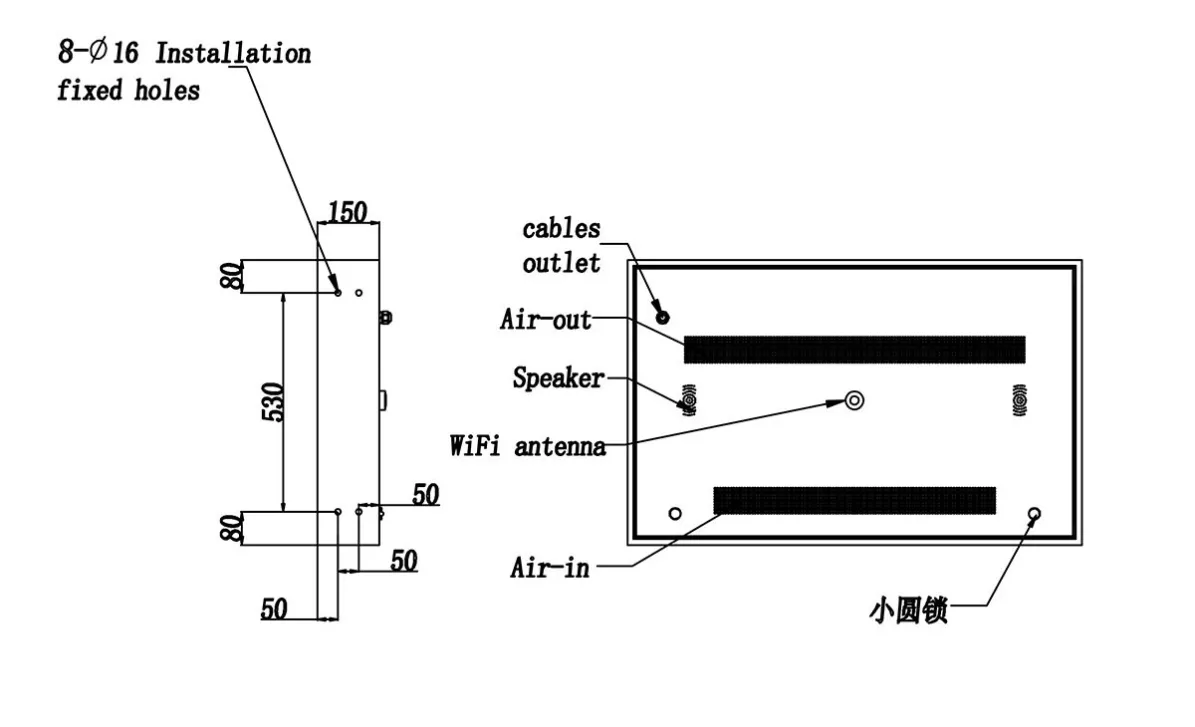

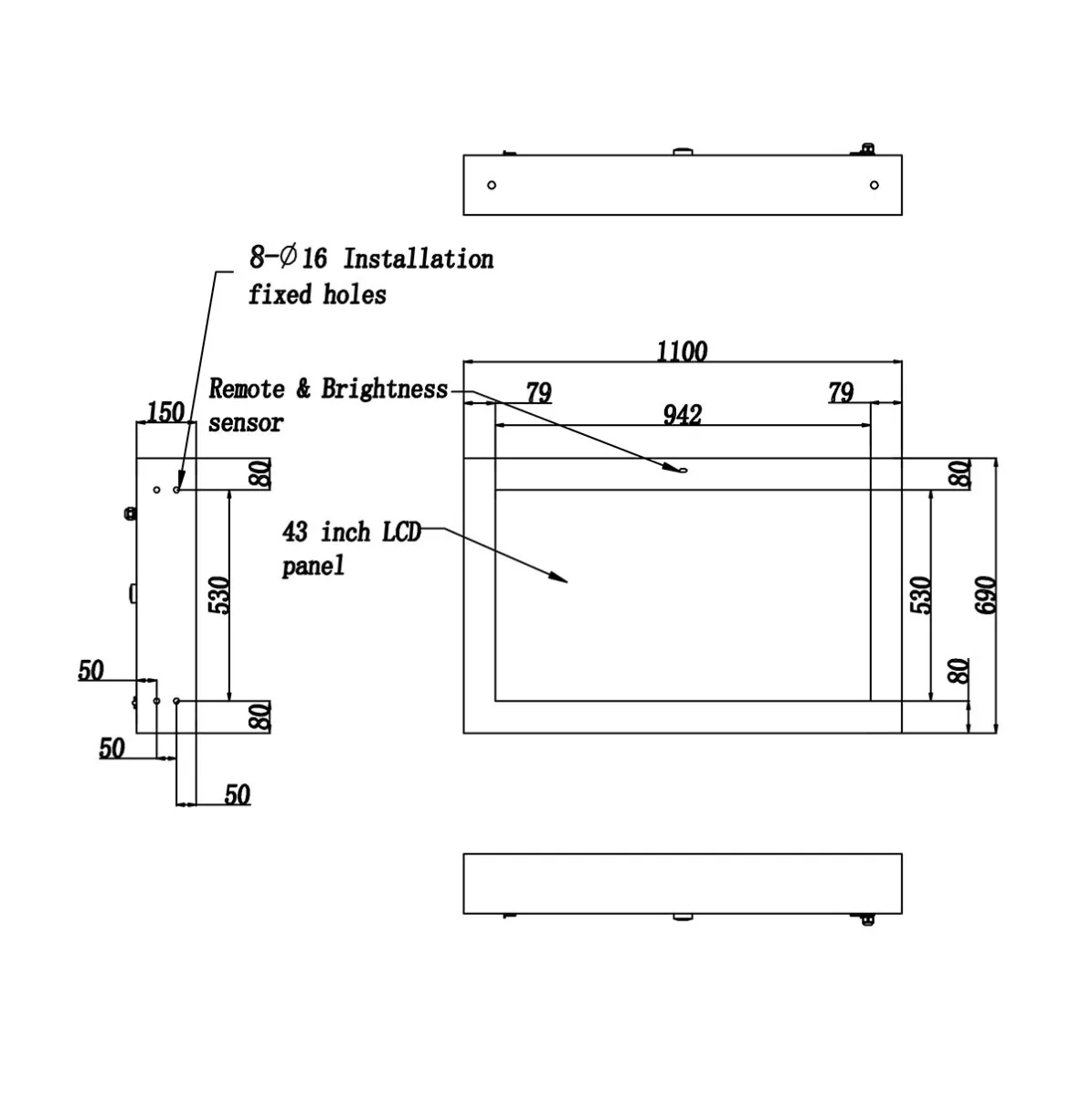

Mechanical Para | Machine seize H*W*D(mm) | 690*1100*150 |
Net weight(Kg) | 65 | |
Package size H*W*D(mm) | 890*1400*300 | |
Gross weight(Kg) | 90 | |
Embedded Installation Changes the Purchasing Process
A floor-standing kiosk arrives as a largely self-contained unit. An embedded screen depends much more heavily on the surrounding structure.
The integrator must coordinate the opening dimensions, supporting frame, ventilation path, cable entry and service access. These items should be reviewed before the wall, shelter or cladding is manufactured.
A front opening that matches only the visible screen size may leave no space for installation tolerances or maintenance. Likewise, an attractive flush finish can cause problems if technicians cannot remove the display or open the service area later.
Maintaining Airflow Inside a Custom Structure
Fan cooling moves heat away from the panel and electronics, but the surrounding structure must allow that heat to escape. The intake and exhaust should not circulate hot air inside a closed cavity.
Engineers should consider:
Ventilation opening locations;
Protection against water entering the cavity;
Space around the cooling system;
Filter replacement access;
Heat produced by nearby equipment;
Emergency shutdown or temperature alarms.
The screen manufacturer and installation contractor should agree on these responsibilities before production.
Advertising at Passenger Decision Points
A 43-inch display fits well near entrances, ticketing areas, platform access points and waiting shelters. Campaigns can be selected according to passenger context rather than showing the same playlist throughout the hub.
Retail promotions may be suitable near station exits, while route information and service announcements should receive priority near platforms. A multilingual interface or menu can support international transport locations, although the displayed content and the device’s internal menu language should be planned separately.
The 178°/178° viewing angle supports visibility when passengers approach from different directions.
Protecting the Finished Installation
An embedded 43 inch outdoor digital signage unit should appear visually coordinated with the surrounding structure, but the installation must also protect the electronic components.
Site-made joints, access panels and cable openings should prevent water and dust from reaching the internal cavity. Drainage paths should direct moisture away from the screen rather than allowing it to collect below the enclosure.
If the display is installed in a public area, the front surface and mounting system should also be reviewed for impact resistance and tamper protection.
Information Required Before Customization
Provide the architectural drawing, opening dimensions, screen orientation, ventilation design and proposed access method. The project team should also confirm the media player, network connection, content-management platform and required signal inputs.
This 43 inch embedded outdoor digital signage is best suited to transport projects that want high-brightness digital media integrated into existing infrastructure while keeping pedestrian areas free from additional floor-standing equipment.
