Built-in Air conditioner
32 Inch Weatherproof Digital Signage with 2500 Nits IP65 Wall Mounted Design for Public Information
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Air Conditioner
Specifications
- SKU
- ZXTLCD-OUTAVW320B
32 Inch Air Conditioned Wall Mounted Weatherproof Digital Signage for Public Service Points
The product image shows a monochrome information layout inside a grey or black rectangular frame. Its compact wall-mounted form is intended for close-range reading rather than long-distance advertising.
This 32 Inch Air Conditioned Wall Mounted Weatherproof Digital Signage model is specified with 2500-nit brightness, IP65 protection and built-in air conditioning.
32 Inch Outdoor Wall-Mounted Vertical Digital Signage with Air Conditioning specification | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size(mm) | 697*392 | |
Display ratio | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Air conditioner for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust internal temperature |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | -40℃～55℃ |
Working humidity | 5%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | 420W | |
Mechanical parameters | Whole device dimension H*W*D | 960*560*150mm |
Whole device net.weight(kg) | 70kg | |
Package dimension H*W*D(mm) | 1190*710*470mm | |
Gross packing(kg) | 90kg | |
Close-Range Outdoor Information
Possible applications include exterior government-service windows, outdoor ticket
counters, park entrances and visitor-center walls.
A 32-inch screen can clearly present:
- Opening hours
- Entrance instructions
- Queue information
- Short public notices
- Payment guidance
- Accessibility directions
Long regulations and detailed maps should be moved to another information source.

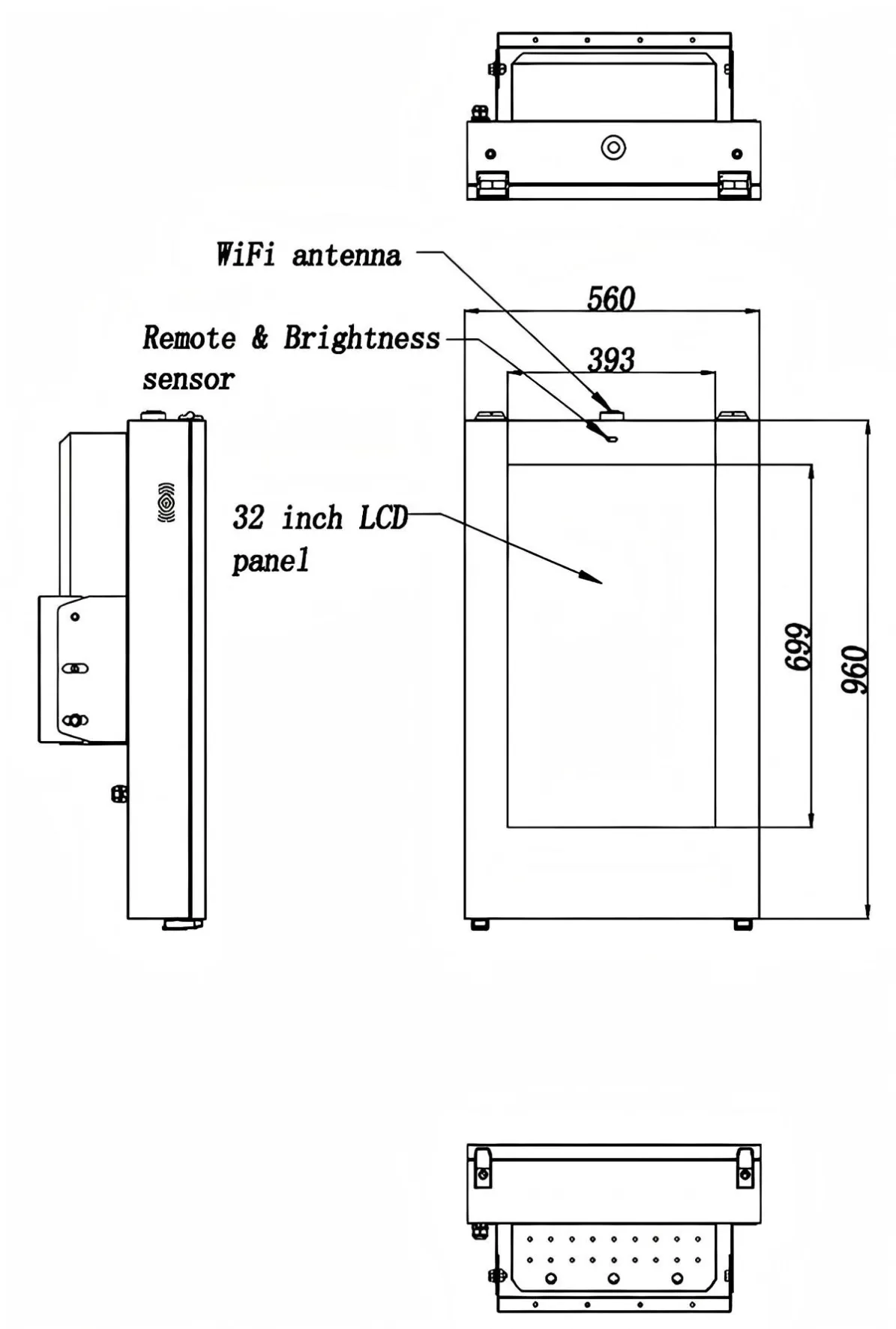

Cabinet Appearance
The neutral grey-and-black frame shown in the image can integrate into different exterior façades without dominating the architecture.
The cabinet will still be deeper than an indoor monitor because it contains outdoor protection and cooling components. Its projection from the wall must be included in the installation drawing.

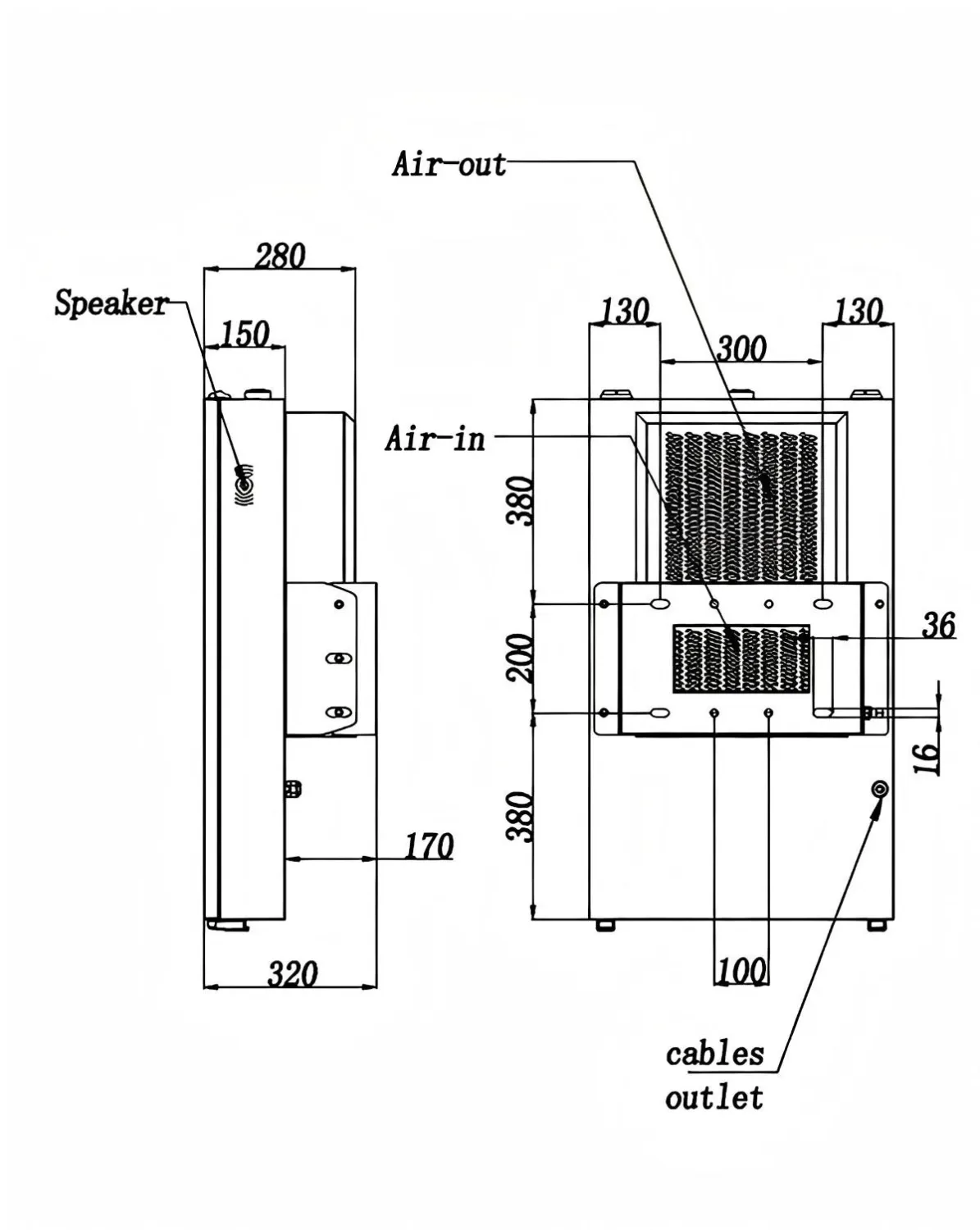

Structural and Thermal Planning
The receiving wall needs suitable structural support. Cable penetrations should be sealed and protected against tampering.
Built-in air conditioning requires maintenance access. Its actual cooling specifications should be verified rather than inferred from the product category.
The 32 Inch Air Conditioned Wall Mounted Weatherproof Digital Signage model provides an actively cooled outdoor information screen for locations where viewers stand close and ground space must remain clear.
