Built-in Fan Version
32 Inch Weatherproof Digital Signage with 2500 Nits IP65 Embedded Design for Drive Thru Menus
LOGO:Customerize HS code:8528591090 Backlight:LED backlight Menu language:Mutil Language
Specifications
- SKU
- ZXTLCD-OUTFHE320P
32 Inch Embedded Drive Thru Display for Modular Menu Boards
Not every restaurant needs one oversized digital menu. A modular system built from several smaller screens can be easier to organize and update. This 32 Inch Embedded Drive Thru Display is designed for integration into a larger outdoor menu-board structure rather than installation as a separate floor-standing kiosk.
The product image shows two compact landscape screens positioned side by side. This arrangement can divide menu content into logical groups without forcing the customer to search through one crowded layout.
32 Inch Outdoor landscape embedded digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size(mm) | 697*392 | |
Display ratio | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |

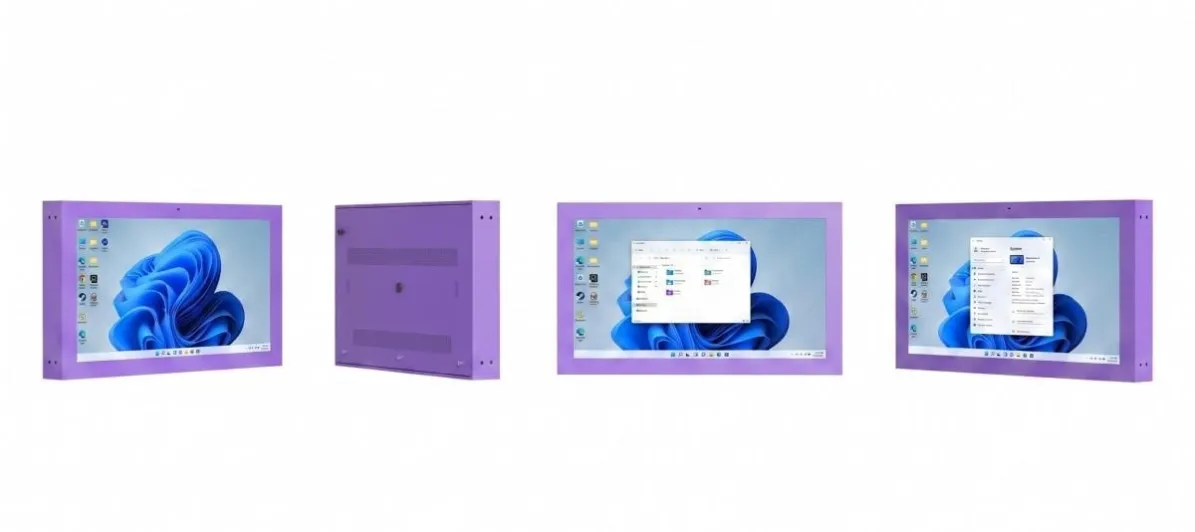

Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤230W | |

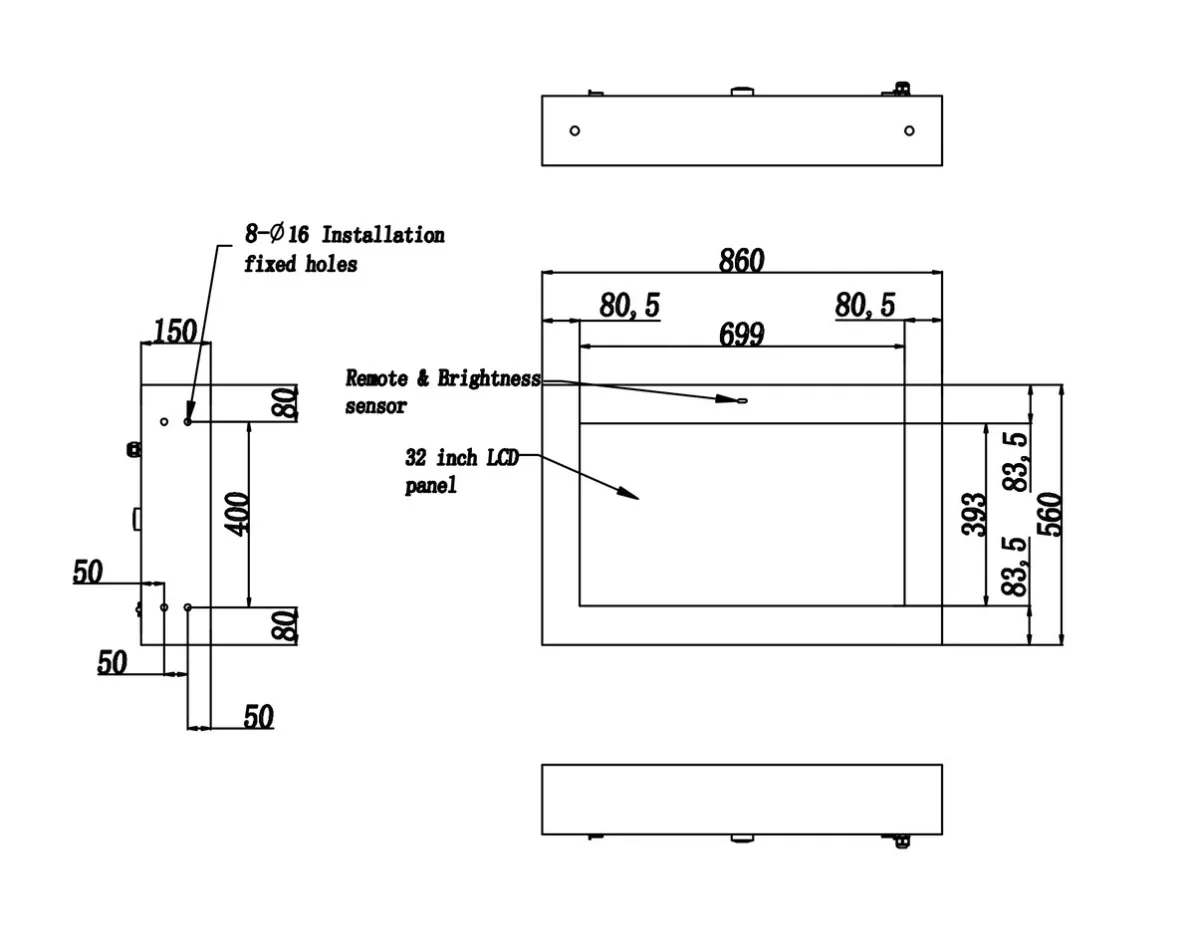

Mechanical Para | Machine seize H*W*D(mm) | 560*860*150 |
Net weight(Kg) | 40 | |
Package size H*W*D(mm) | 760*1160*300 | |
Gross weight(Kg) | 60 | |
Build the Menu in Sections
A multi-screen menu may assign one panel to meals and another to drinks, upgrades or limited-time promotions. If a third unit is added, it can carry breakfast content or high-margin recommendations.
The advantage is operational flexibility. A restaurant can change one content section without rebuilding the entire menu presentation.
For clear ordering, every screen should use:
- Consistent fonts and price formatting
- Matching background colours
- The same product-image scale
- Visible category headings
- Limited animation during ordering
Embedded Installation Requirements
The 32 Inch Embedded Drive Thru Display needs a correctly sized opening, structural support and a planned maintenance route. The visible front should align evenly with the surrounding menu-board surface.

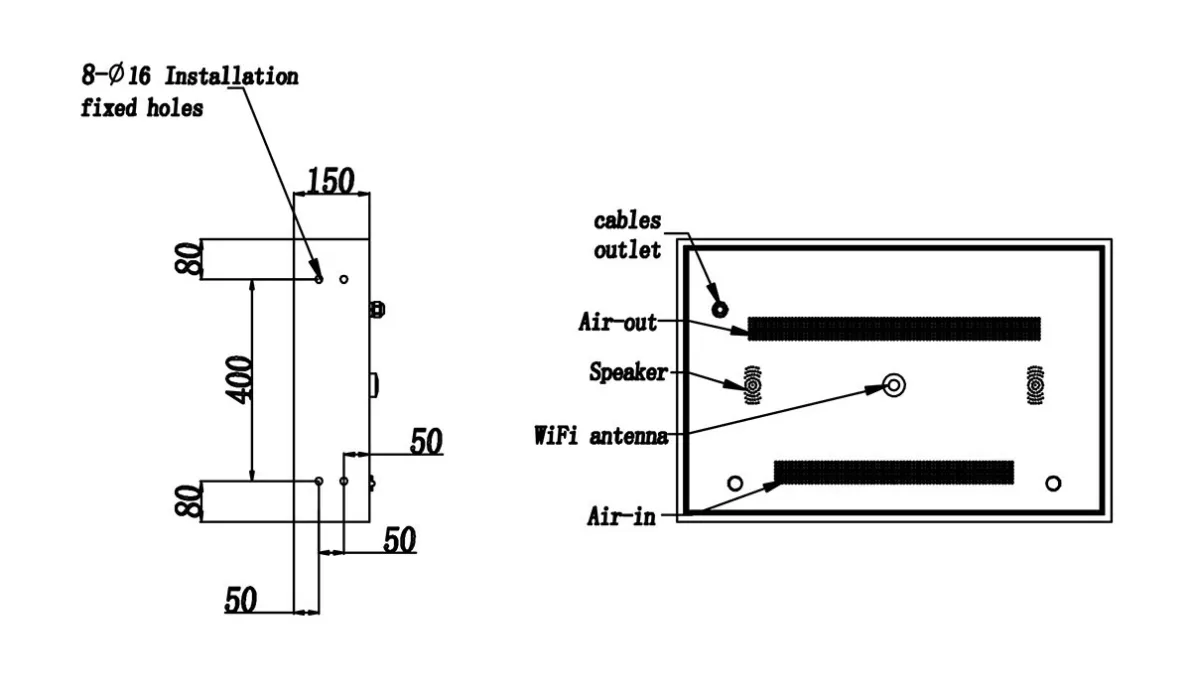

Installation drawings should identify:
- Display opening dimensions
- Cabinet depth
- Rear or front service access
- Cable-entry positions
- Drainage around the host structure
- Fan-cooling clearance
A tight opening without ventilation or maintenance space can make future servicing unnecessarily difficult.
Outdoor Viewing from a Vehicle
The 2500-nit panel supports daylight visibility, while IP65 protection is intended for outdoor dust and water exposure. Screen angle must be checked from the driver’s stopping position rather than from directly in front of the menu board.
The 32 Inch Embedded Drive Thru Display works best when each panel has a specific menu role. Used this way, several compact screens can create a clearer ordering experience than one display filled with too many products.
